Instrument Cluster: Notes

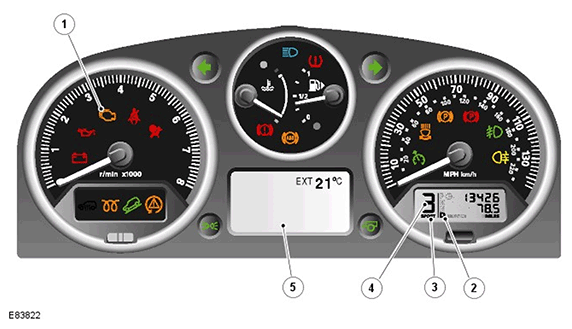

| ITEM | DESCRIPTION |
|---|---|
| 1 | Malfunction Indicator Lamp (MIL) |
| 2 | P R N D display |
| 3 | Sport mode display |
| 4 | 'CommandShift™' transmission status display |
| 5 | Message center |
The instrument cluster is connected to the TCM via the CAN. Transmission status is transmitted by the TCM and displayed to the driver on one of two displays in the instrument cluster.
For additional information, refer to: Instrument Cluster
