LR4 5.0L

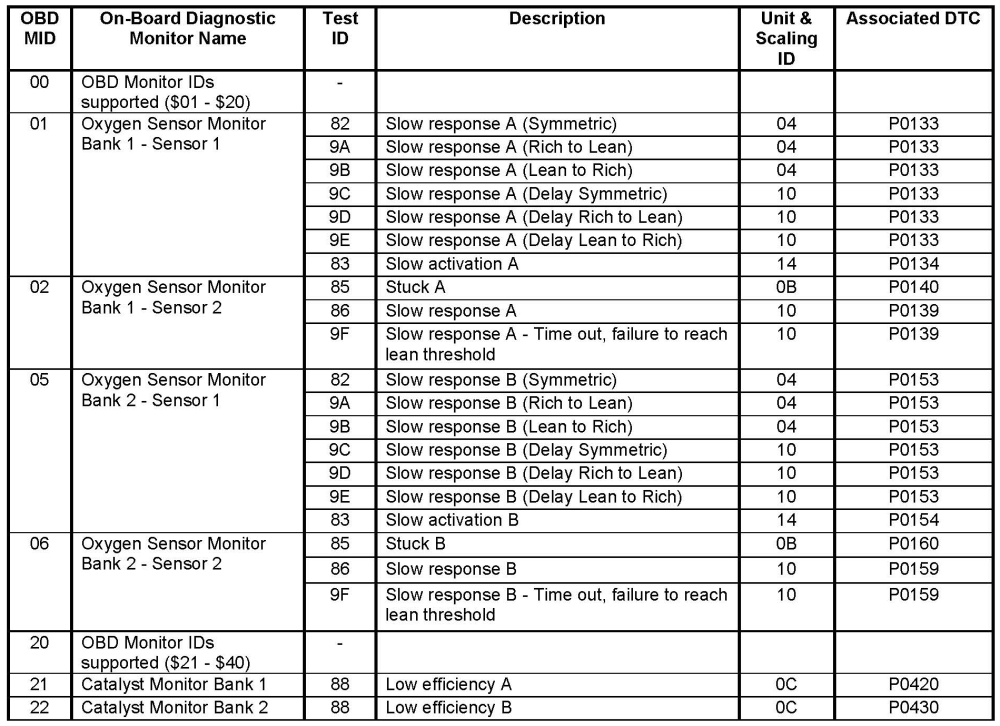

Fig 1: Mode 6 Data - LR4 5.0L (1 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

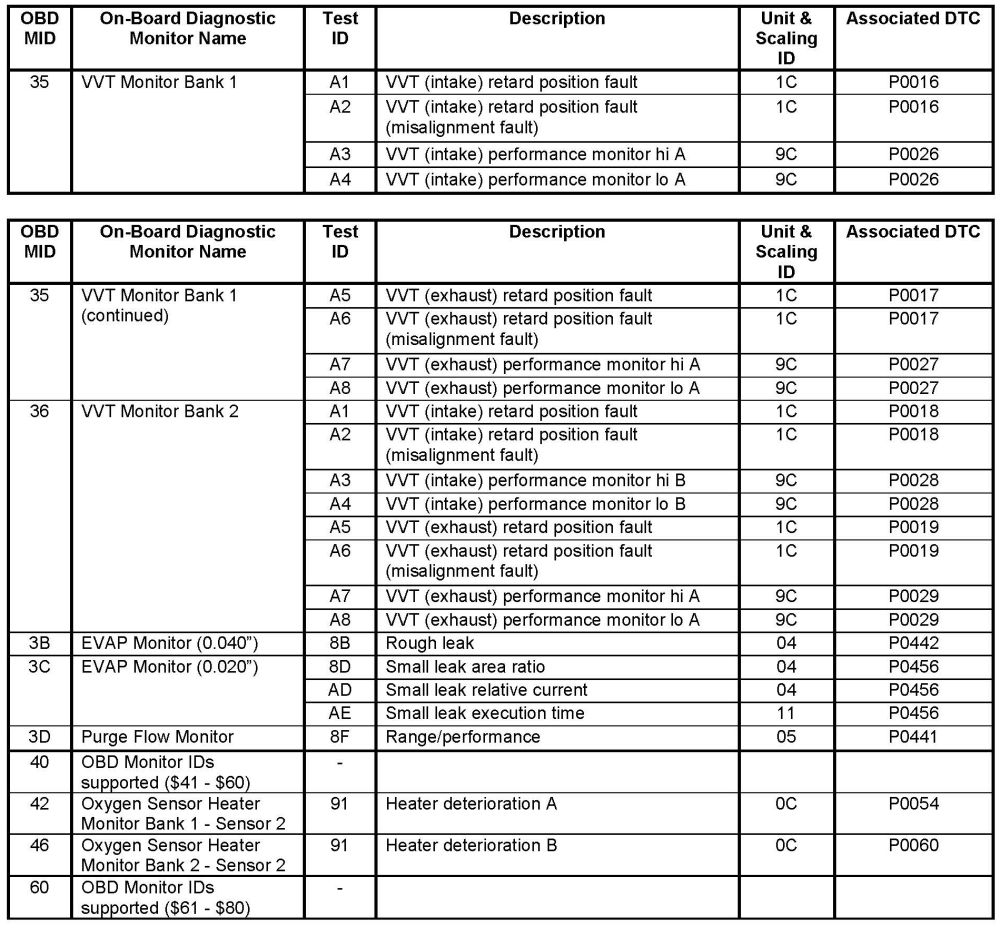

Fig 2: Mode 6 Data - LR4 5.0L (2 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

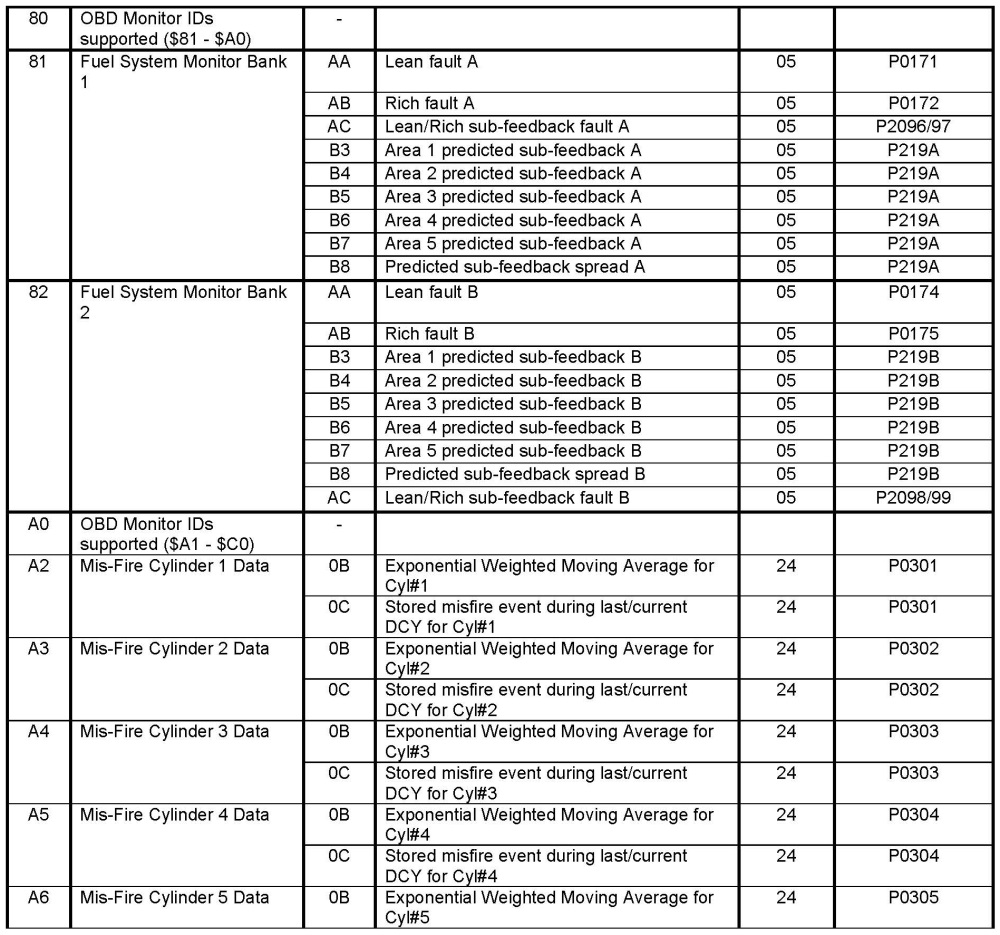

Fig 3: Mode 6 Data - LR4 5.0L (3 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.

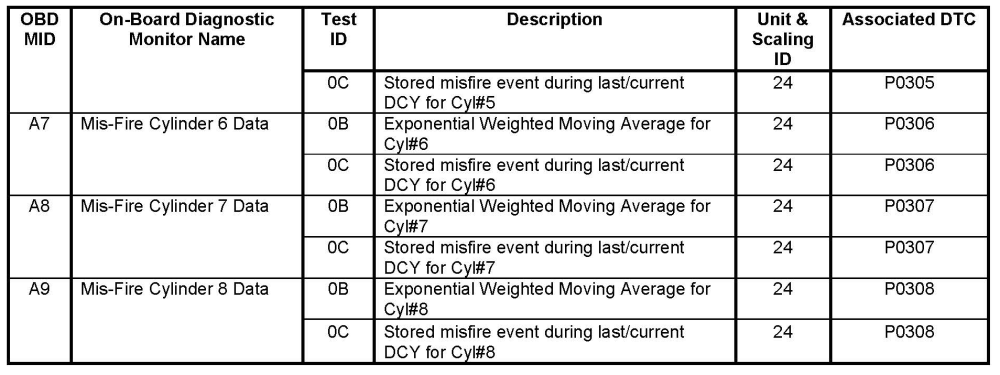

Fig 4: Mode 6 Data - LR4 5.0L (4 Of 4)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
