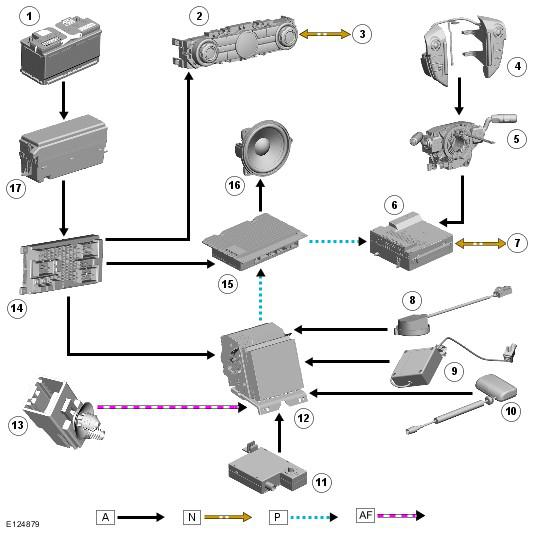

Control Diagram
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= Medium Speed CAN; P
= MOST; AF
= Firewire.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Integrated control panel, incorporating navigation switch |
| 3 | Medium speed CAN bus connection to other vehicle systems |
| 4 | Steering wheel switches |
| 5 | Clockspring |
| 6 | IHU (integrated head unit) |
| 7 | Medium speed CAN bus connection to other vehicle systems |
| 8 | Microphone - voice recognition |
| 9 | GPS antenna |
| 10 | VICS beacon antenna - Japan only |
| 11 | 'TMC (traffic message channel tuner' or 'VICS receiver - Japan only' |
| 12 | TSD (touch screen display) |
| 13 | Navigation update socket |
| 14 | CJB (central junction box) |
| 15 | Power amplifier |
| 16 | Speakers |
| 17 | EJB (engine junction box) |
