Removal And Installation: Removal

  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Remove the wheel and tire.

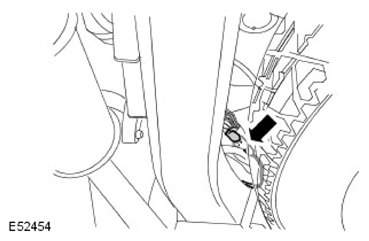

  3. G11597371

    Disconnect the anti-lock brake system (ABS) sensor electrical connector.

    • Release the wiring harness retaining clip.

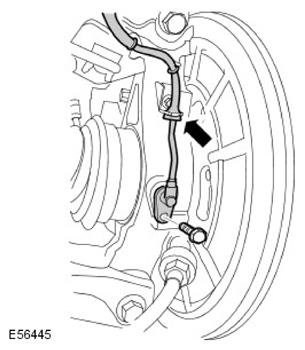

  4. G11597372

    Release the wheel speed sensor from the wheel knuckle.

    • Release the wiring harness.
    • Remove the retaining bolt.

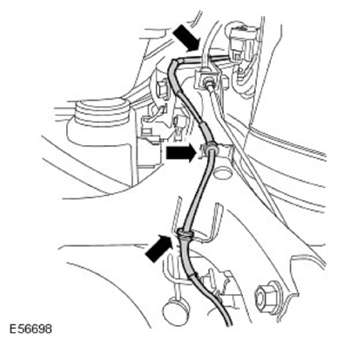

  5. G11597373

    Remove the wheel speed sensor.

    • Release the wiring harness from the 4 clips.
