Climate Control System May Not Achieve Selected Temperature (LTB00963NAS1)
Publication date: 2016-06-21Reference number: LTB00963NAS1
CLIMATE CONTROL SYSTEM MAY NOT ACHIEVE SELECTED TEMPERATURE
TECHNICAL SERVICE BULLETIN
Reference Number(s): LTB00963NAS1, Date of Issue:
June 21, 2016
| LAND ROVER: | 2014-2016 LR4 (LA) |
| SECTION: | 412-04 |
| AFFECTED VEHICLES: | LR4 (LA) Model Year: 2014-2016 VIN: 699716-828071 Assembly Plant: Solihull |
MARKETS
NAS
CONDITION SUMMARY
Situation: The climate control system may not be able to achieve the selected temperature, failing to meet the desired expectation.
Cause: This may be caused by a lack of sealing between the duct behind the grill and the face of the sensor facial, leading to the In-Vehicle Temperature Sensor mis-reading temperatures.
Action: Should a customer express this concern, follow the Service Instruction below.
PARTS
PARTS INFORMATION
| ETD500550 | Interior Temperature Sensor Insulator Foam | 1 |
TOOLS
Refer to Workshop Manual for any required special tools.
WARRANTY
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
NOTE:
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Interior Temperature Sensor Insulator Foam - Install | 82.20.71 | 0.4 | 42 | ETD500550 |
NOTE:
Normal Warranty procedures apply.
SERVICE INSTRUCTION
- Remove the instrument panel center finisher (see TOPIx Workshop Manual section 412-04: Climate Control System - Control Components - In-Vehicle Temperature Sensor - steps 1-7).

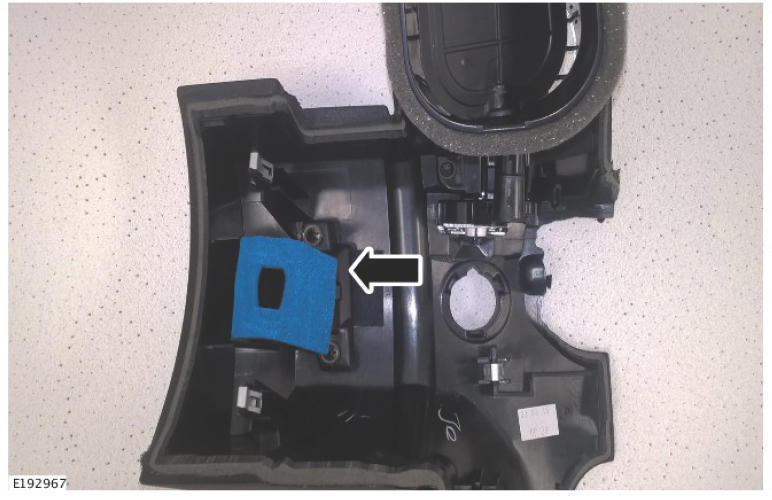

- Install the interior temperature sensor insulator foam to the duct behind the sensor grille.NOTE: The interior temperature sensor insulator foam must cover the edge around the duct (√).

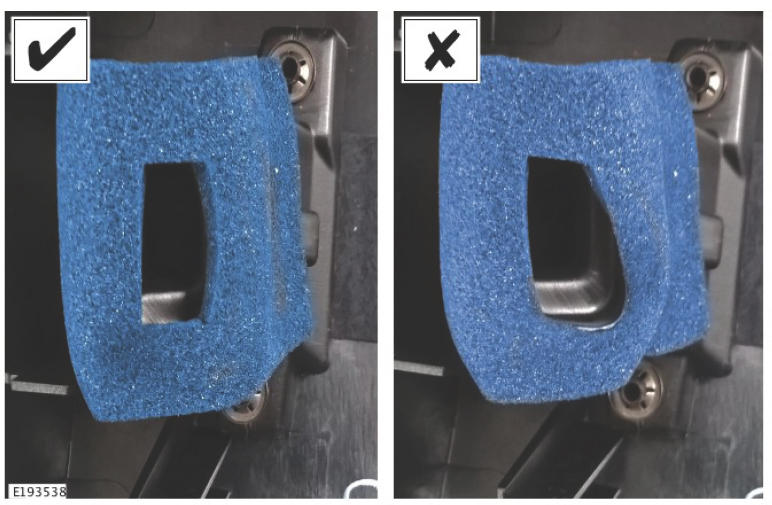

- Make sure the interior temperature sensor insulator foam is installed correctly (√) as shown.
- Install the instrument panel center finisher (see TOPIx Workshop Manual section 412-04: Climate Control System - Control Components - In-Vehicle Temperature Sensor - steps 7-1).
