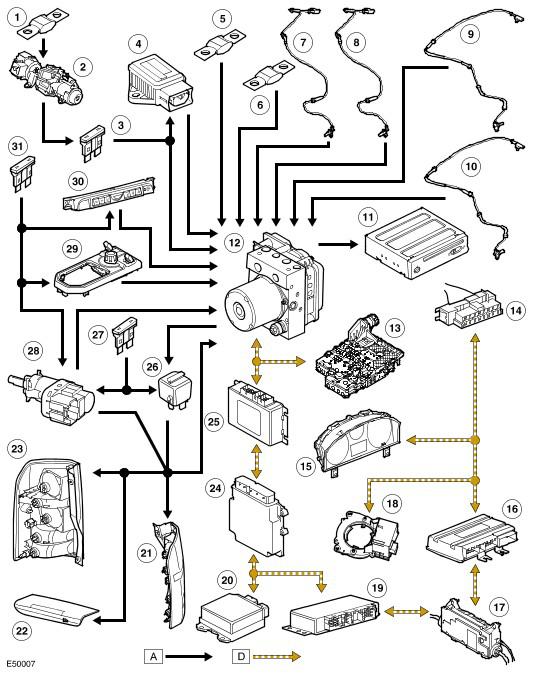

Anti-Lock Control Diagram
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connections; D = High speed CAN bus
| Item Number | Description |
|---|---|
| 1 | Fble link 11E, battery junction box (BJB)usible link 11E, |
| 2 | Ignition switch |
| 3 | Fuse 37P, CJB |
| 4 | Yaw rate and lateral acceleration sensor |
| 5 | Fusible link 9E, BJB |
| 6 | Fusible link 23E, BJB |
| 7 | Front wheel speed sensor |
| 8 | Front wheel speed sensor |
| 9 | Rear wheel speed sensor |
| 10 | Rear wheel speed sensor |
| 11 | Navigation computer |
| 12 | ABS module |
| 13 | Transmission control module |
| 14 | Diagnostic socket |
| 15 | Instrument cluster |
| 16 | Air suspension control module |
| 17 | Parking brake module |
| 18 | Steering angle sensor |
| 19 | Rear differential control module |
| 20 | Restraints control module |
| 21 | Left stoplamp |
| 22 | Center stoplamp |
| 23 | Right stoplamp |
| 24 | ECM |
| 25 | Transfer box control module |
| 26 | HDC relay (non-serviceable, integrated into CJB) |
| 27 | Fuse 15P, CJB |
| 28 | Stoplamp switch |
| 29 | HDC switch |
| 30 | DSC switch |
| 31 | Fuse 66P, CJB |
