Anti-Lock Brake System Control Module - RHD: Installation

NOTE: This step is only required if previously removed.

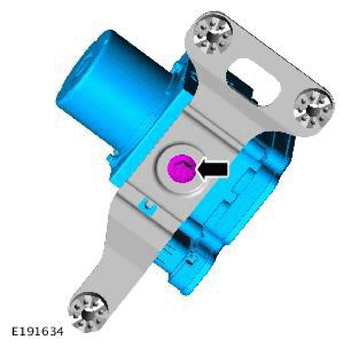

Install the Anti-lock Brake System (ABS) module onto the bracket.

Torque: 27 Nm

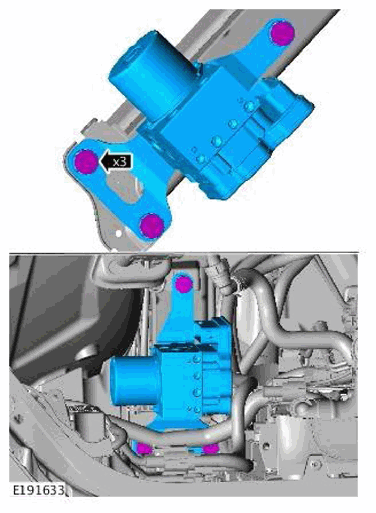

Install the ABS module.

Torque: 10 Nm

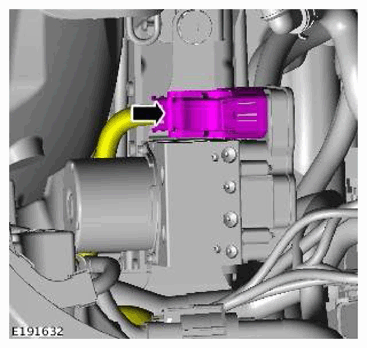

Connect the electrical connector.
CAUTION:
- Care must be taken not to bend or damage the brake pipes during installation.
- Following installation a visual inspection must be completed to make sure the brake pipe(s) are routed and secured correctly. The brake pipe(s) must not touch the body or surrounding components
- Be prepared to collect escaping fluid.

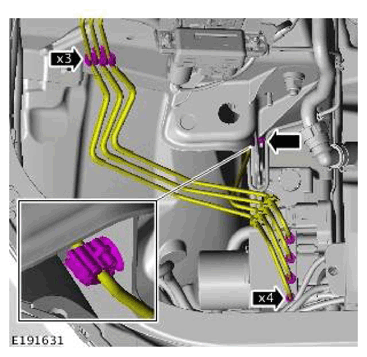

Install the brake pipes.

Torque: 15 Nm
CAUTION:
- Care must be taken not to bend or damage the brake pipes during installation.
- Following installation a visual inspection must be completed to make sure the brake pipe(s) are routed and secured correctly. The brake pipe(s) must not touch the body or surrounding components
- Be prepared to collect escaping fluid.

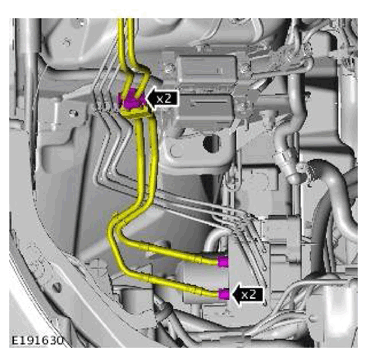

Install the brake pipes.

Torque: 15 Nm

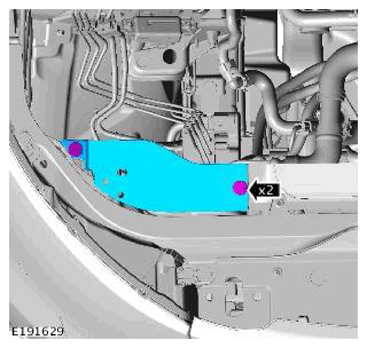

Install the cover.
- This step is only required if previously removed.
- Install the air cleaner.
  Refer to: RIGHT AIR CLEANER .

  Refer to: RIGHT AIR CLEANER .
Install the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL .

Refer to: ENGINE COVER - TDV6 3.0L DIESEL .

Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Connect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Bleed the brake system.
Refer to: BRAKE SYSTEM BLEEDING FLOATING CALIPER .
