Electronically Controlled Transmission (Mounted) Sensor

Jack up front wheel. Connect ohmmeter to transmission speed sensor terminal. Spin front wheel and ensure continuity deflects between zero (0) and infinity. If operation is not as specified, replace transmission speed sensor.

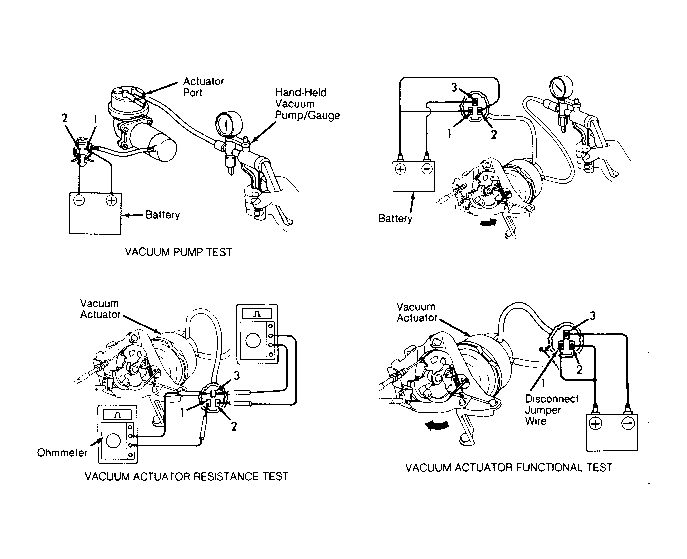

Fig 1: Testing Vacuum Actuator & Vacuum Pump
G91G02752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
