Stoplight Switch

Disconnect stoplight switch connector. Use an ohmmeter to check continuity between stoplight switch terminals. See Fig 1. If continuity is not as specified, replace switch.

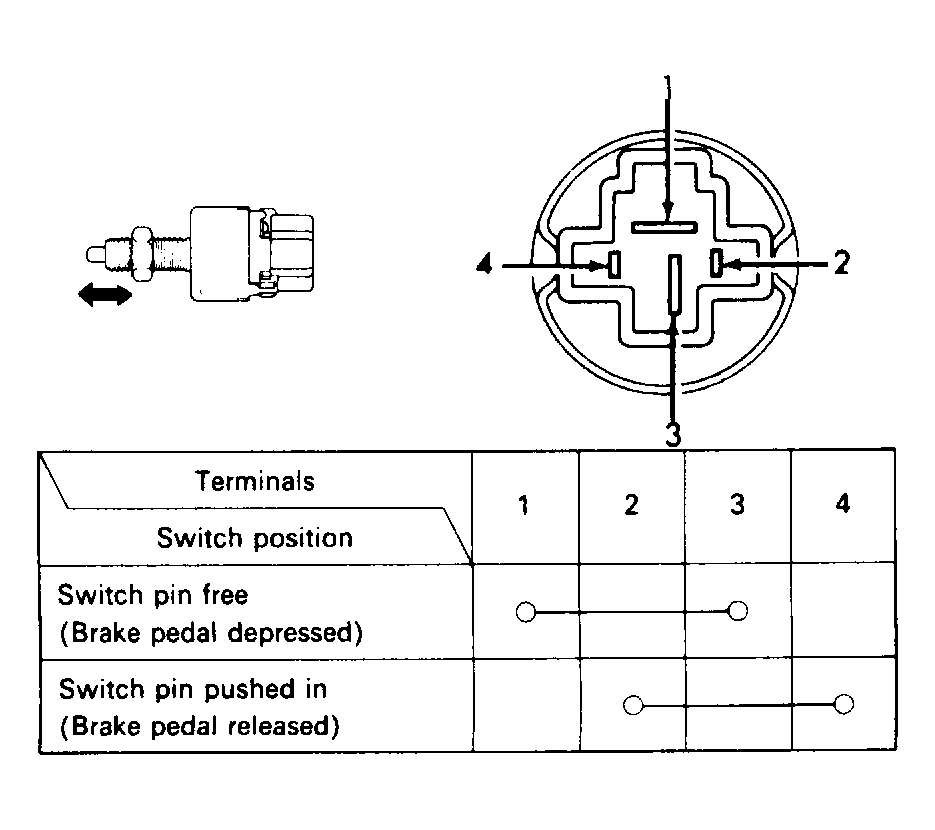

Fig 1: Testing Stoplight Switch
G91E02751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
