Anti-Lock Brake System: Wiring Diagram

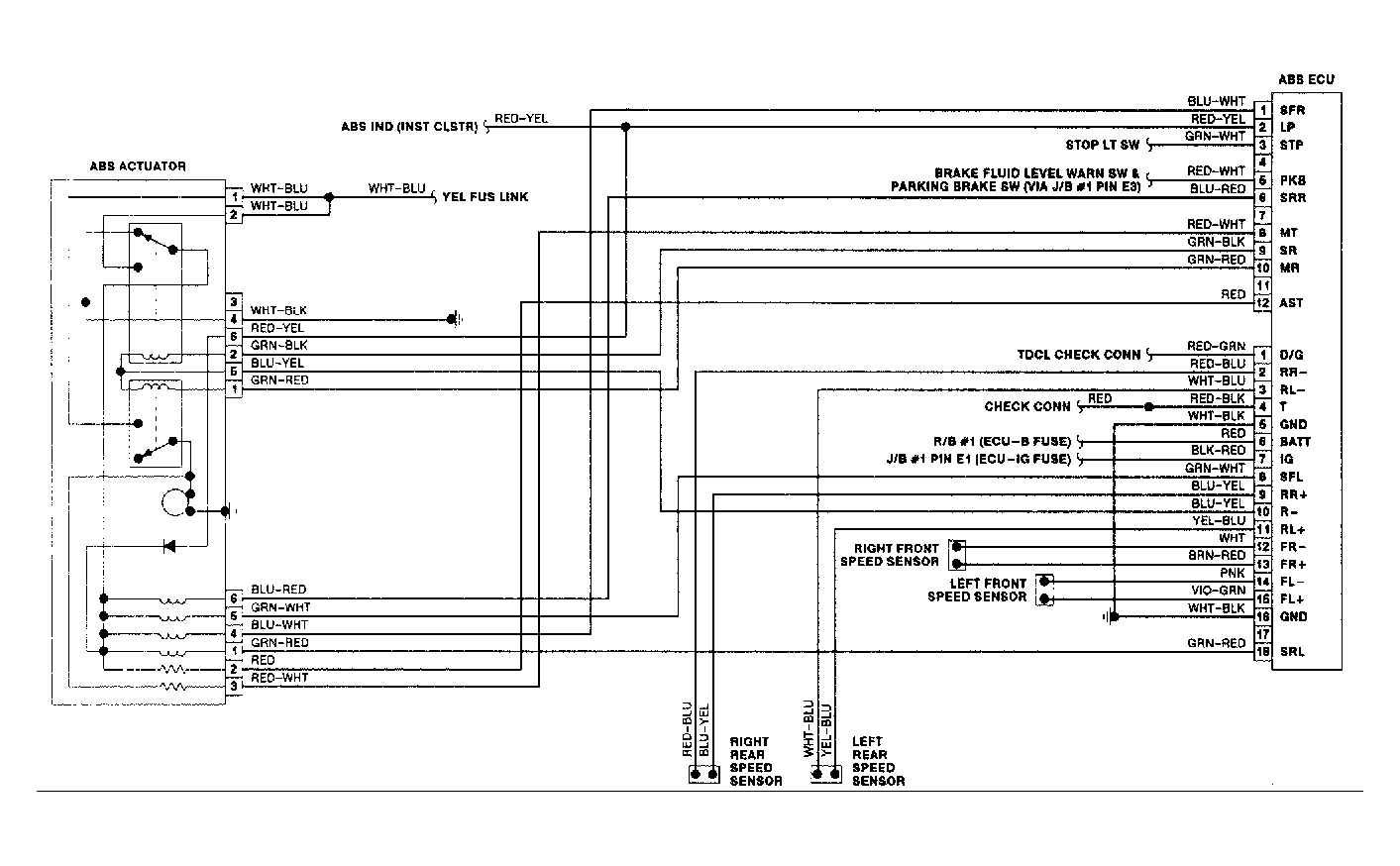

Fig 1: Anti-Lock Brake System Wiring Diagram
G91I03781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
