Components Locations: Notes

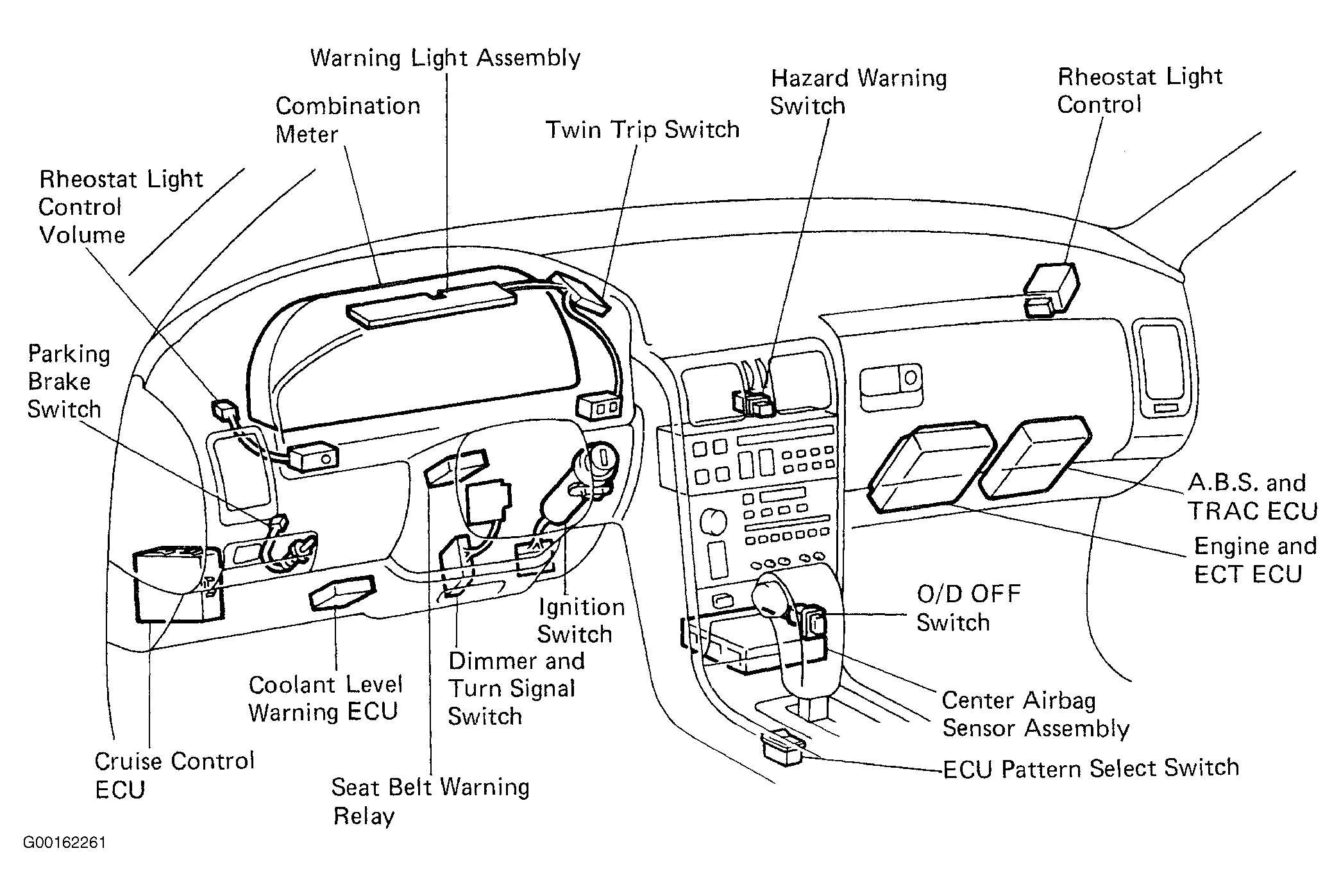

Fig 1: Locating Combination Meter Electrical Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Junction Block No. 1 (Passsenger Compartment Fuse Block) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Locating Junction Block No. 2 & DOME Fuse
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

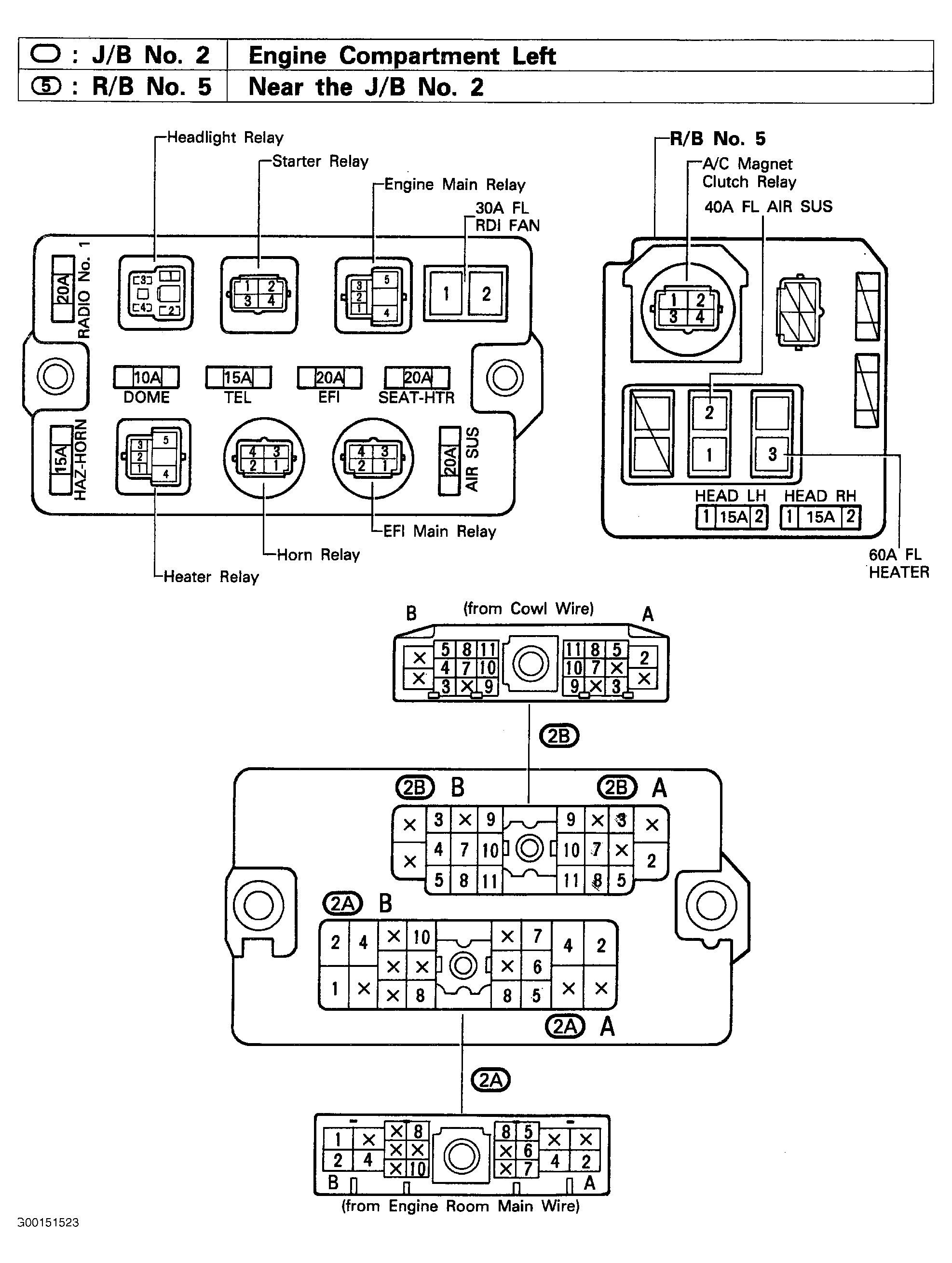

Fig 4: Identifying Junction Block No. 2 & Relay Block No. 5 Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Locating Door Courtesy Switches, Fuel Sender Gauge & Light Failure Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
