Component Locations

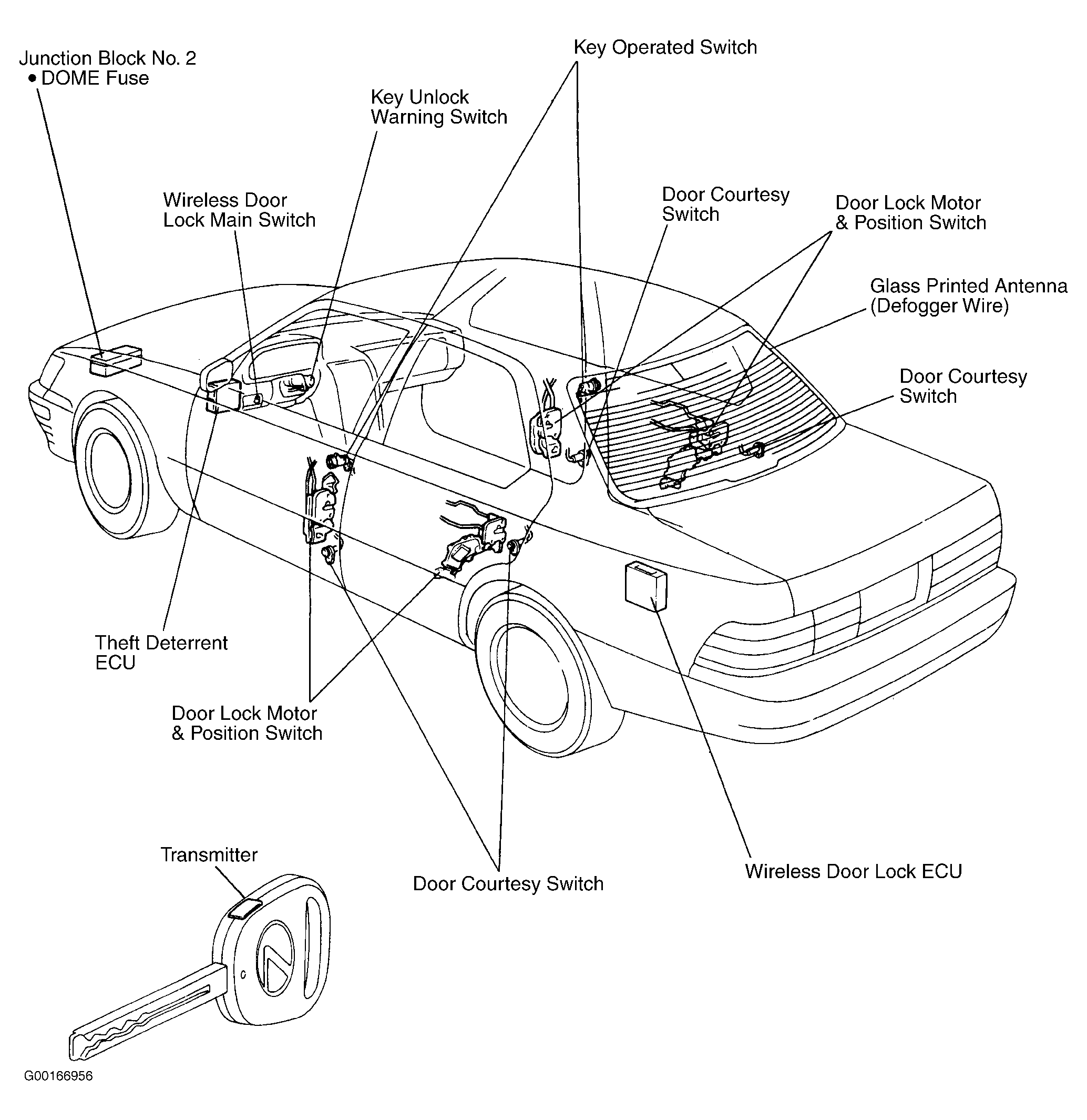

Fig 1: Locating Wireless Door Lock Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

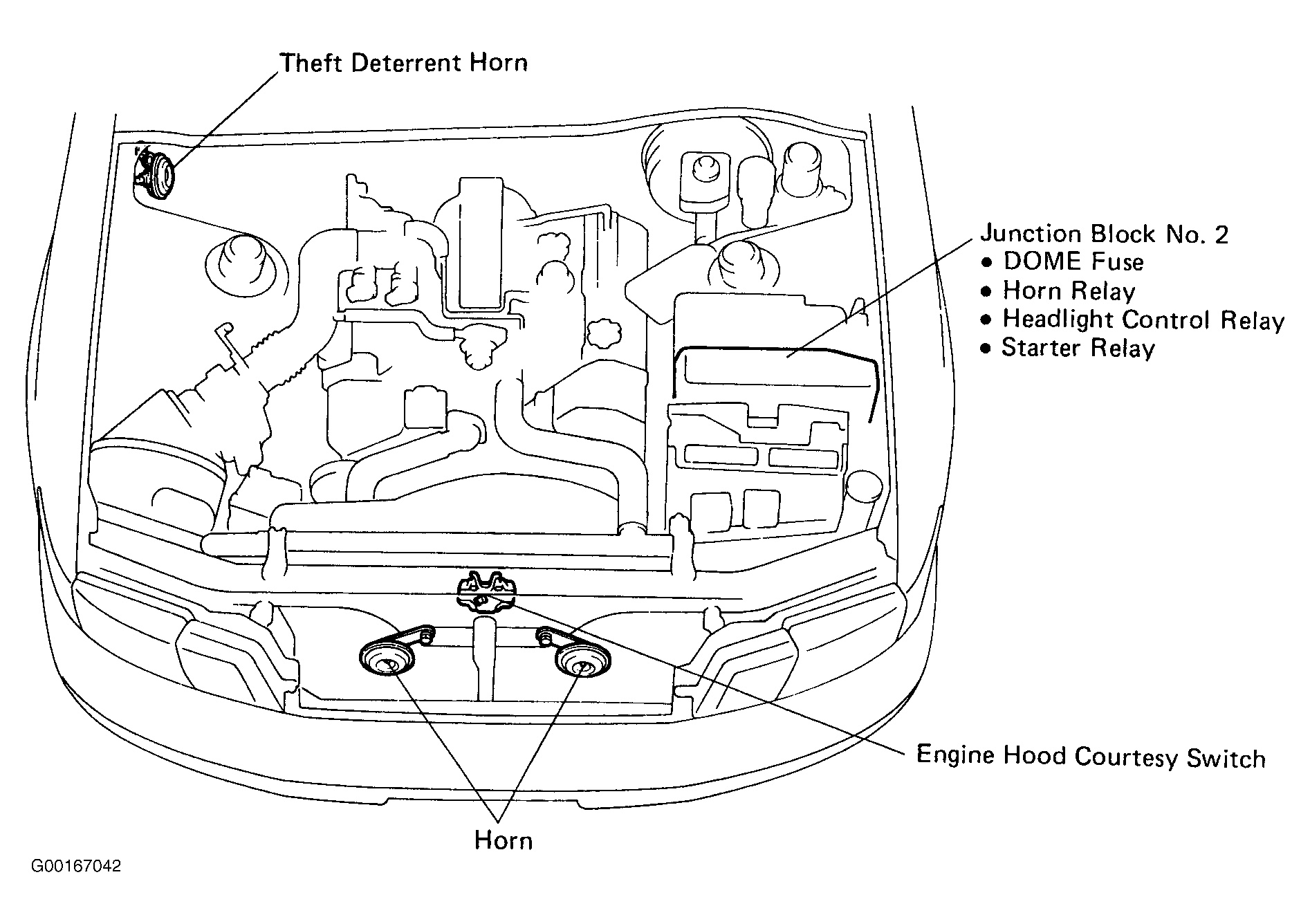

Fig 2: Locating Junction Block No. 2 & DOME Fuse
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Junction Block No. 1 Components(DOOR CB)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

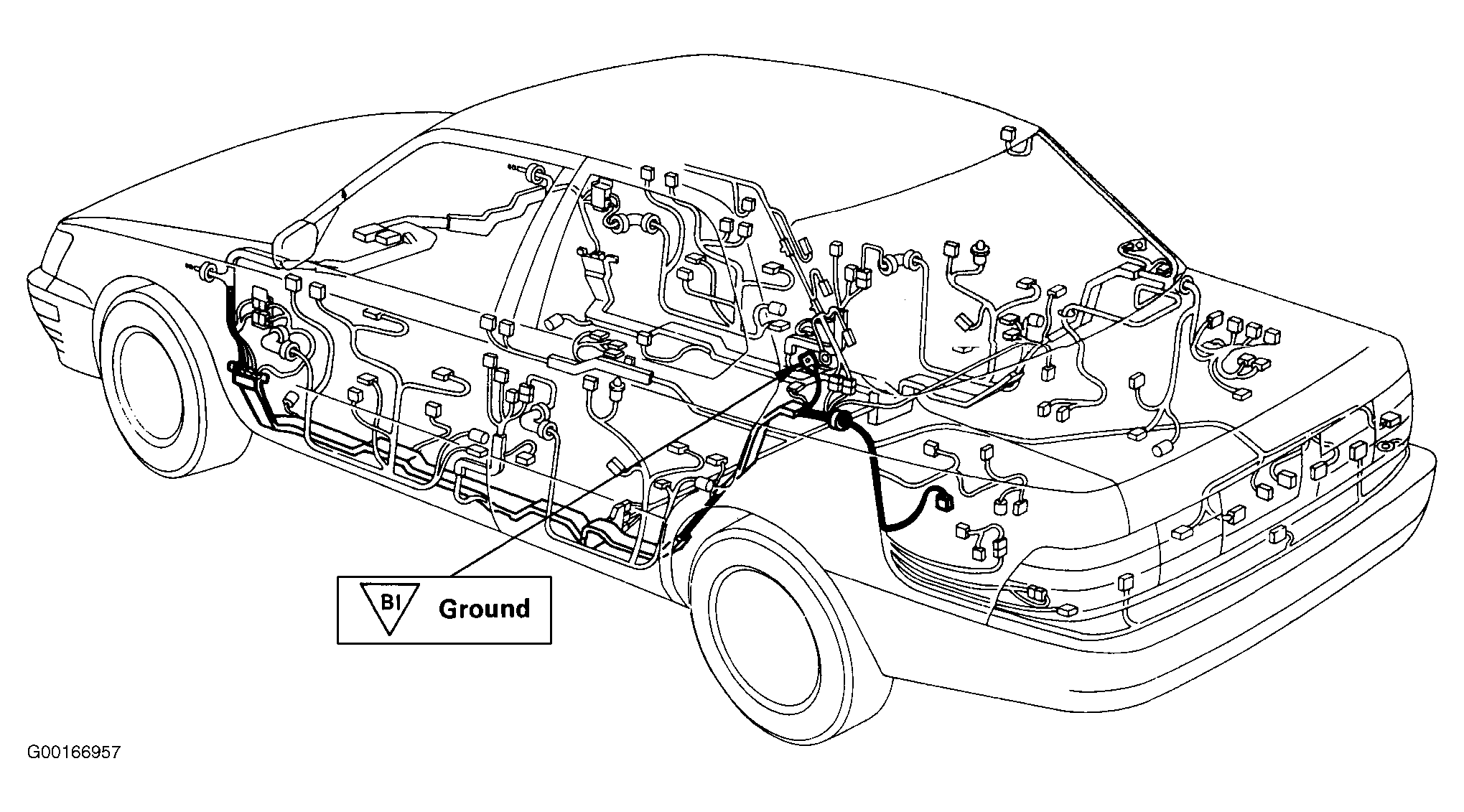

Fig 4: Locating Ground BI
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

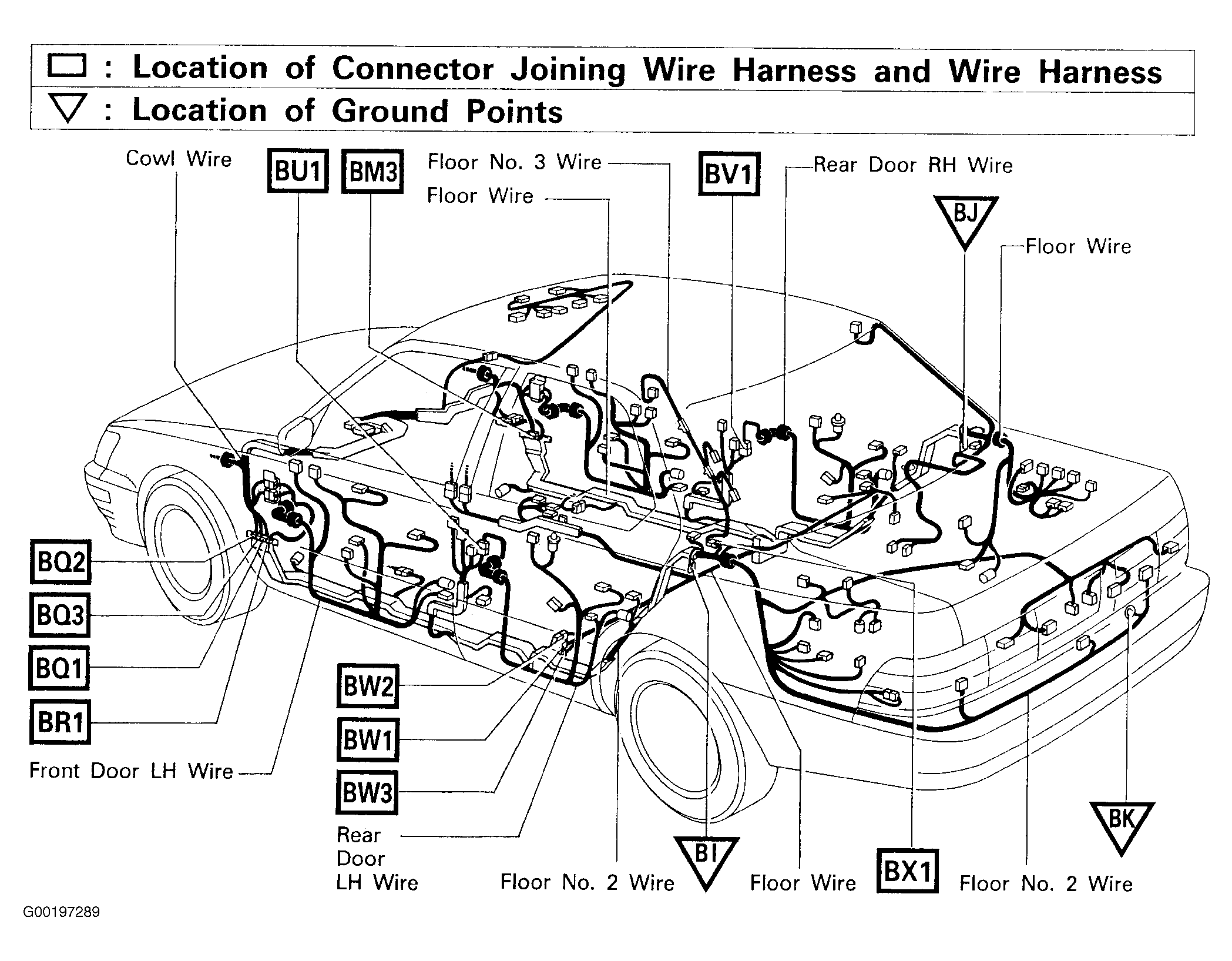

Fig 5: Locating Grounds BI, BJ & BK
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Locating Ground IE & IH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
