Remote Keyless Entry: Overhaul: Ecu: Replacement

  1. Prepare the new ECU (without ROM). Remove the ECU from the vehicle See Fig 1.
  2. Remove the ROM from the ECU. Install the ROM in the new ECU. See Fig 1.
  3. Install the new ECU in the vehicle. See Fig 1.

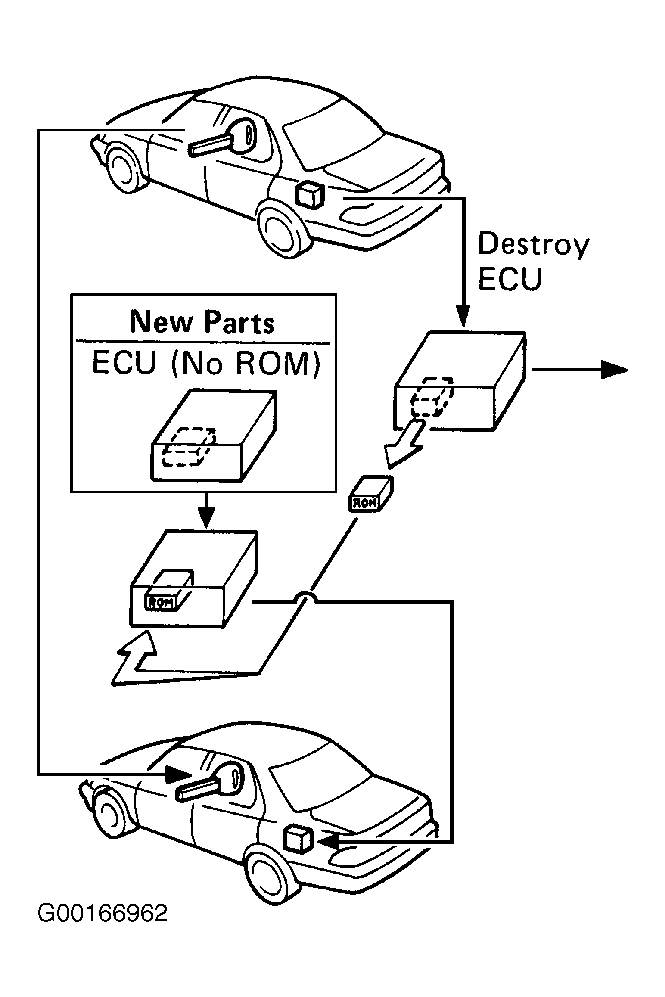

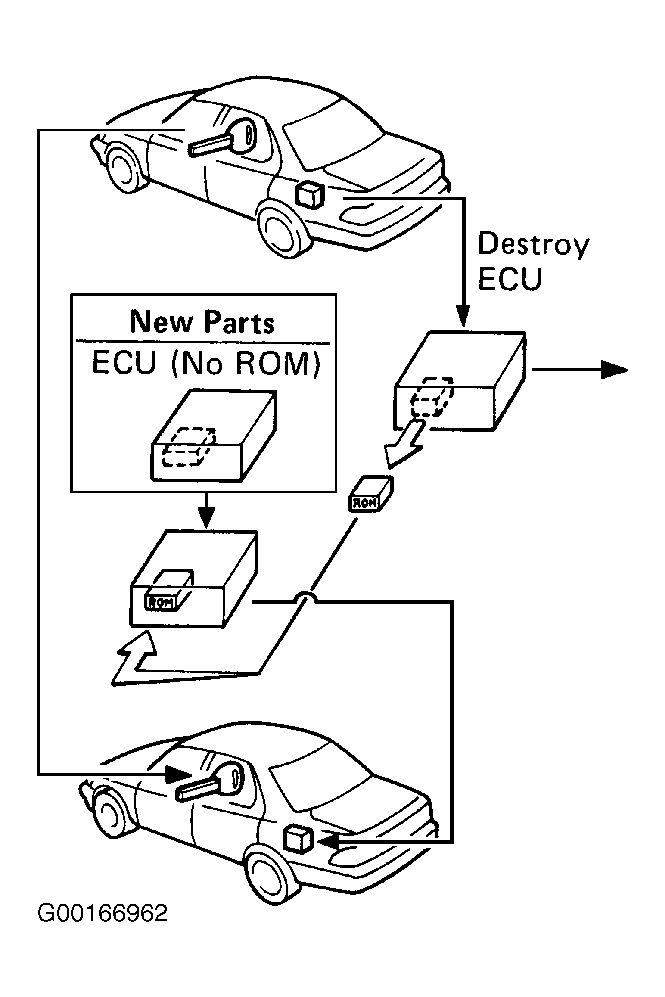

Fig 1: Replacing ECU
G00166962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
