Remote Keyless Entry: Overhaul: Transmitter: Replacement
- Prepare the new transmitter (with ROM).Remove the ECU from the vehicle.

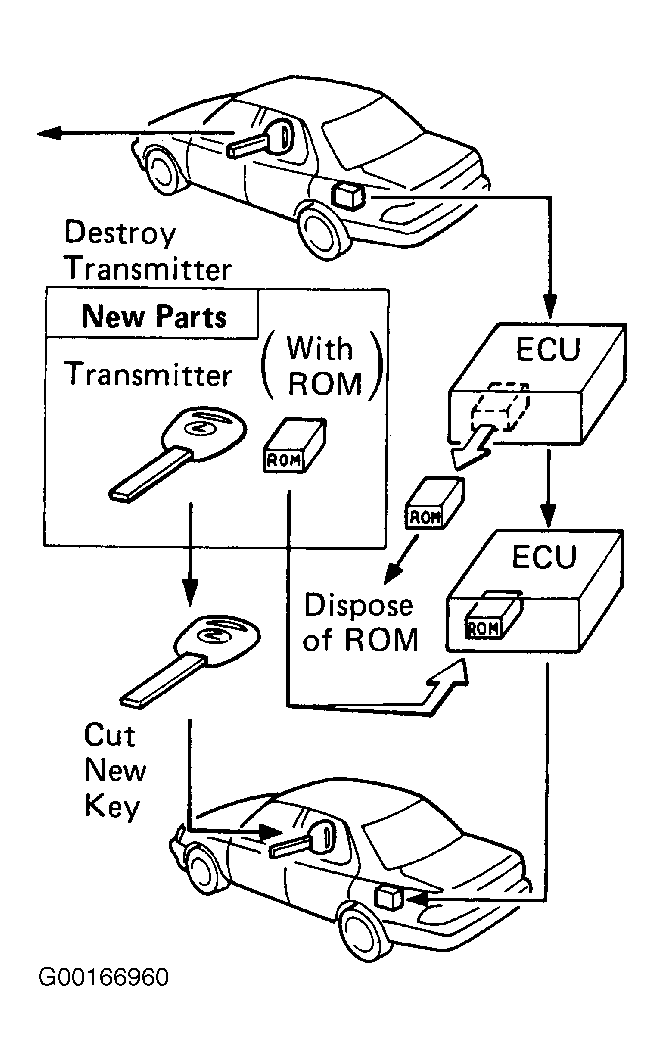

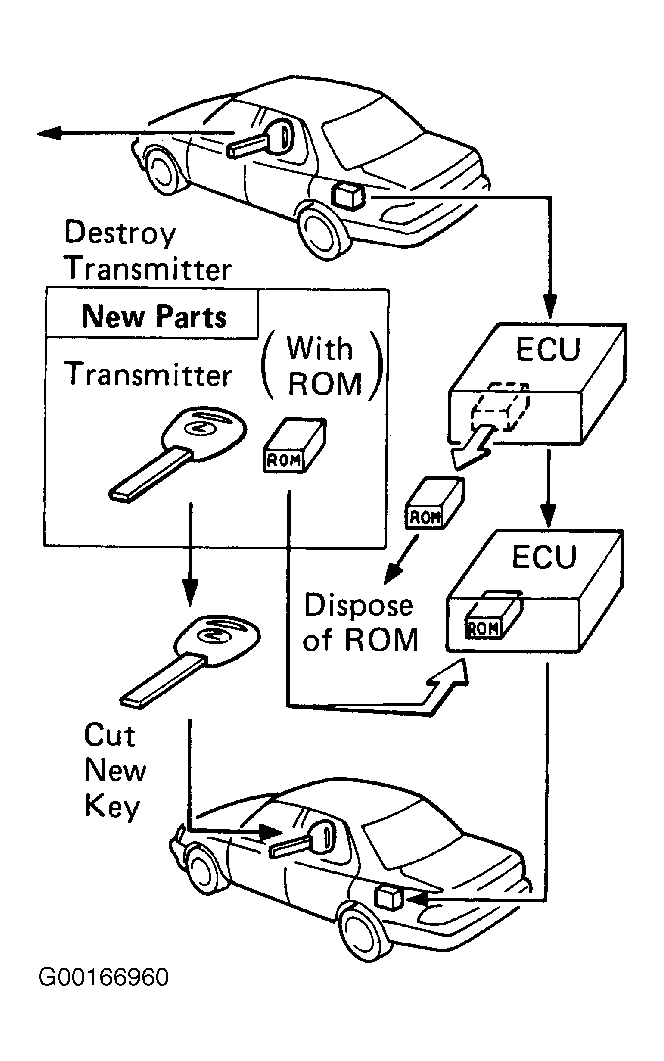

- Remove the ROM from the ECU. Install the New ROM into the ECU.See Fig 1.
- Install the new ECU into the vehicle. See Fig 1.
- Chech that door lock remote control operation works. See Fig 1.
- Cut the new key to the shape of the replaced key. See Fig 1.
