Door Glass
NOTE:
Check that there is space between the glass guide and stopper.

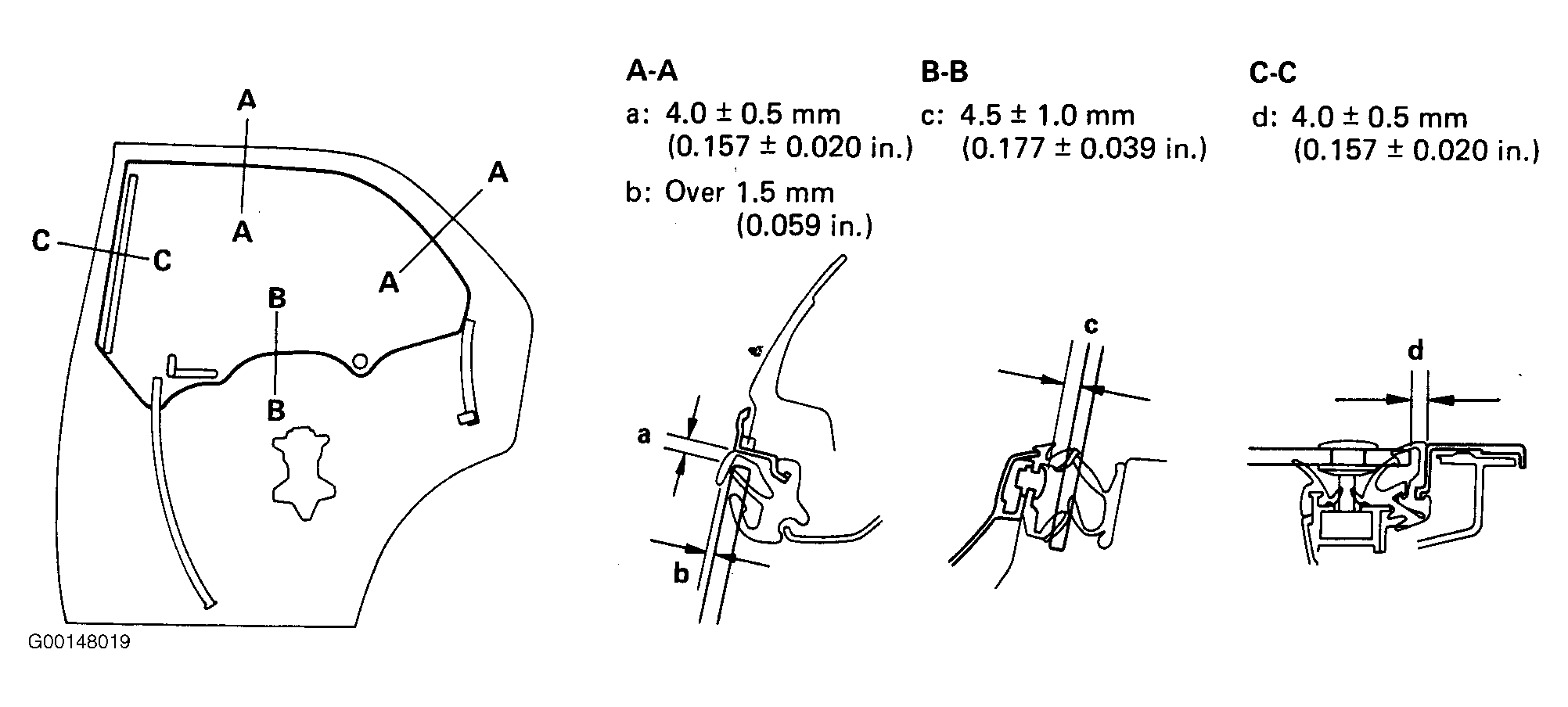

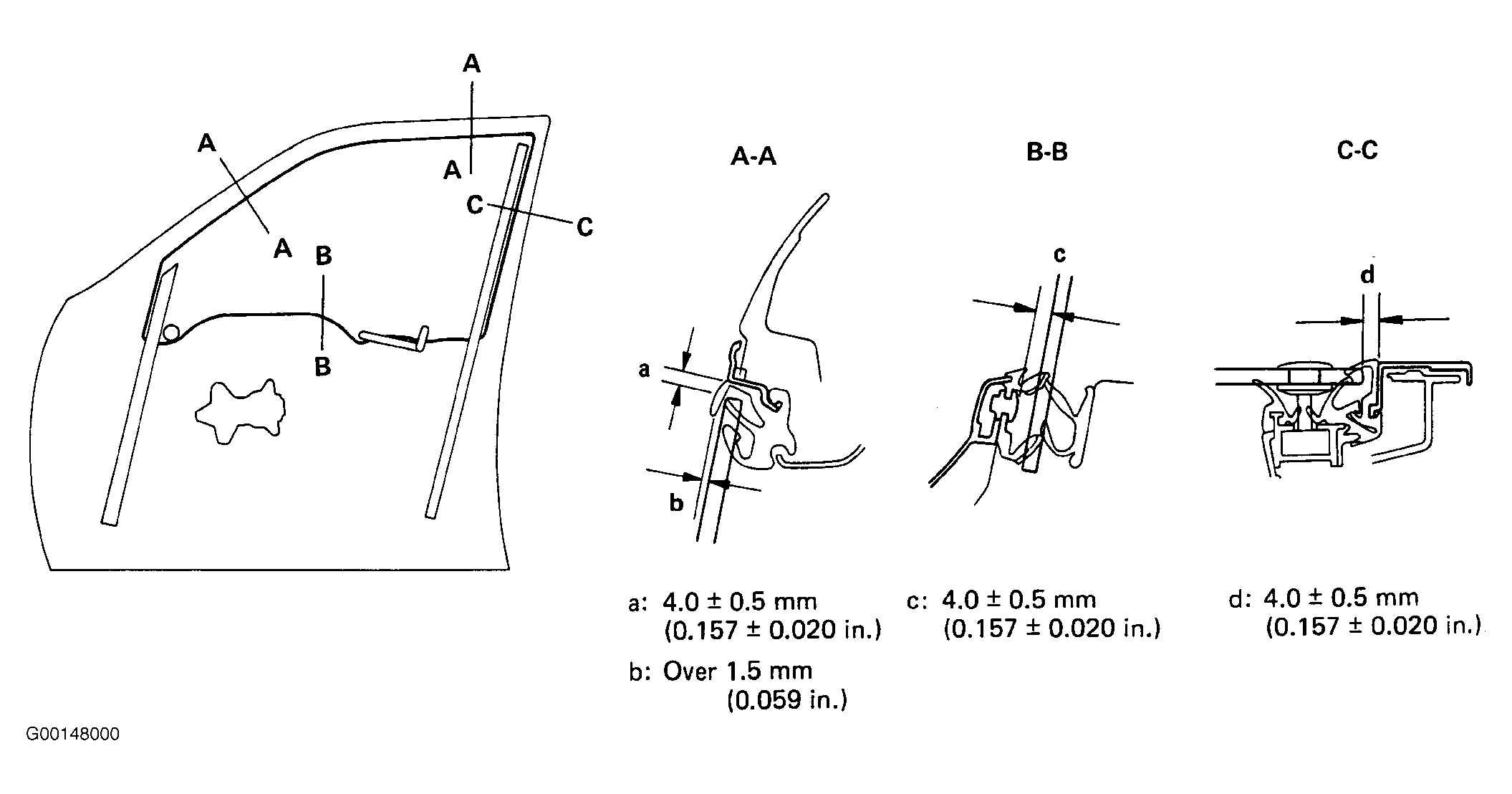

- Fully raise the glass, and adjust the gap between the glass and door panel. See Fig 1 and Fig 2 .
- After adjustment, immobilize the guides, stoppers and 2 nuts.
- Raise the glass again and check the installation.
NOTE:
Check that the edge of the glass does not come in contact with the bottom part of the weatherstrip when the glass is being raised or lowered. Check that the glass moves up and down smoothly and that the weatherstrip does not get caught by the glass.
