Circuit(Power Window Motor)

  1. Disconnect the connector from the motor.
  2. Connect the connector to the master switch and power window switch.
  3. Inspect the connector on the wire harness side. See Fig 1.

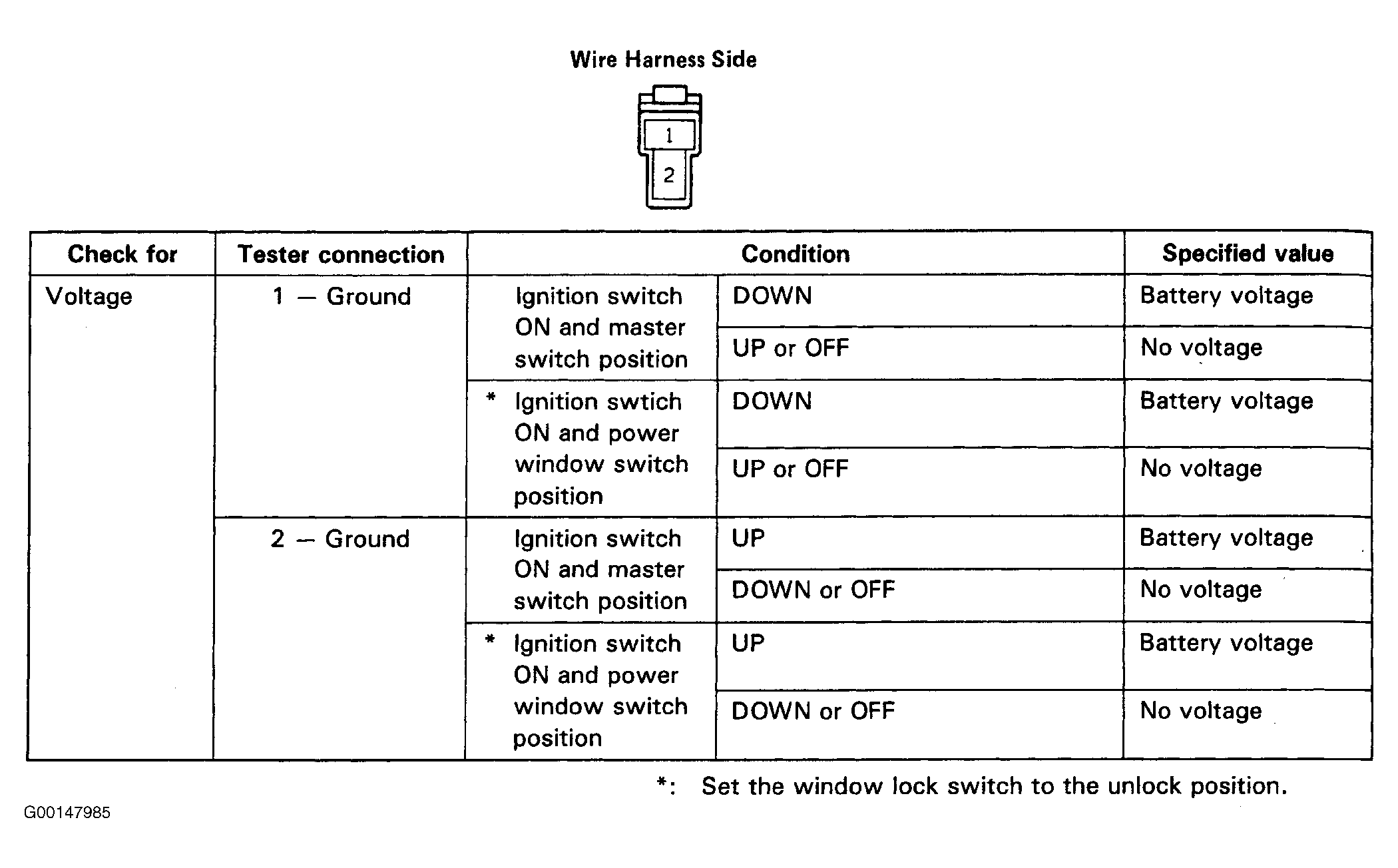

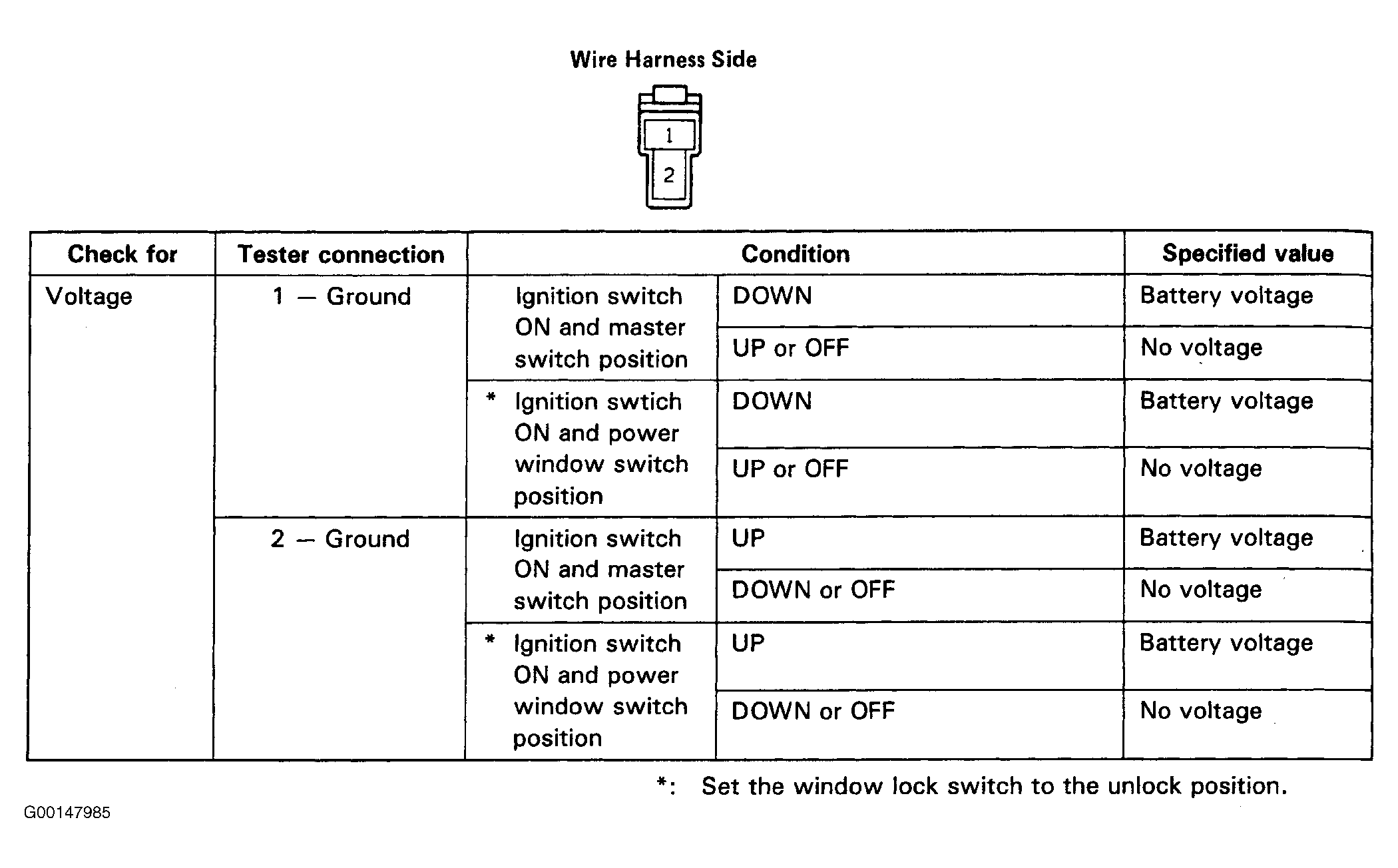

    Fig 1: Inspecting Circuit
    G00147985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. If the circuit is not as specified, see WIRING DIAGRAMS  and inspect the circuits connected to other parts.
