Connector Identification
To identify instrument panel connectors, see
Fig 1
,
Fig 2
and
Fig 3
.

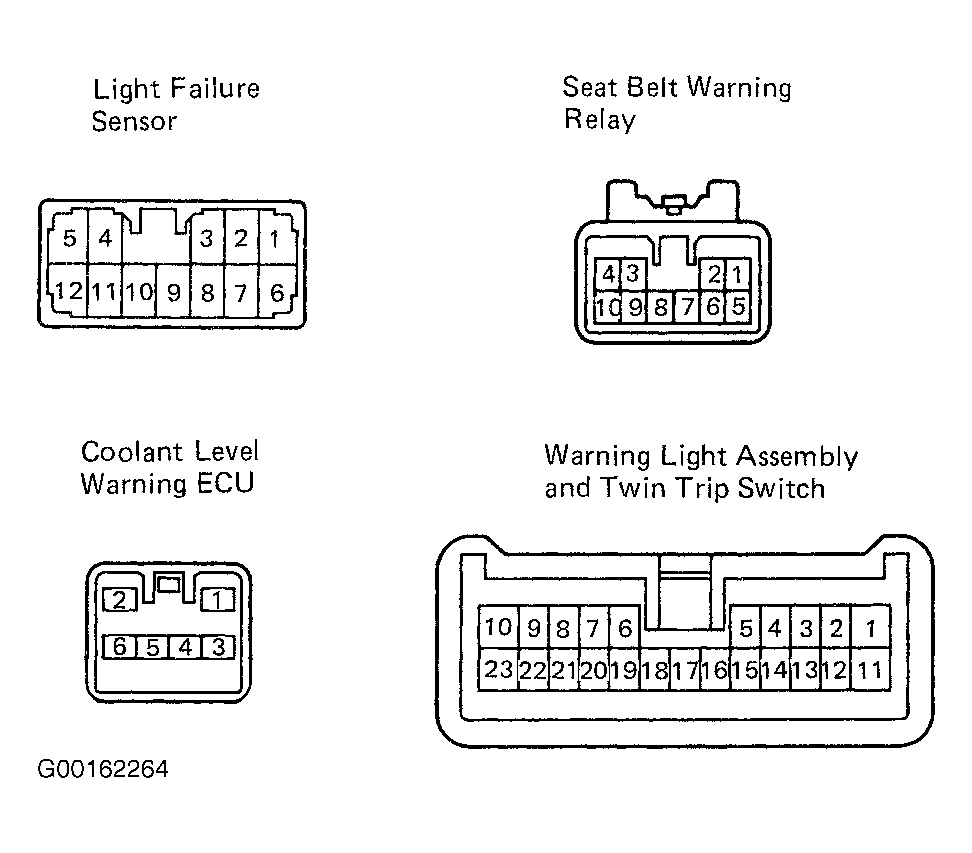

Fig 1: Identifying Combination Meter Connectors (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

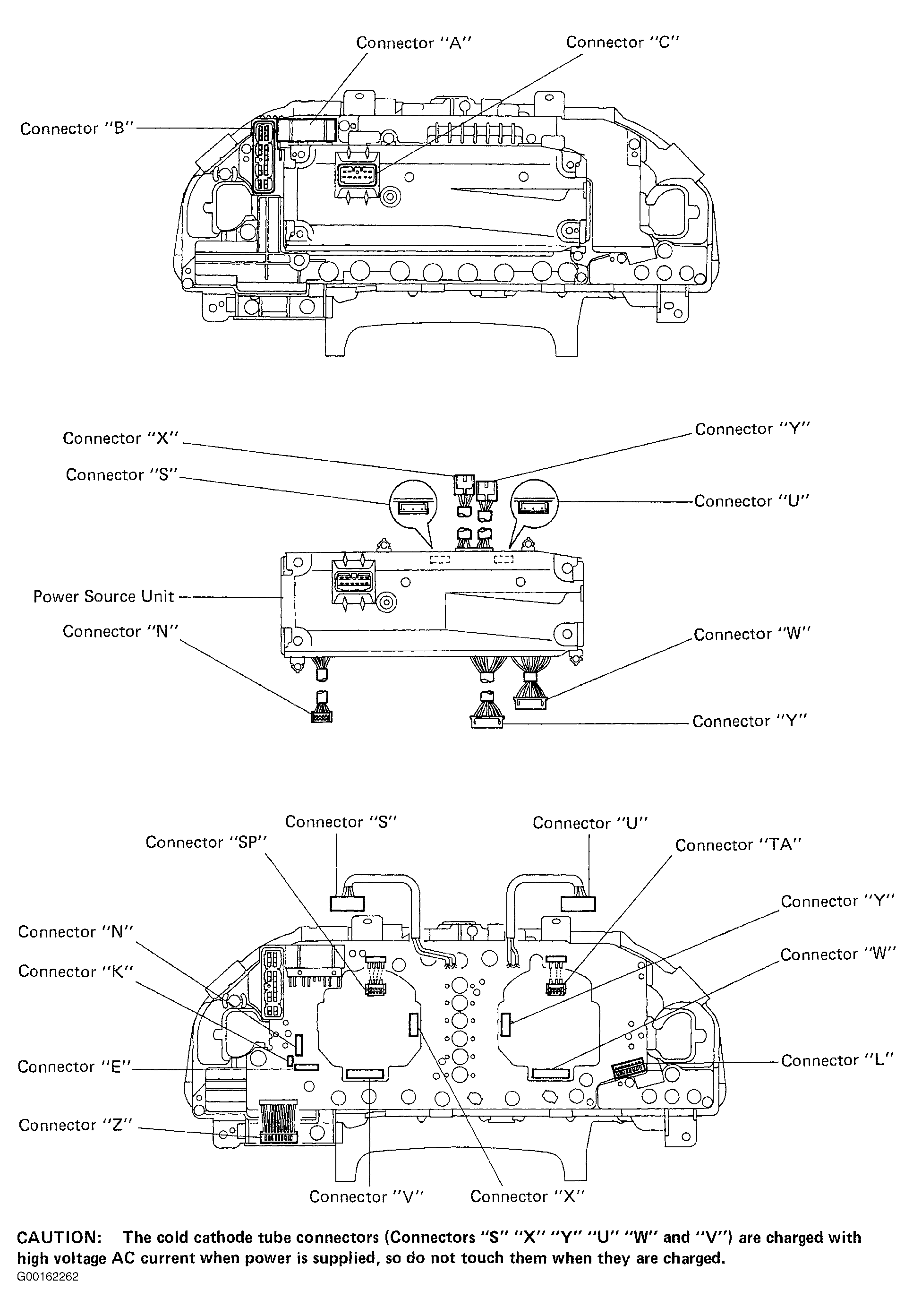

Fig 2: Identifying Combination Meter Connectors (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

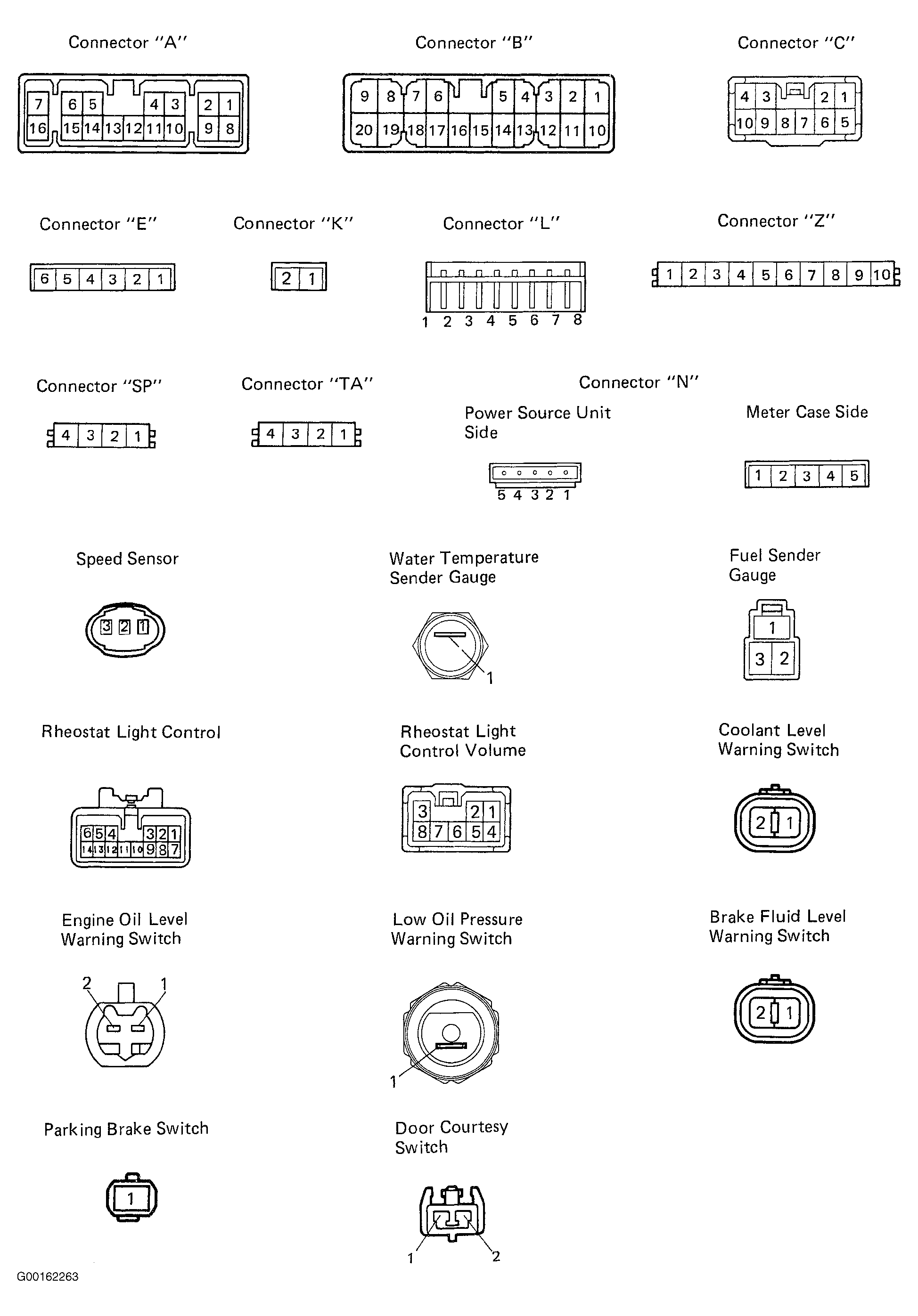

Fig 3: Identifying Combination Meter Connectors (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
