Idle Speed Control (ISC) Valve Circuit

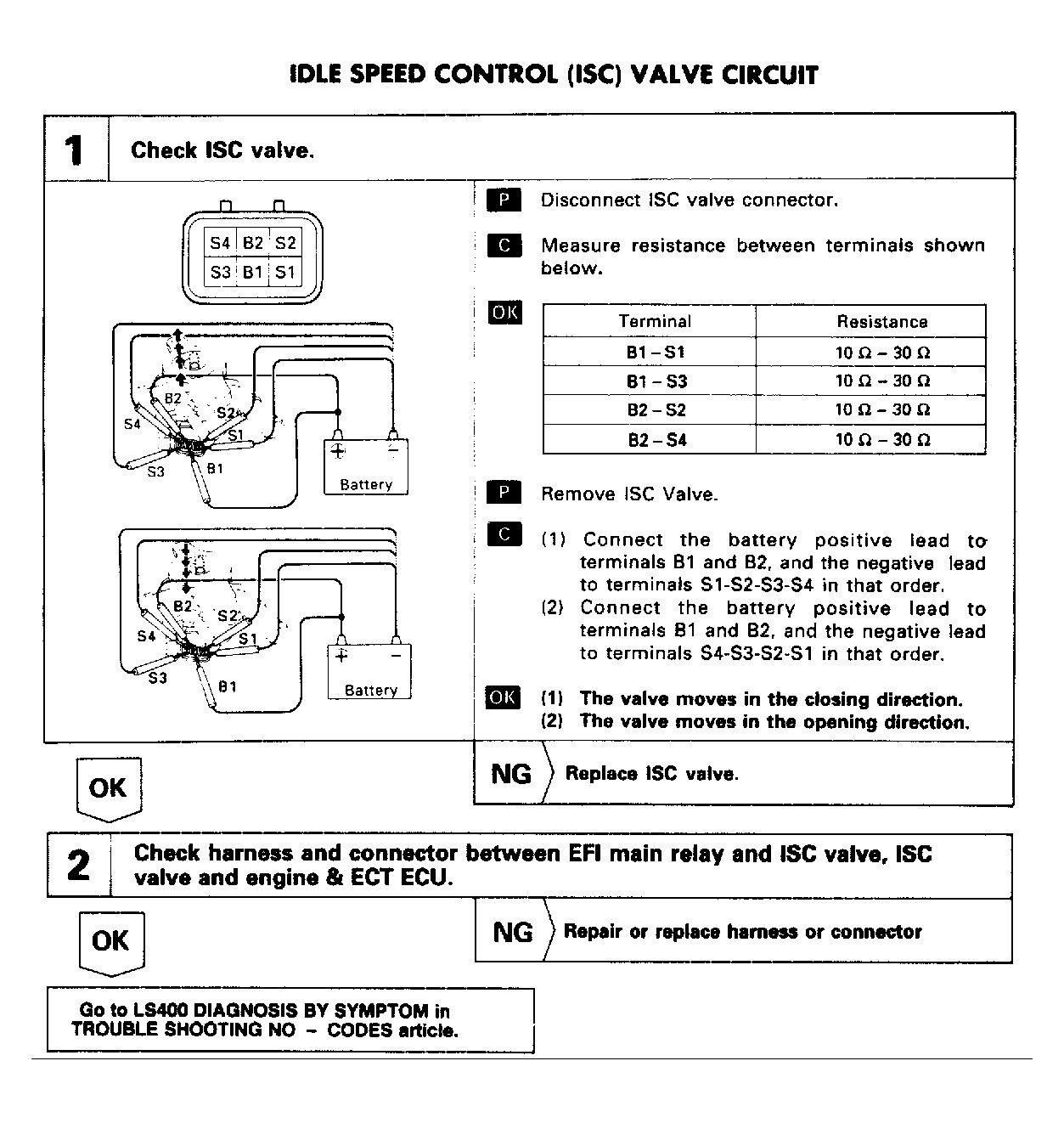

Fig 1: ISC Valve Circuit Chart

G90F18965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
