Neutral/Start Switch

Use an ohmmeter to check continuity between neutral/start switch terminals. See Fig 1. If continuity is not as specified, replace switch.

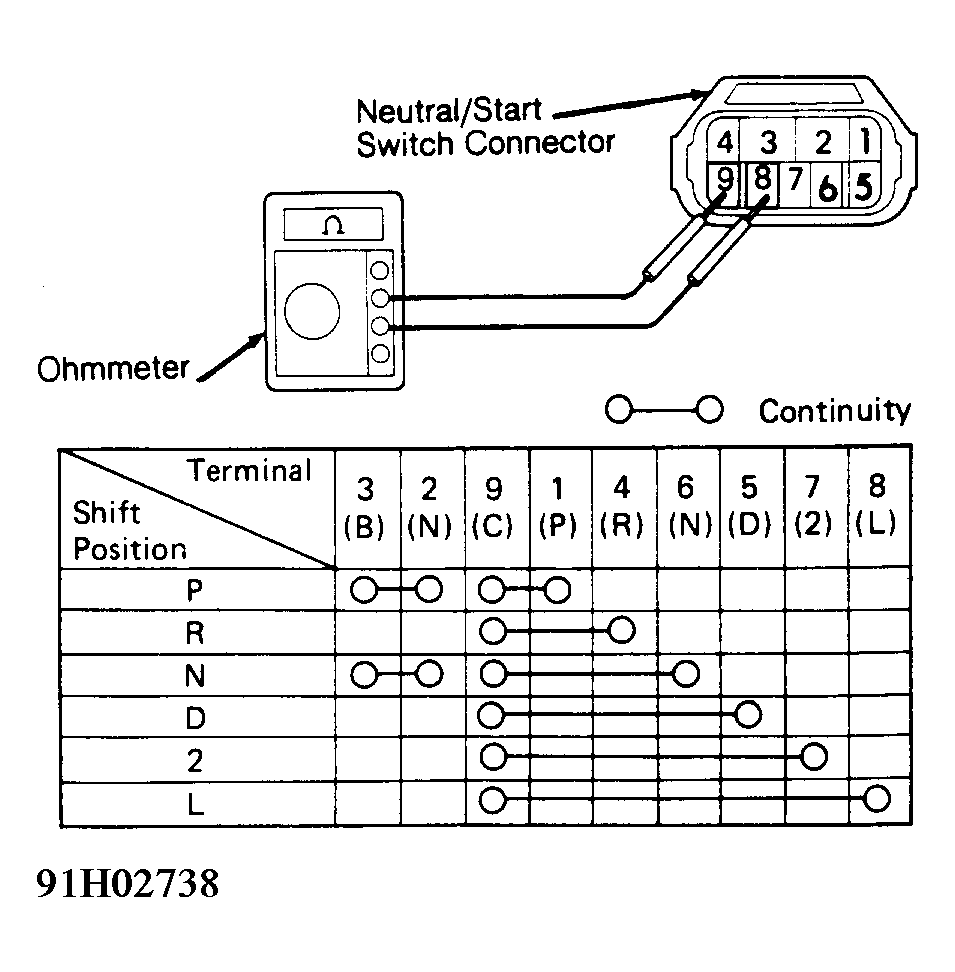

Fig 1: Testing Neutral/Start Switch
G91H02738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
