Electrical Components

For electrical component locations, refer to Fig 1.

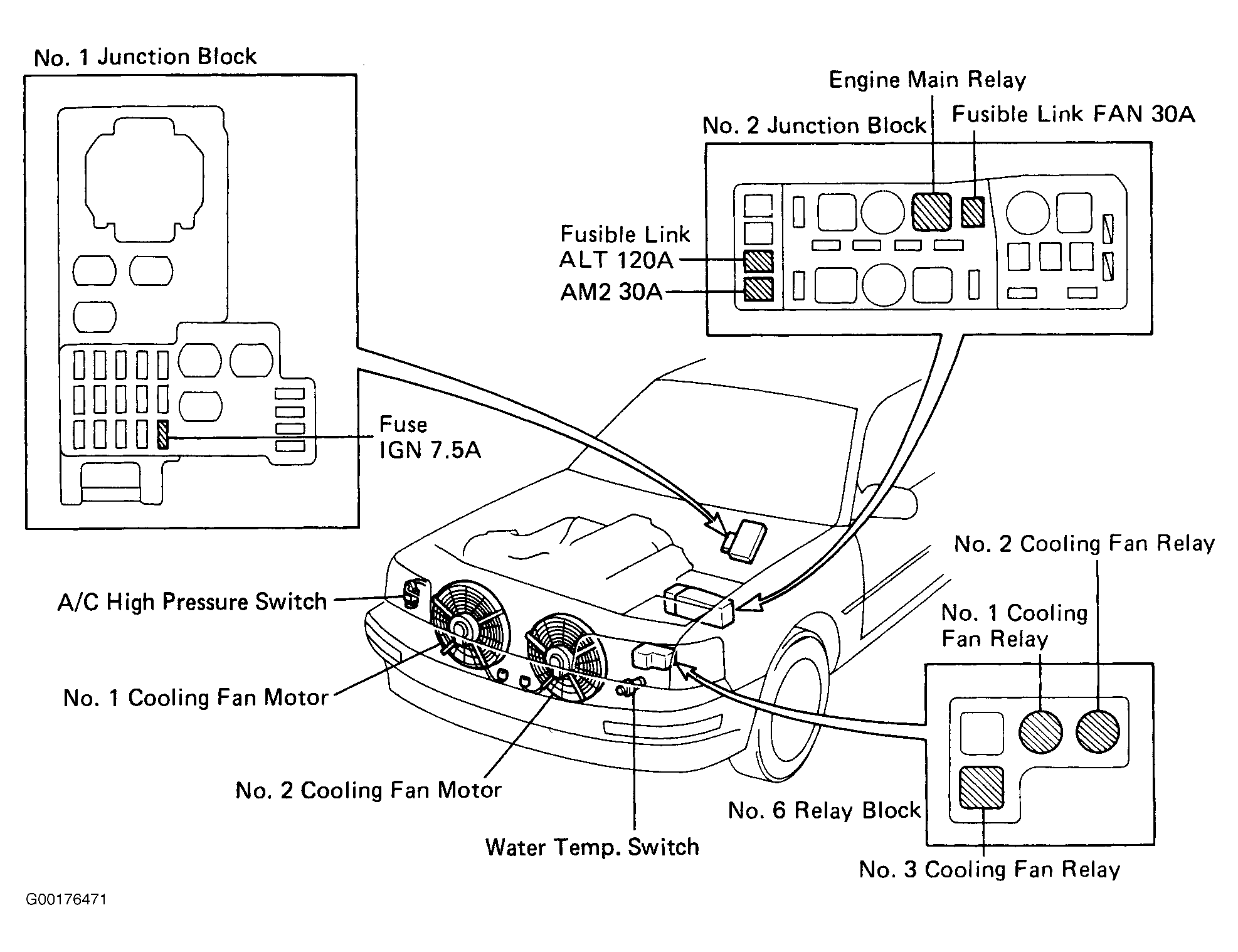

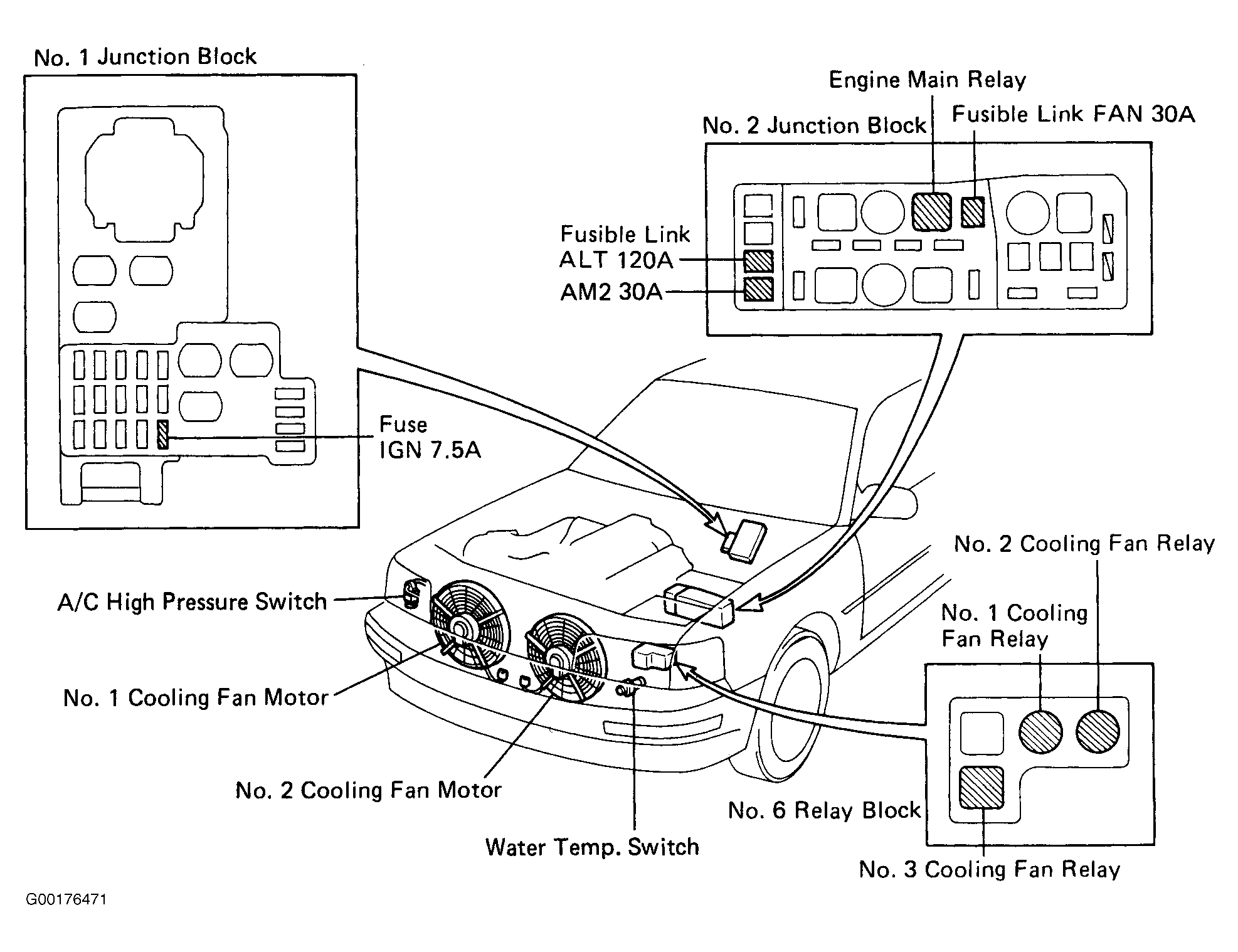

Fig 1: Identifying Cooling Fan System Electrical Components
G00176471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
