Test 10: Door Open Detection Switch Circuit

The door open detection switch is built in the door lock assembly. It is on when the door is open an off when the door is closed.

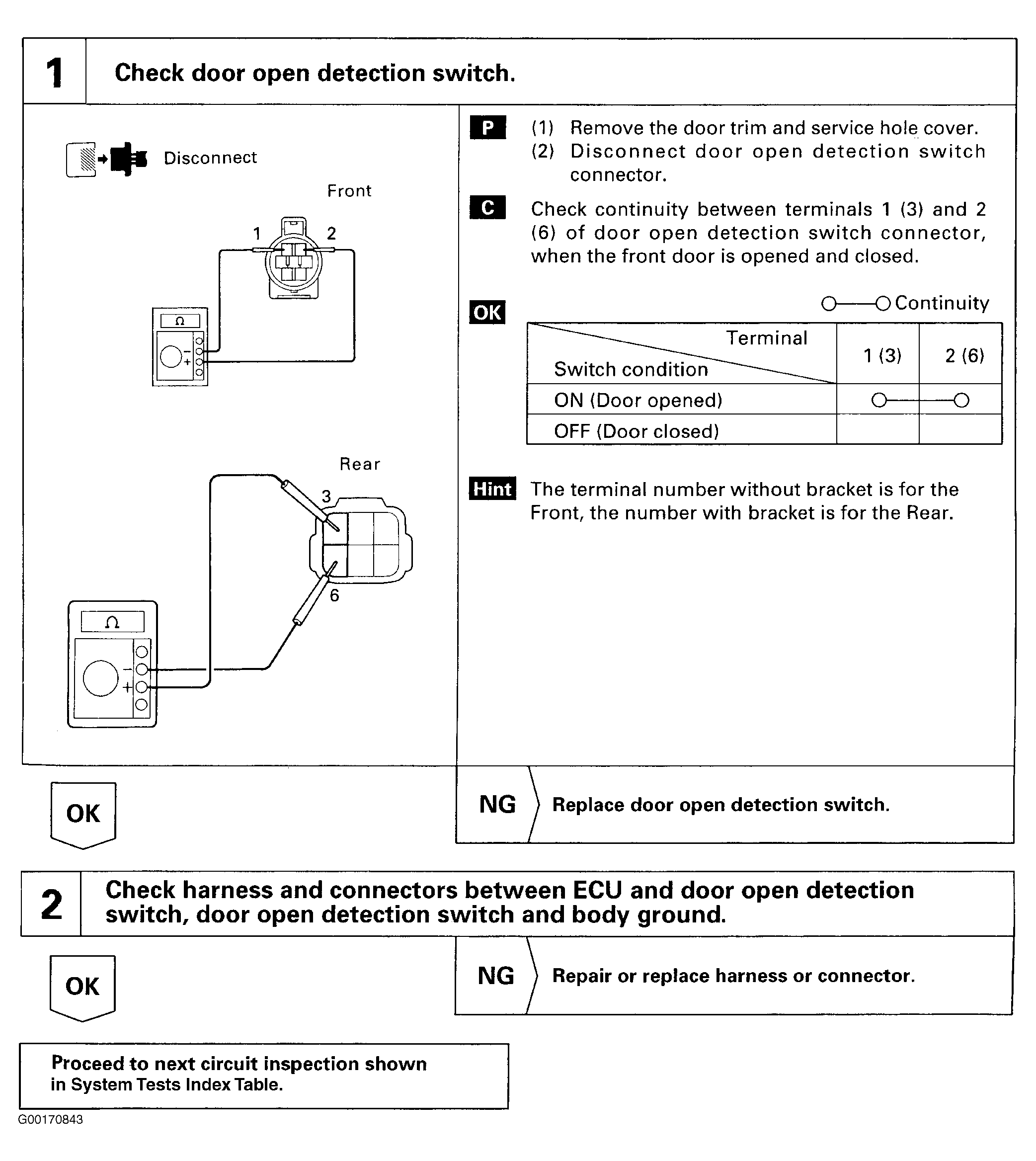

Fig 1: Test 10: Door Open Detection Switch Circuit Test (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

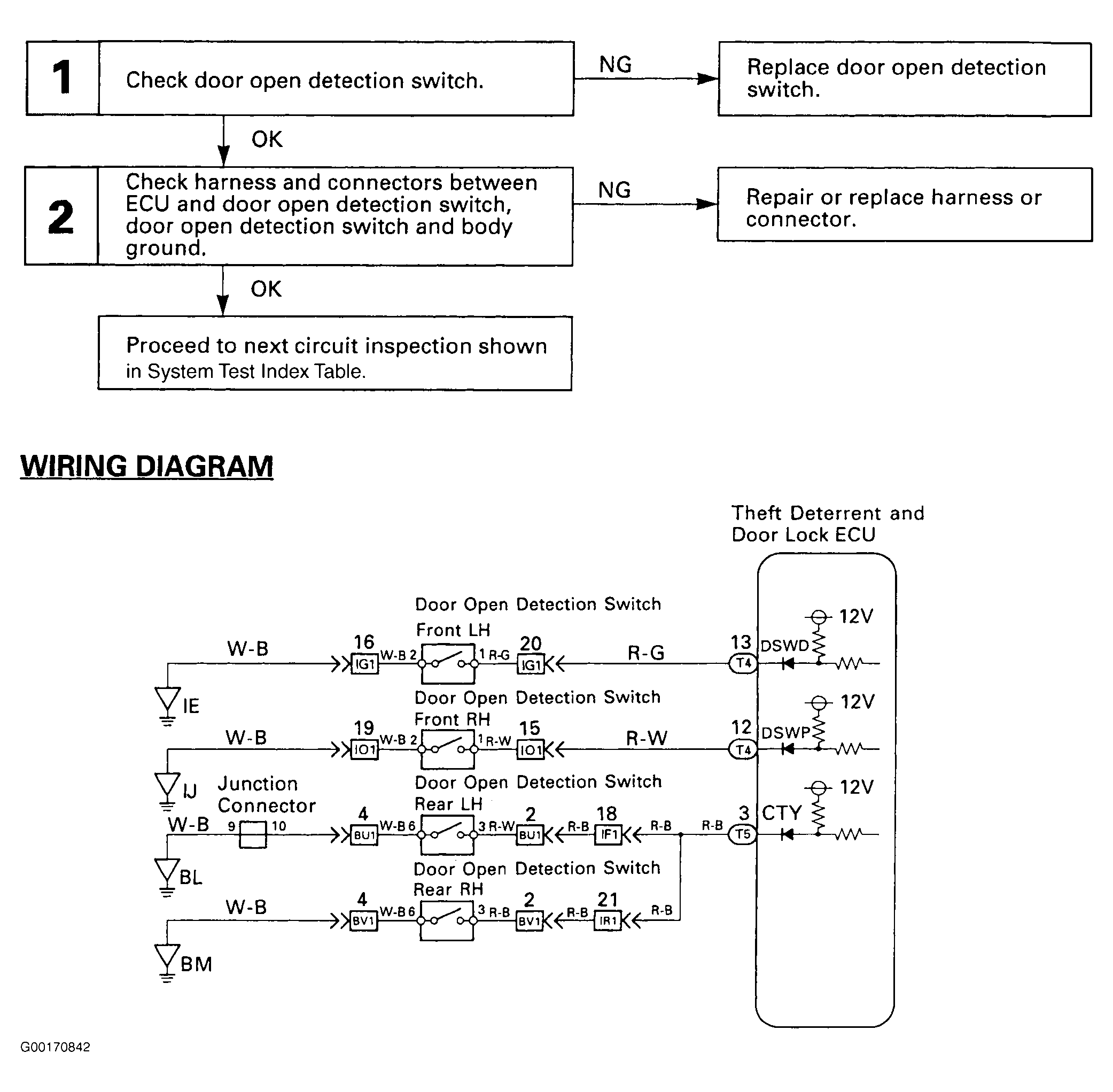

Fig 2: Test 10: Door Open Detection Switch Circuit Test (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
