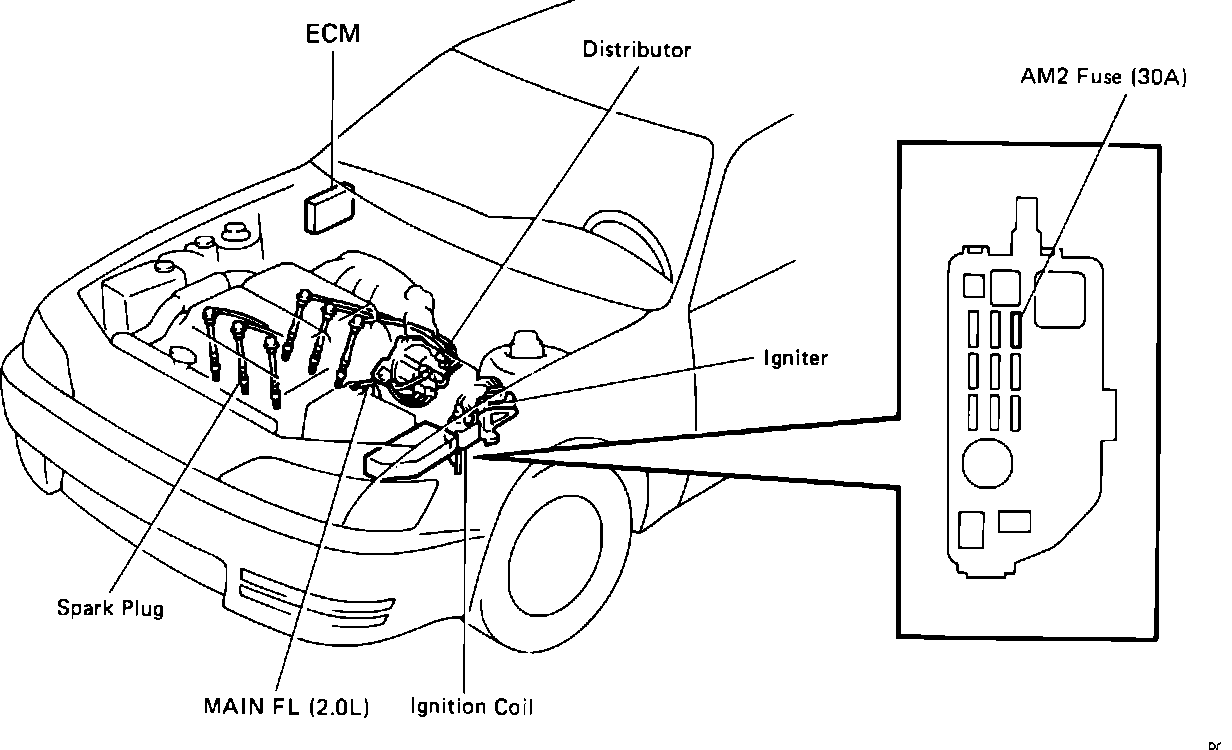

Distributor: Locations

Ignition System Components:

DISTRIBUTOR
Mounted to the end of the rear the cylinder head.

ECM
Under right side of dash.

IGNITER
Mounted to the left side strut tower.

IGNITION COIL
Mounted near the left side strut tower.

IGNITION FUSE
In junction box in the left front corner of the engine compartment.
