Fuel Pressure Control Vacuum Switch Valve Circuit

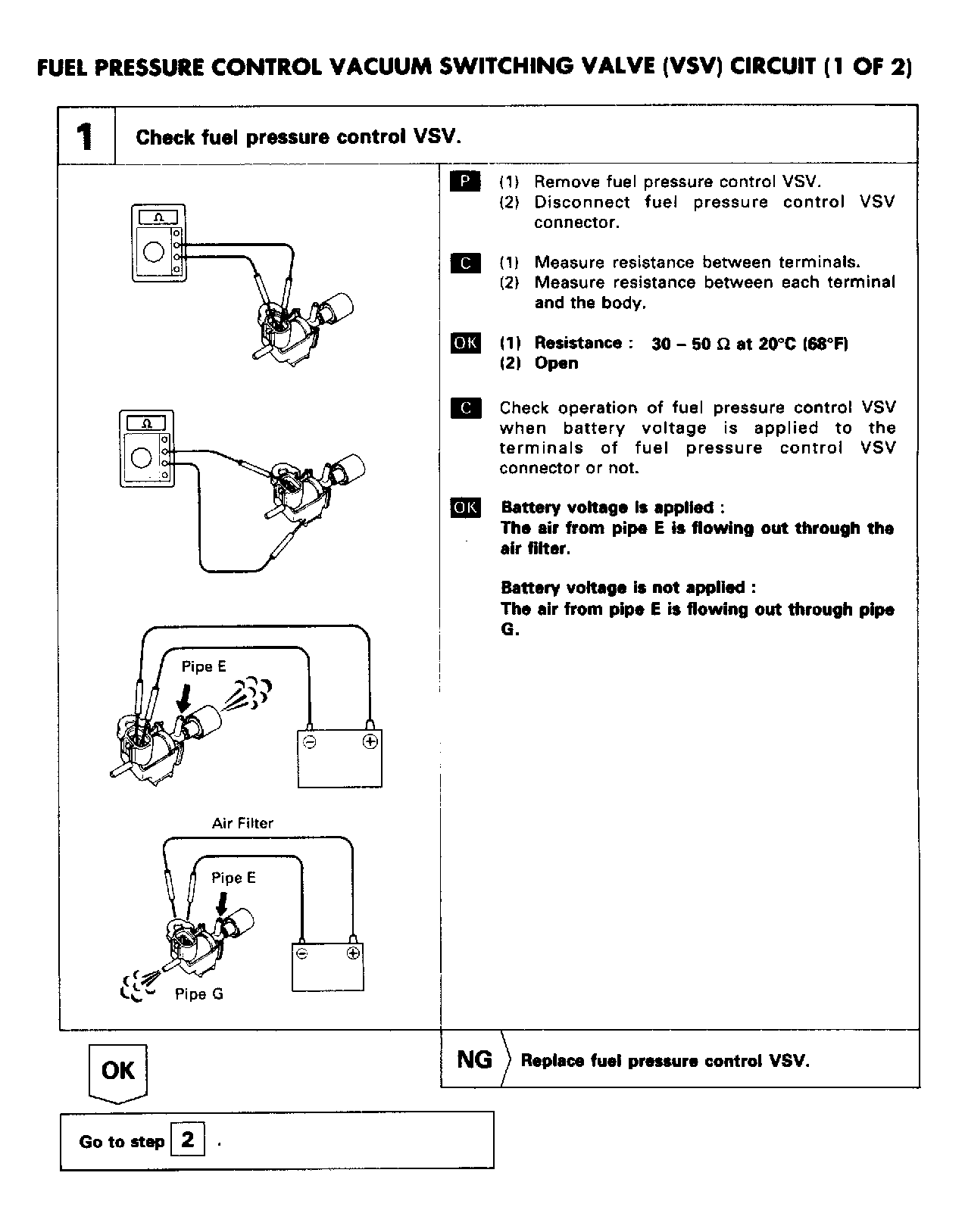

Fig 1: Fuel Pressure Control Vacuum Sw. Valve Circuit (1 of 2)
G90D18971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

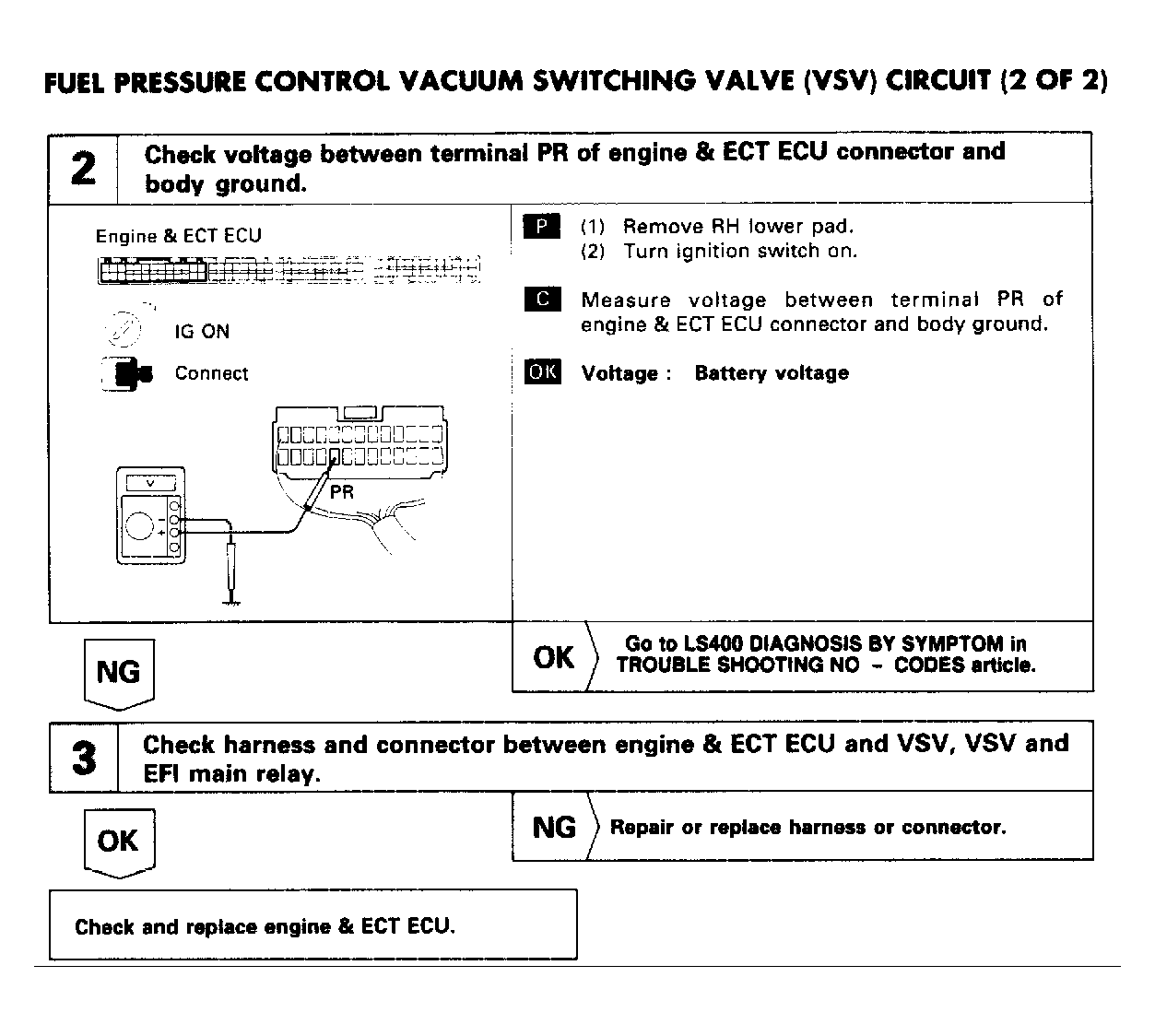

Fig 2: Fuel Pressure Control Vacuum Sw. Valve Circuit (2 of 2)
G90E18972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
