Switch Circuit Test
- Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

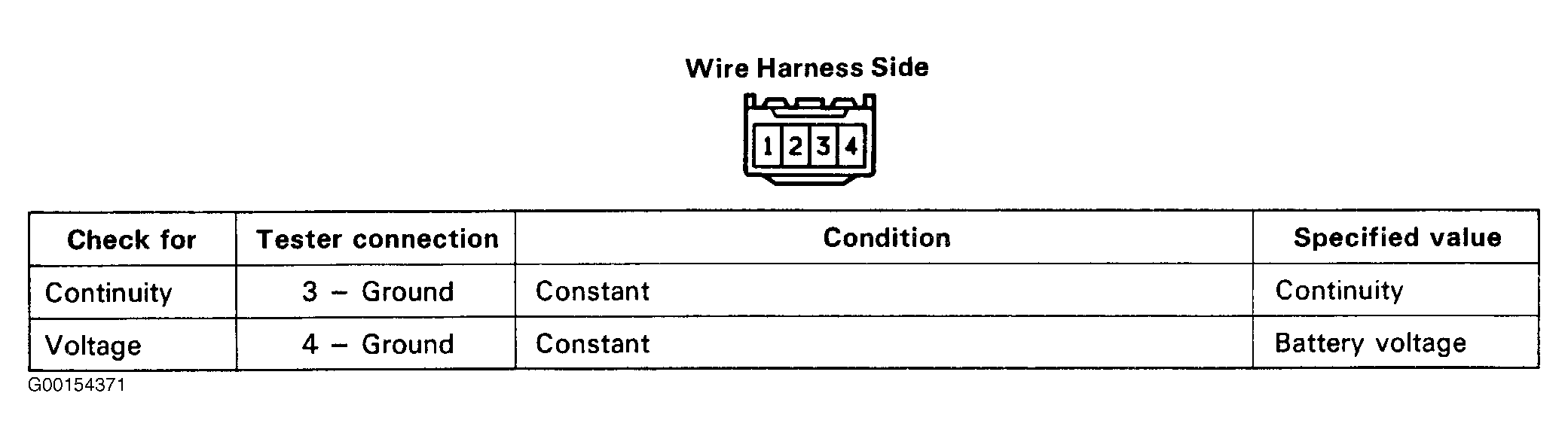

- Inspect the connector on the wire harness side as shown in Fig 1.
- If the circuit is not as specified, see WIRING DIAGRAMS and inspect the circuit connected to other parts.
