Stop Light Switch: Continuity

  1. Inspect the switch continuity between terminals. See Fig 1.
  2. If continuity is not as specified, replace the switch.

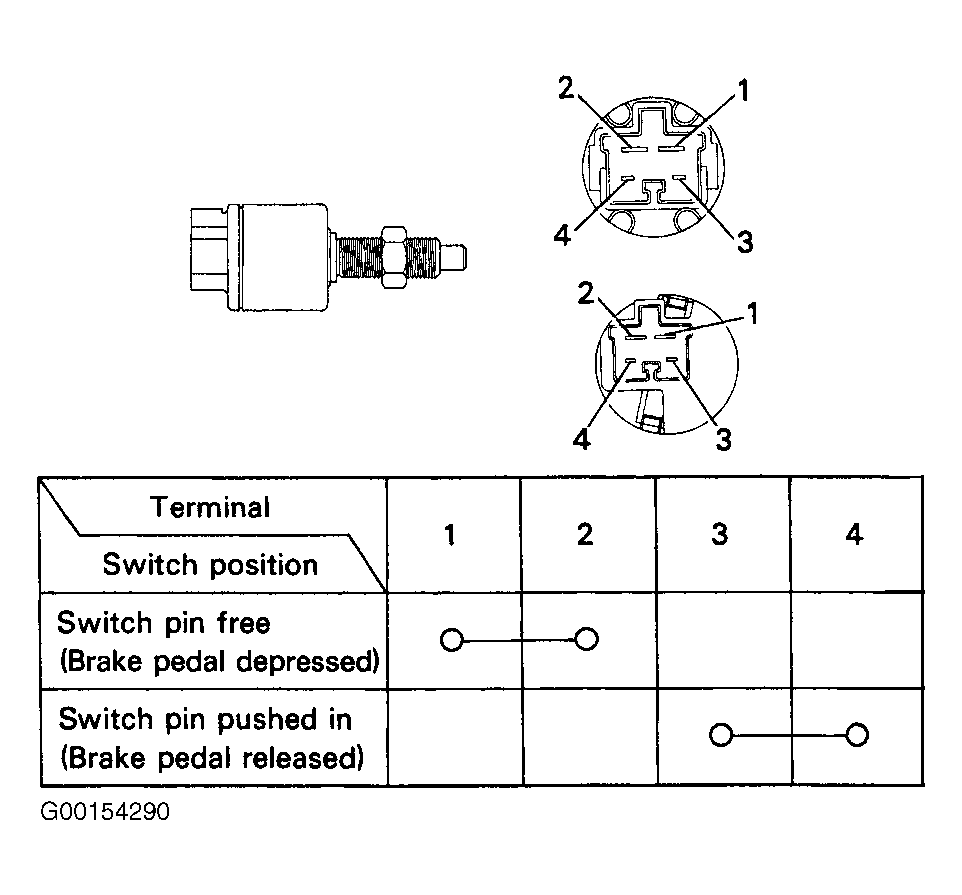

Fig 1: Testing Stop Light Switch Continuity
G00154290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
