Wiring Diagrams

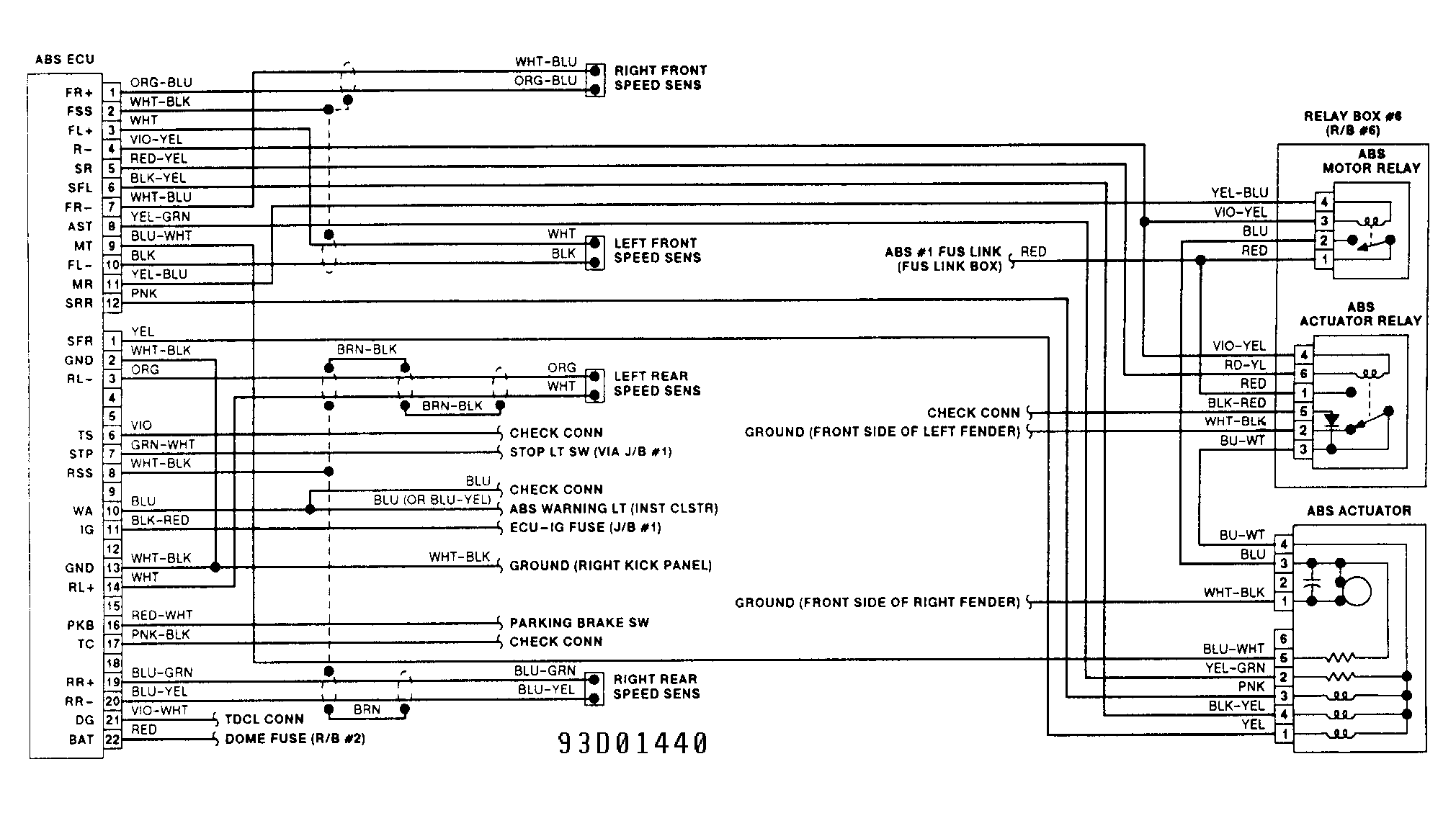

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram

G93D01440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
