TRAC Actuator
- Relieve high pressure fluid from accumulator. See BLEEDING BRAKE SYSTEM. Remove air cleaner, charcoal canister and ducting. Disconnect TRAC solenoid relay if necessary. Disconnect brake lines from actuator. Remove bolts and actuator assembly.

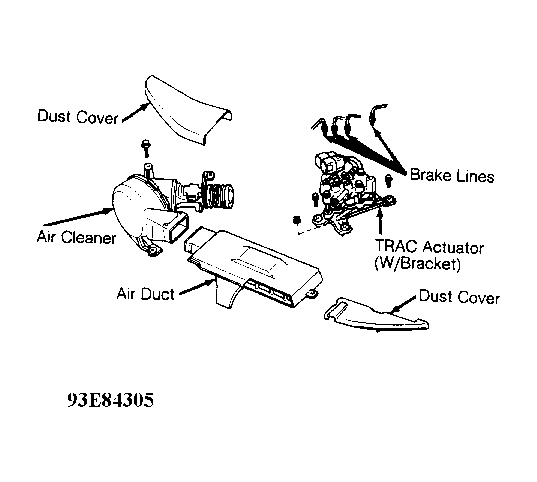

- To install, reverse removal procedures. Tighten assembly mounting bolts. See TORQUE SPECIFICATIONS TABLE. Bleed brake and TRAC systems. See BLEEDING BRAKE SYSTEM. See Fig 1.
