Radiator Cooling Fan Control Module: Testing and Inspection

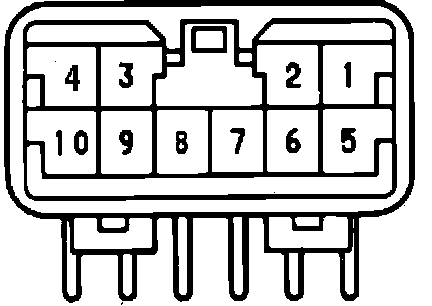

Fig. 2 Cooling Fan ECU Connector:

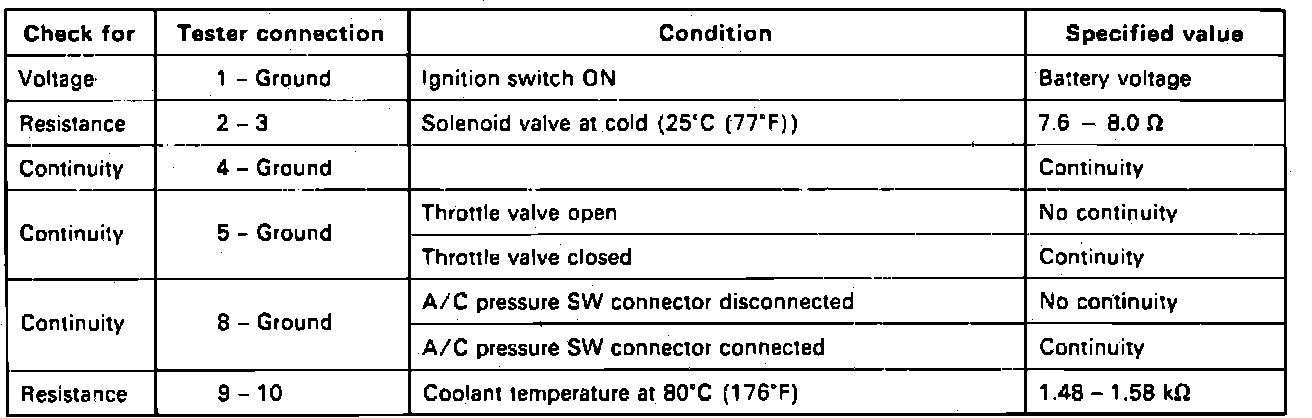

Fig. 3 Cooling Fan ECU Values:






Refer to Figs. 2 and 3 when inspecting cooling fan ECU. Hydraulic Cooling Fan Fluid Reservoir
