Code P0116 - Engine Coolant Temperature Circuit Range/Performance

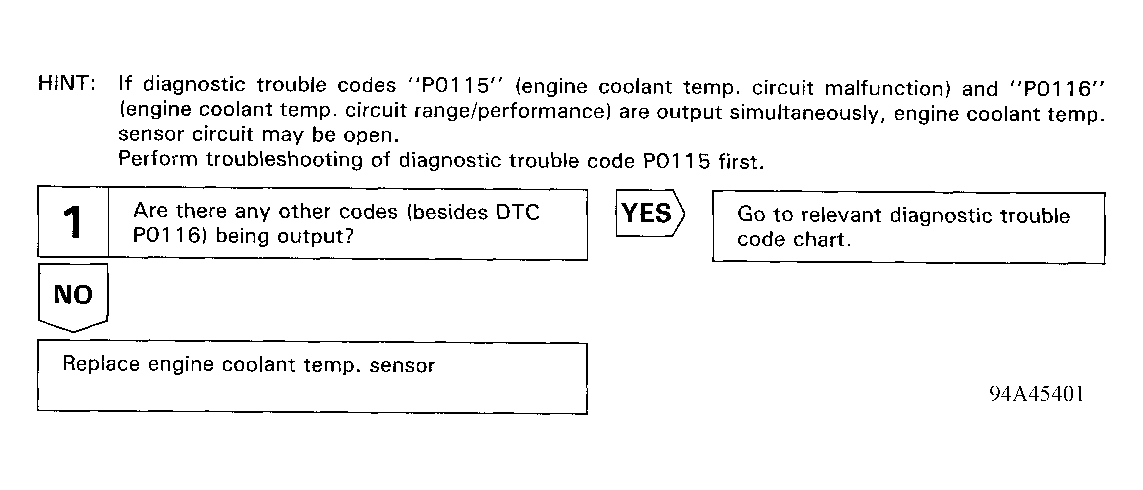

Fig 1: Code P0116 Flow Chart - Engine Coolant Temperature Circuit Range/Performance
G94A45401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
