Code P1780 - Park/Neutral Position Switch Malfunction
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Code P1780 - Park/Neutral Position Switch Malfunction

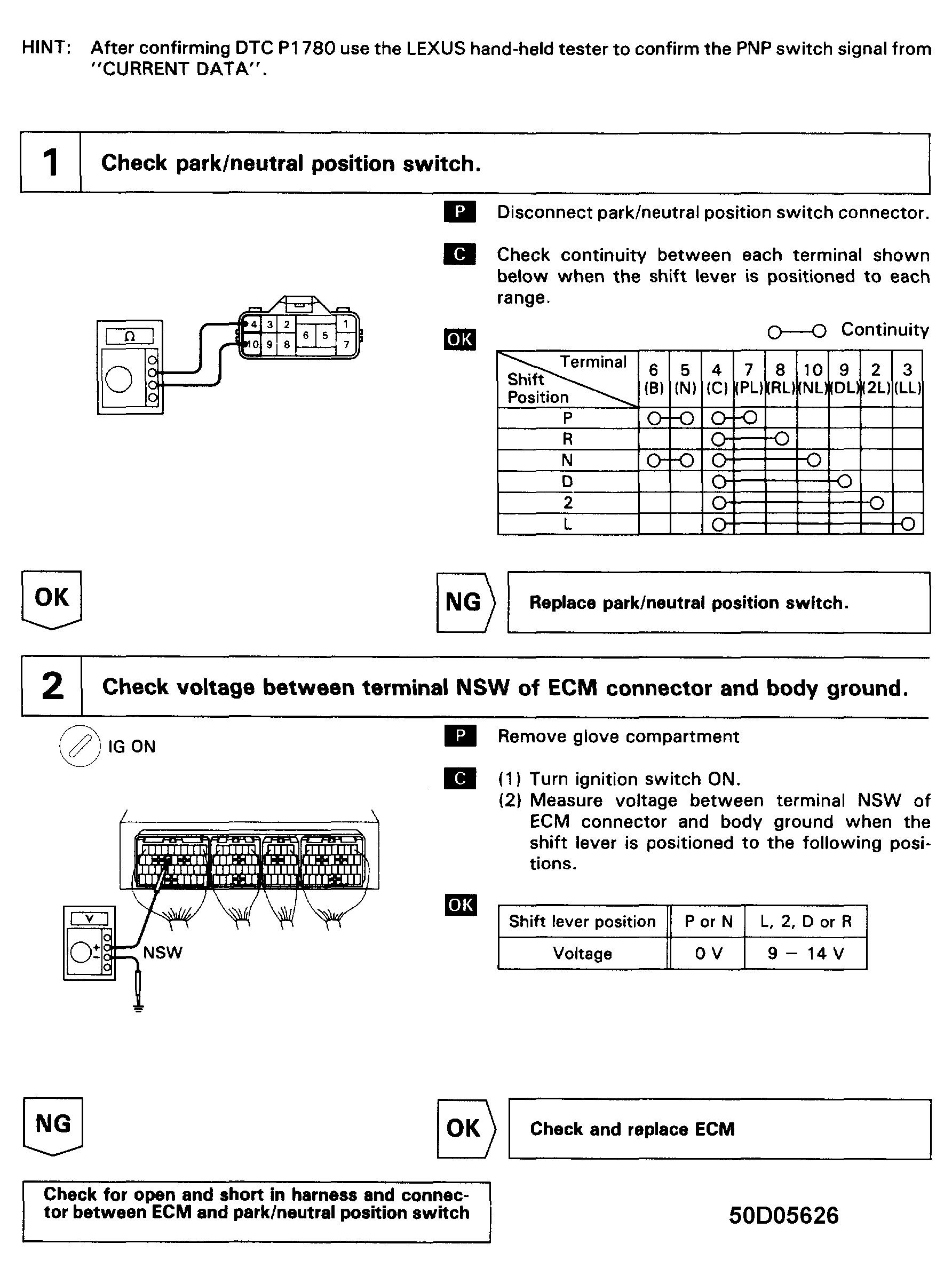

Fig 1: Code P1780 Flow Chart - Park/Neutral Position Switch Malfunction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
