Codes 17 & 18 - TRAC Motor Relay Circuit

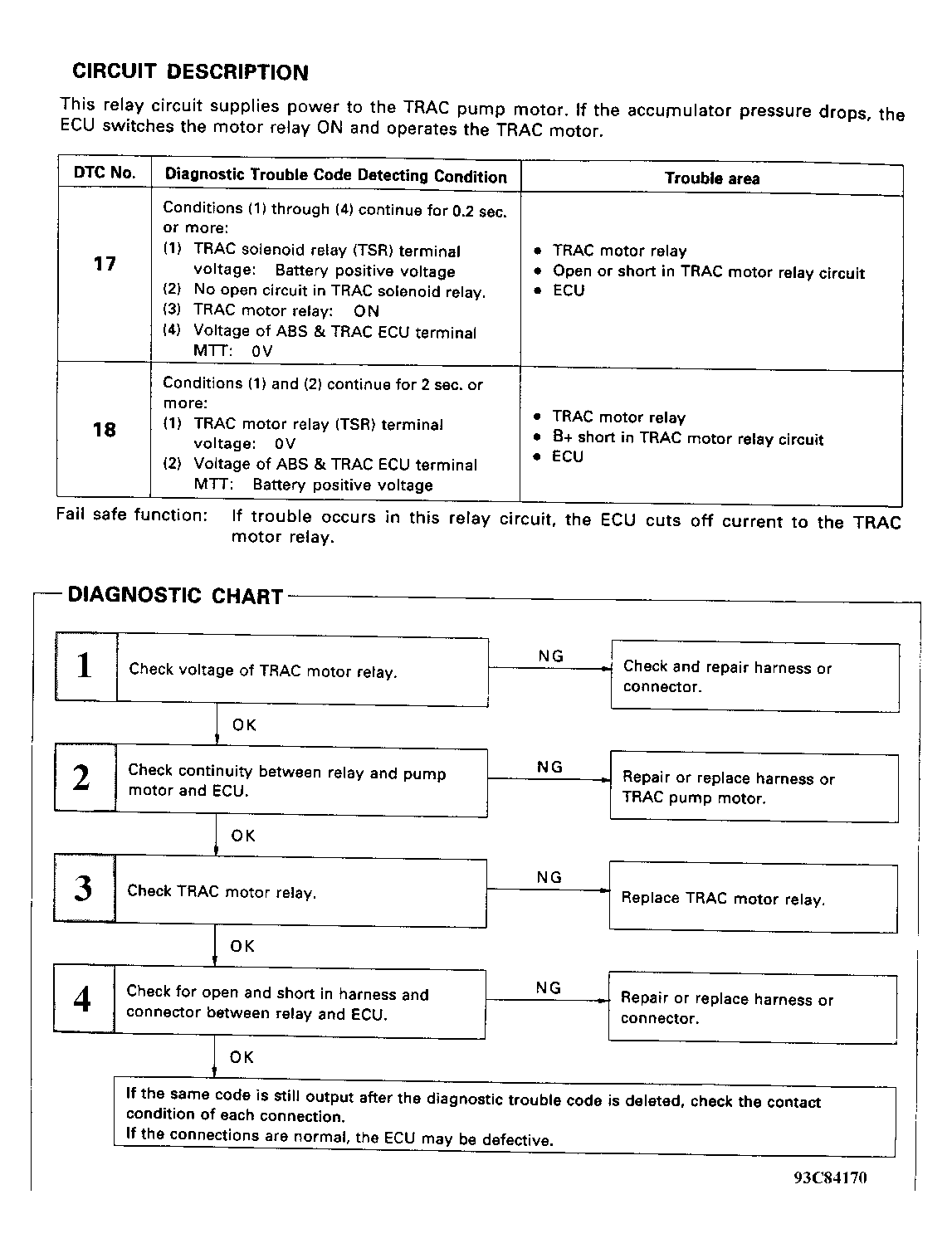

Fig 1: Codes 17 & 18 - TRAC Motor Relay Circuit (1 of 4)
G93C84170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

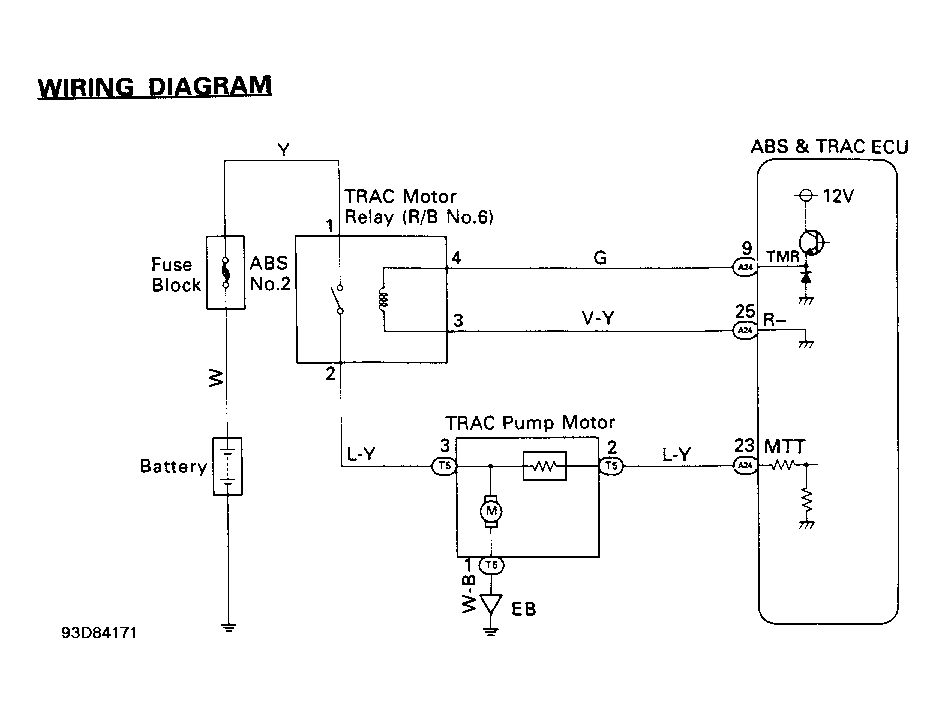

Fig 2: Codes 17 & 18 - TRAC Motor Relay Circuit (2 of 4)
G93D84171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

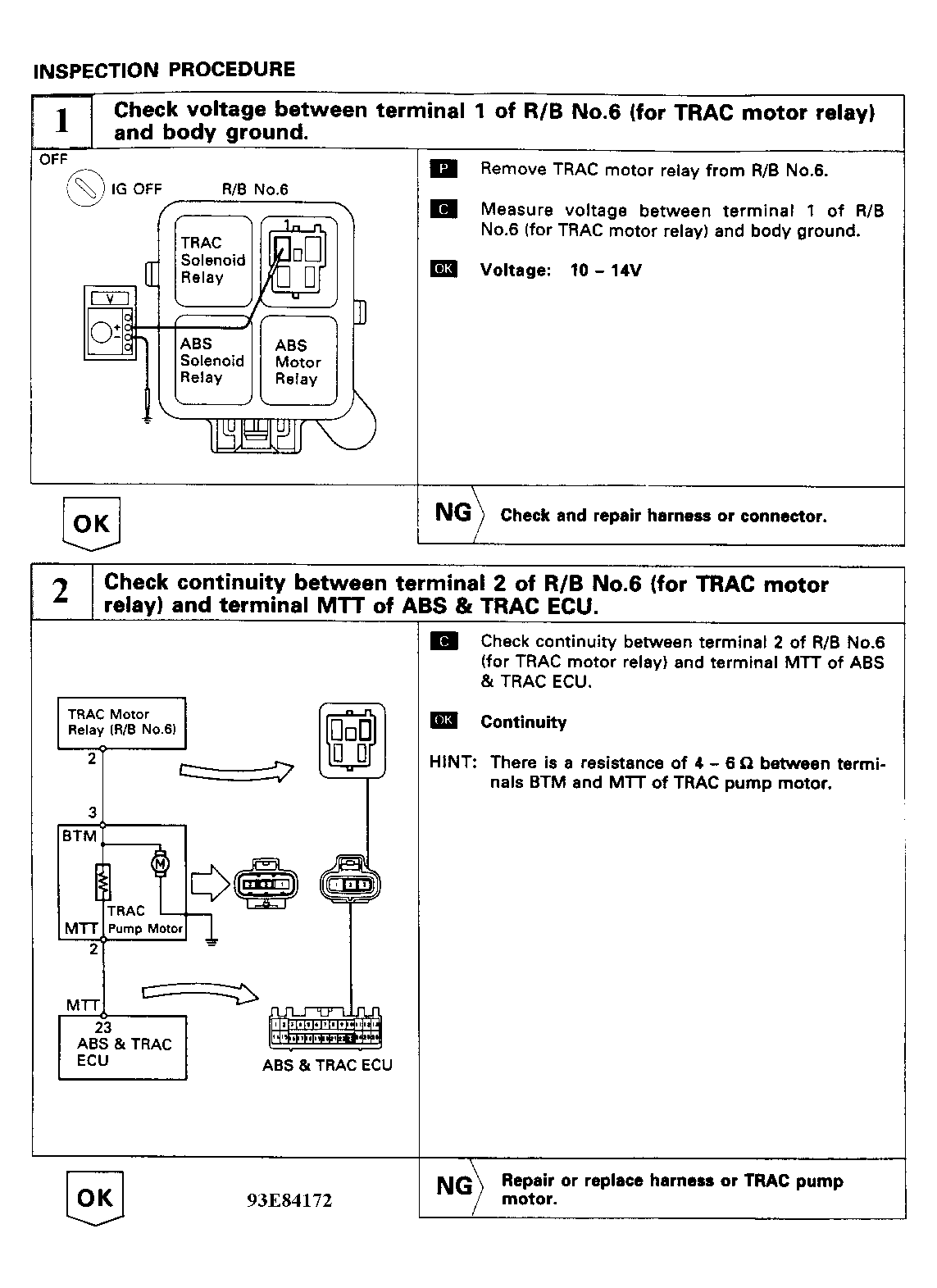

Fig 3: Codes 17 & 18 - TRAC Motor Relay Circuit (3 of 4)
G93E84172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

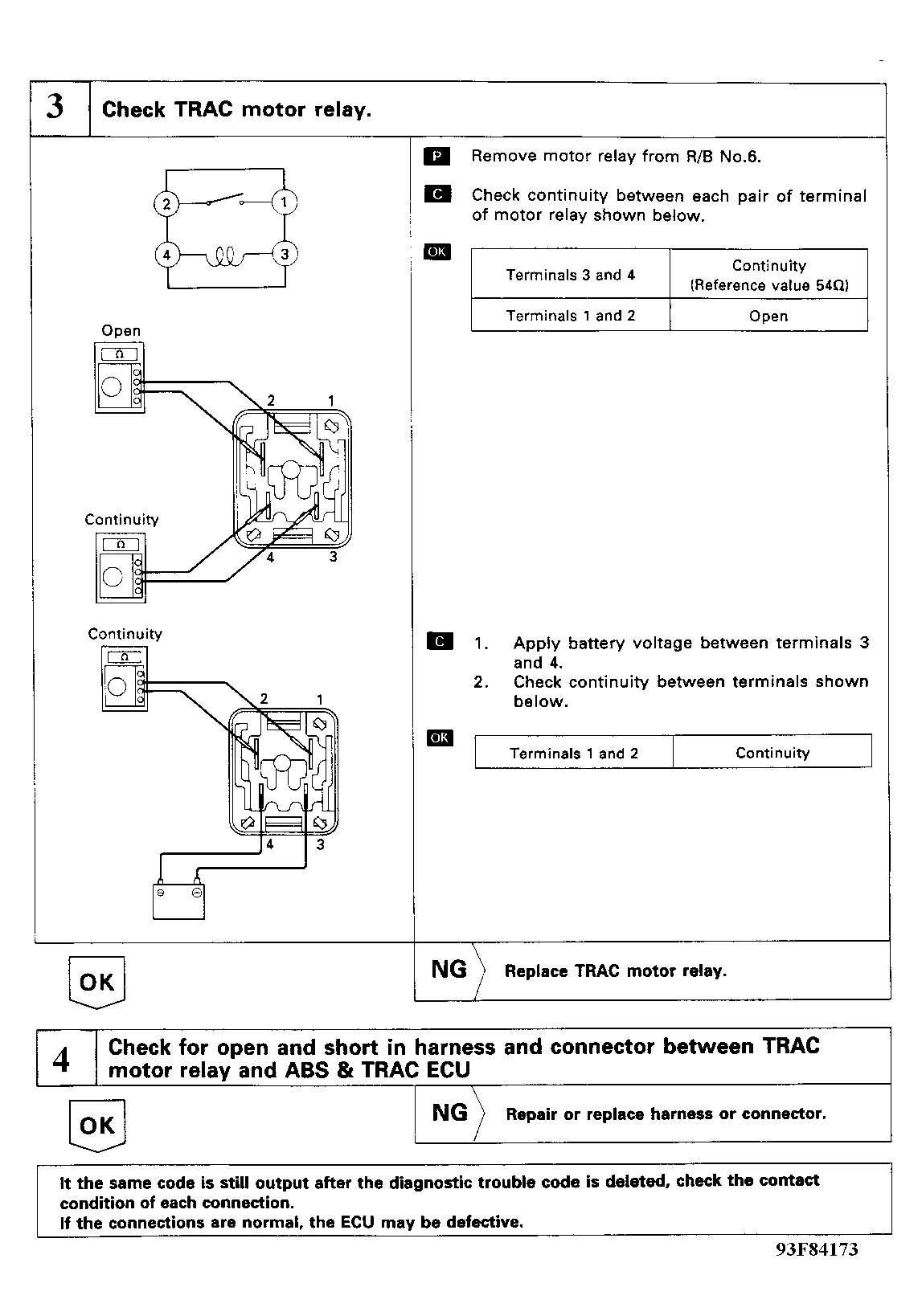

Fig 4: Codes 17 & 18 - TRAC Motor Relay Circuit (4 of 4)
G93F84173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
