Clutch Assembly: Installation

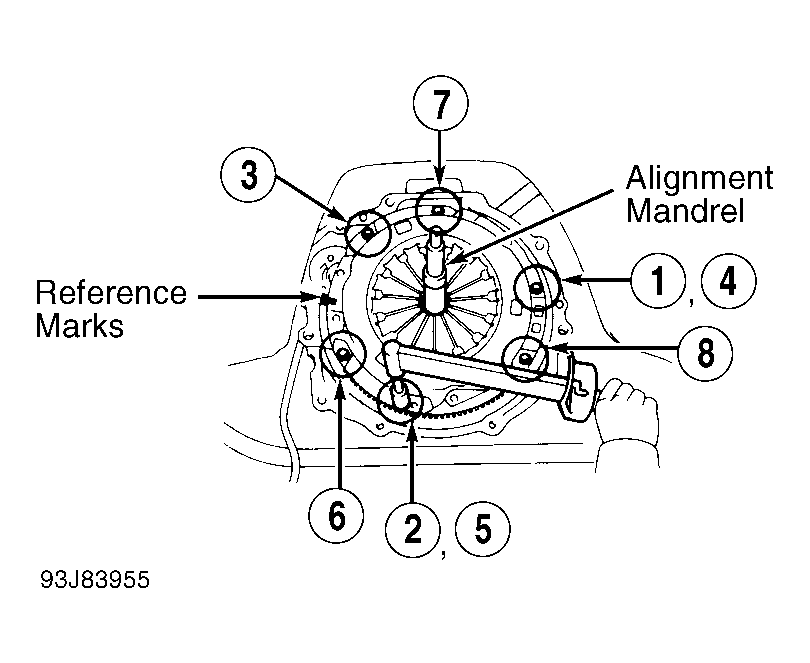

- Mount disc and cover onto flywheel with clutch alignment mandrel. Align reference marks on clutch cover and flywheel. Tighten topmost bolts from 3 near knock pins first. Tighten bolts evenly and gradually, making several passes until final torque is reached. See TORQUE SPECIFICATIONS . See Fig 1.

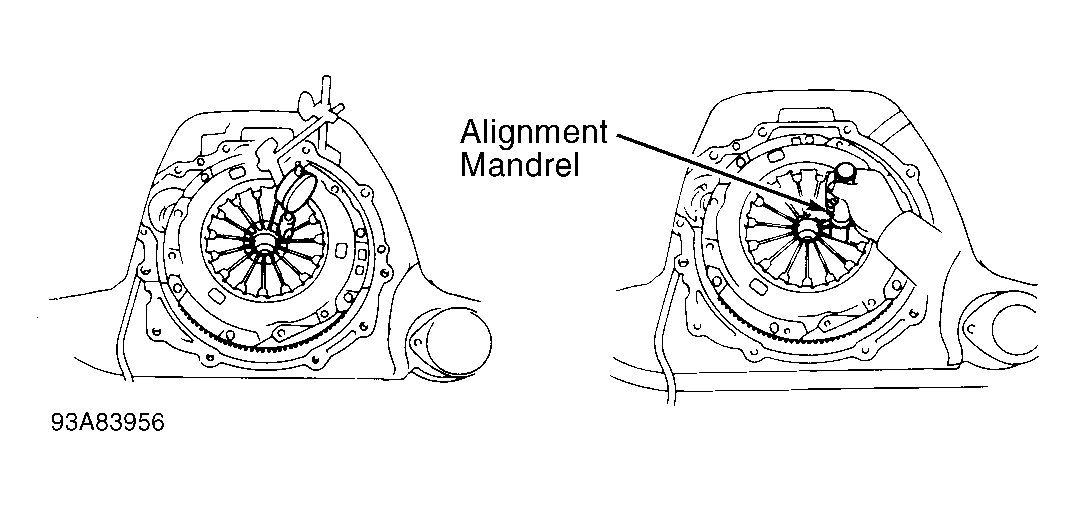

- With a dial indicator, check diaphragm spring tip alignment. If misalignment is greater than .020" (.5 mm), adjust diaphragm spring tips using Alignment Tool (09333-00013
). See Fig 2.
- Apply molybdenum disulfide lithium-based grease to release fork and hub contact points, release fork and push rod contact point, release fork pivot point and clutch disc spline.
- Install release bearing assembly to fork and then install together into transmission. Install boot. Reverse removal procedure to complete installation.
