Low-Speed Test

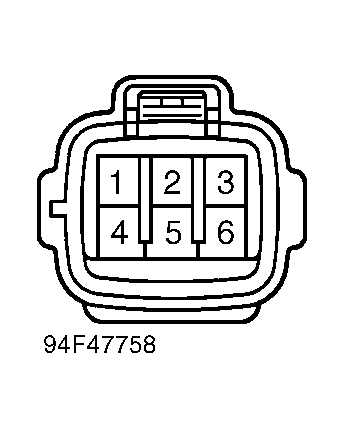

Disconnect wiper motor connector. Connect jumper wire between battery positive terminal and terminal No. 3 of wiper motor connector. See Figure. Ground terminal No. 1. Wiper motor should operate at low speed.
Disconnect wiper motor connector. Connect jumper wire between battery positive terminal and terminal No. 3 of wiper motor connector. See Figure. Ground terminal No. 1. Wiper motor should operate at low speed.
