Continuity Test

Disconnect combination switch connectors. Check for continuity between specified terminals. See Fig 1. See appropriate WIPER/WASHER SWITCH CONTINUITY table. If there is no continuity, replace switch. If there is continuity, apply battery voltage across terminals B16 and B18. Check continuity between terminals B7 and B18. If there is continuity, switch is okay. If there is no continuity, replace switch.

WIPER/WASHER SWITCH CONTINUITY

Switch Position

Terminals

Wiper OFF

Mist OFF ⁽¹⁾

B8 & B17

Mist ON ⁽²⁾

A14 & B8

Wiper INT

Mist OFF ⁽¹⁾

B8 & B17

Mist ON ⁽²⁾

A14 & B8

Wiper LOW

A14 & B8

Wiper HIGH

Mist OFF ⁽¹⁾

A7 & A14

Mist ON ⁽²⁾

A7, A14 & B8

Washer

OFF

⁽³⁾*

A6 & A13

⁽¹⁾	Lever in normal position.

⁽²⁾	Pull lever toward you.

⁽³⁾	No continuity between terminals A6 and A13.

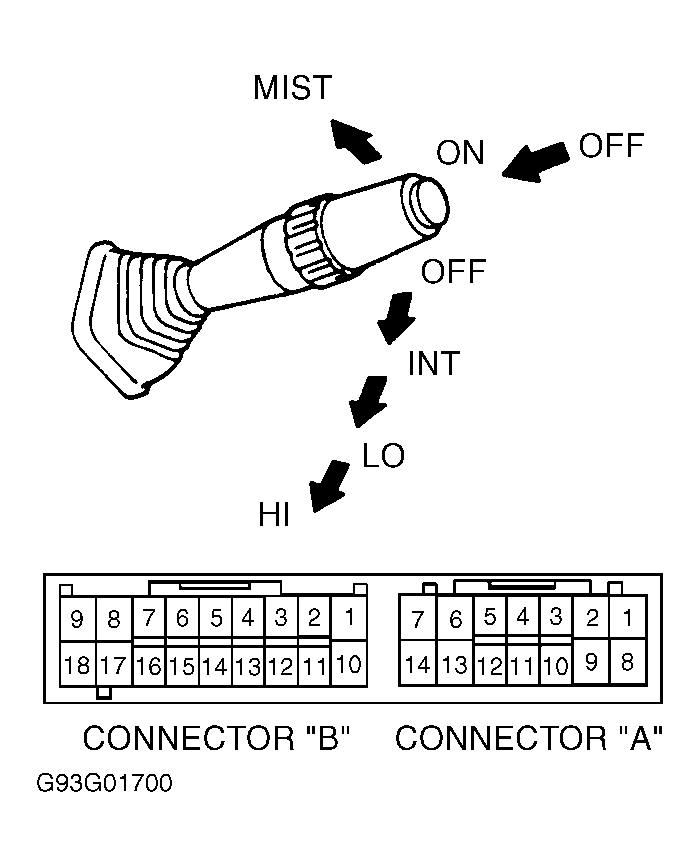

Fig 1: Identifying Wiper/Washer Switch Terminals (SC400)
