Code 55 - Brake Fluid Level Warn Switch Circuit

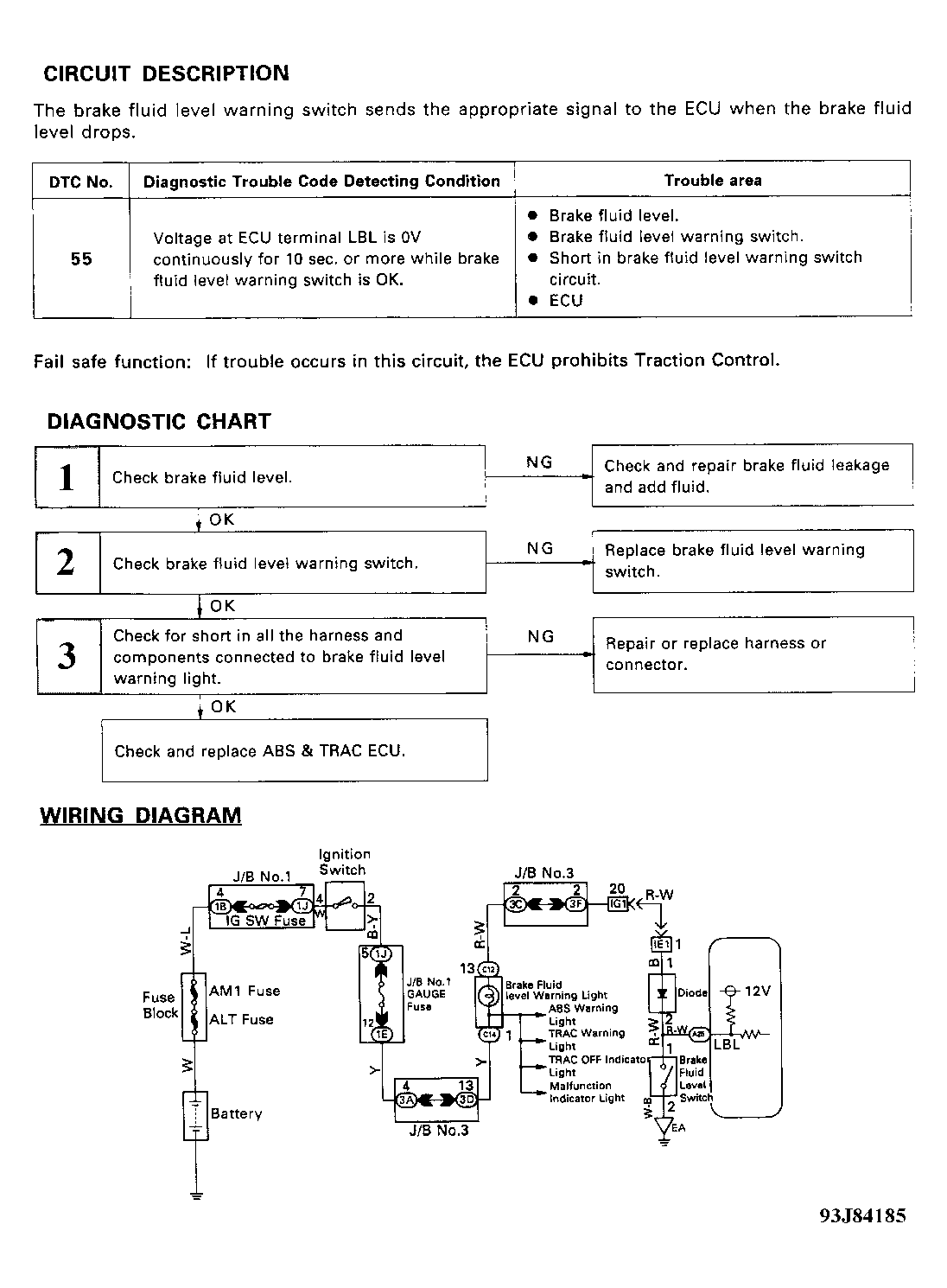

Fig 1: Code 55 - Brake Fluid Level Warn Switch Circuit (1 of 2)
G93J84185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

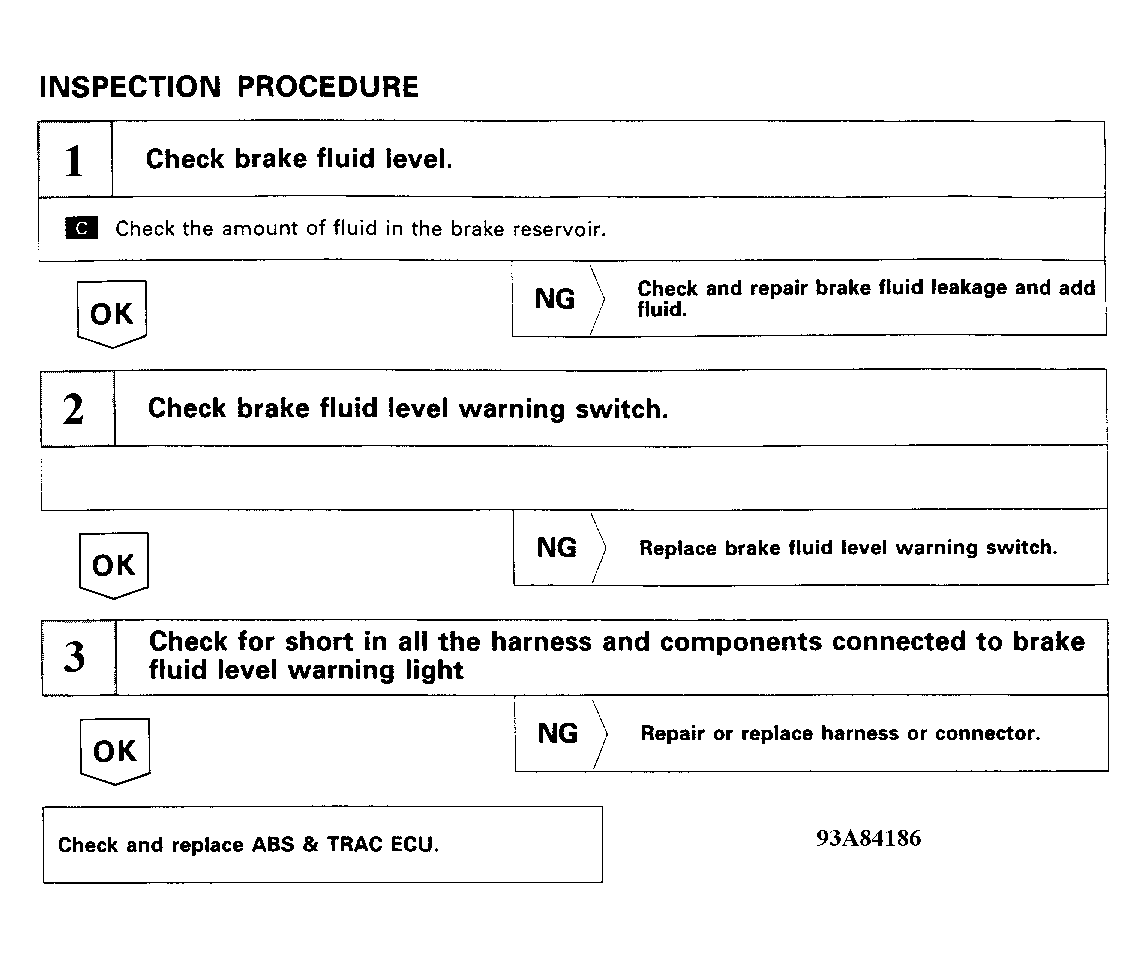

Fig 2: Code 55 - Brake Fluid Level Warn Switch Circuit (2 of 2)
G93A84186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
