Power Window Switch: Circuit

Disconnect the connector from the switch and inspect the connector on the wire harness side. See Fig 1. If the circuit is not as specified, inspect the circuits connected to other parts. See WIRING DIAGRAMS .

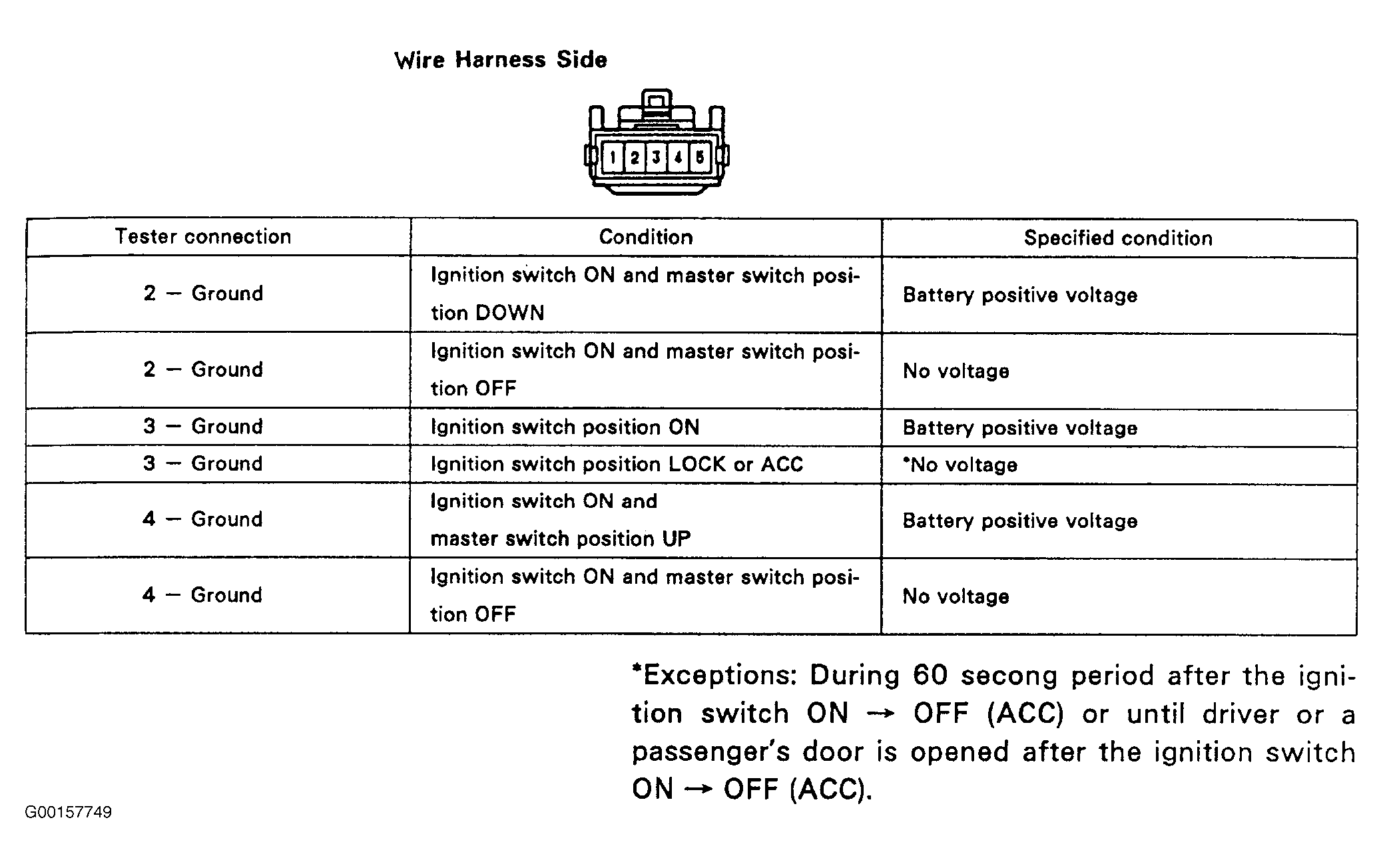

Fig 1: Testing Power Window Switch Circuit
