Wiper Control Relay Circuit Test

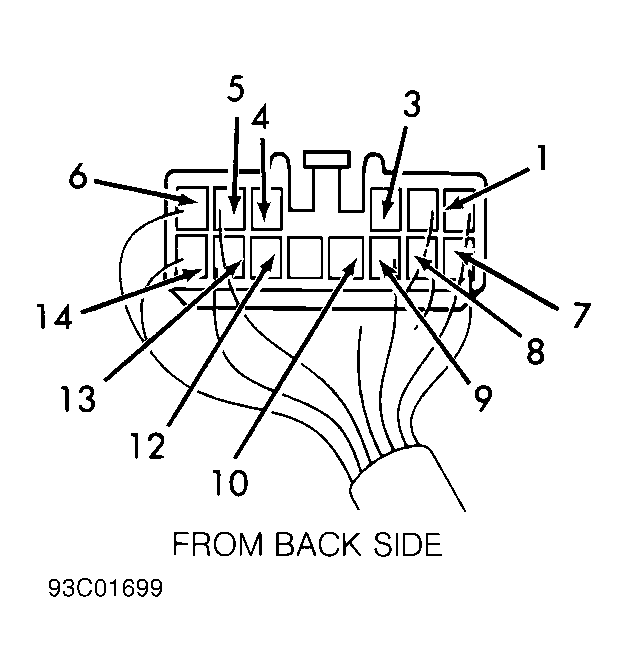

Leave wiper control relay connector attached. Turn ignition on. Check for continuity or voltage between chassis ground and specified terminal at wiper control relay connector. See Fig 1. See WIPER CONTROL RELAY CIRCUITS TEST table. If continuity or voltage is not as specified, repair faulty circuit or component.
WIPER CONTROL RELAY CIRCUITS TEST
| Terminal No. (Wire Color) |
Voltage |
| 1 (Blue/White) |
| Washer On |
Zero |
| Washer Off |
Battery |
| 3 (Light Green/Red) |
| Wiper Intermittent Slow |
Zero |
| Wiper Off Or Intermittent Fast |
Battery |
| 4 (White/Green) |
| Wiper High |
Zero |
| Wiper Off Or Intermittent Slow |
Battery |
| 5 (Red) |
| Wiper Off Or High |
Zero |
| Wiper Intermittent Or Low |
Battery |
| 6 (Yellow/Green) |
| Wiper Off Or Intermittent Slow |
Zero |
| Wiper High |
Battery |
| 7 (Blue) |
| Ignition Off Or ACC |
Zero |
| Ignition On |
Battery |
| 8 (Red/Blue) |
| Wiper Off To Intermittent Or Low |
* |
| Wiper Intermittent Or Low To High |
* |
| 9 (Red/Yellow) |
| Wiper High To Intermittent Or Low |
* |
| Wiper Intermittent Or Low To Off |
* |
| 10 (Blue/Black) |
| Wiper Off |
Zero |
| Wiper Low |
Battery |
| 12 (Red/Black) |
| Wiper Intermittent Or Low |
Zero |
| Wiper Off Or High |
Battery |
| 13 (Green/Red) |
Zero |
| 14 (White/Black) |
* |
