Light Failure Sensor Inspection

LIGHT FAILURE SENSOR TEST

Terminal Condition Value
1 Always Continuity
4 Always Continuity
9 Always Continuity
2 Ignition; Lock Or ACC Zero Volts
2 Ignition On Battery Voltage
3 Engine Not Running Zero Volts
3 Engine Running Battery Voltage
7 Stoplight Switch Off Zero Volts
7 Stoplight Switch On Battery Voltage
10 Light Control Switch Off Zero Volts
10 Head Or Tail Lights On Battery Voltage

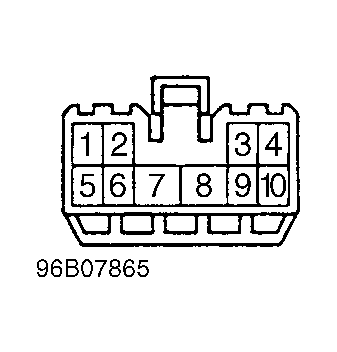

Fig 1: Light Failure Sensor Wiring Harness Connector Terminal ID
G96B07865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
