Component Location

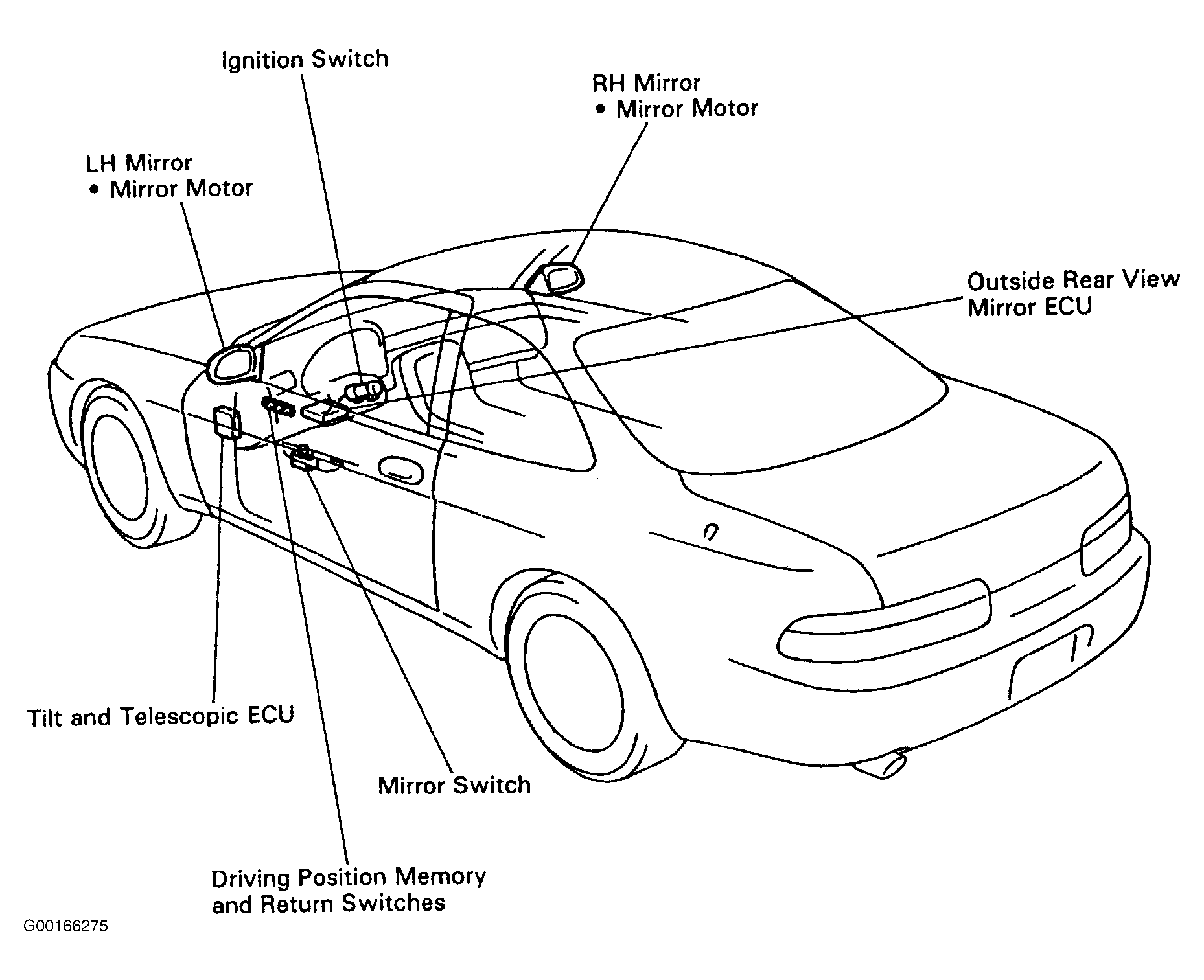

Fig 1: Locating Power Mirror Control System Components
G00166275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

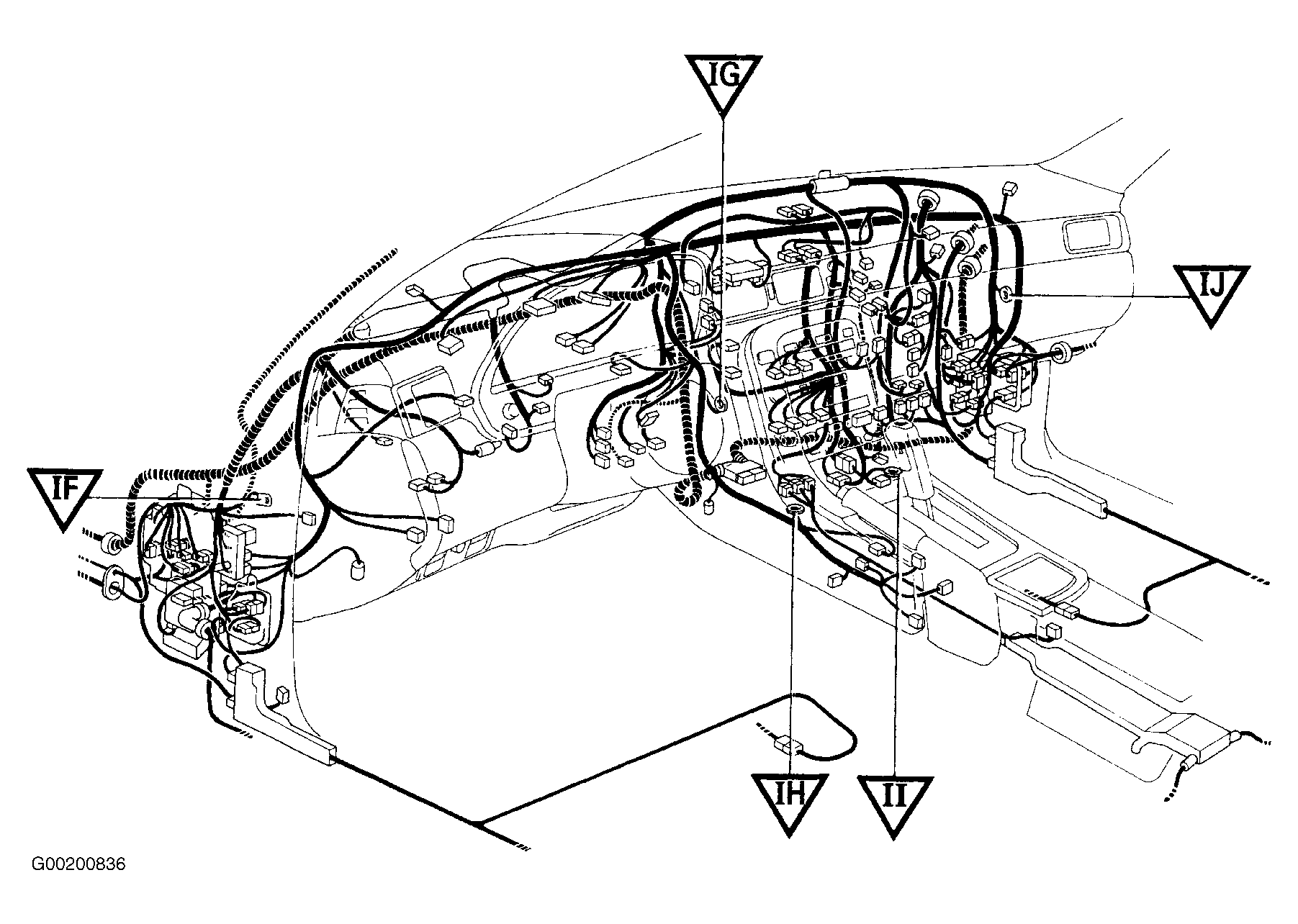

Fig 2: Locating Grounds IF, IG & IH
G00200836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
