Mirror Switch

Inspect the switch continuity. See Fig 1-Fig 4 . If continuity is not as specified, replace the switch.

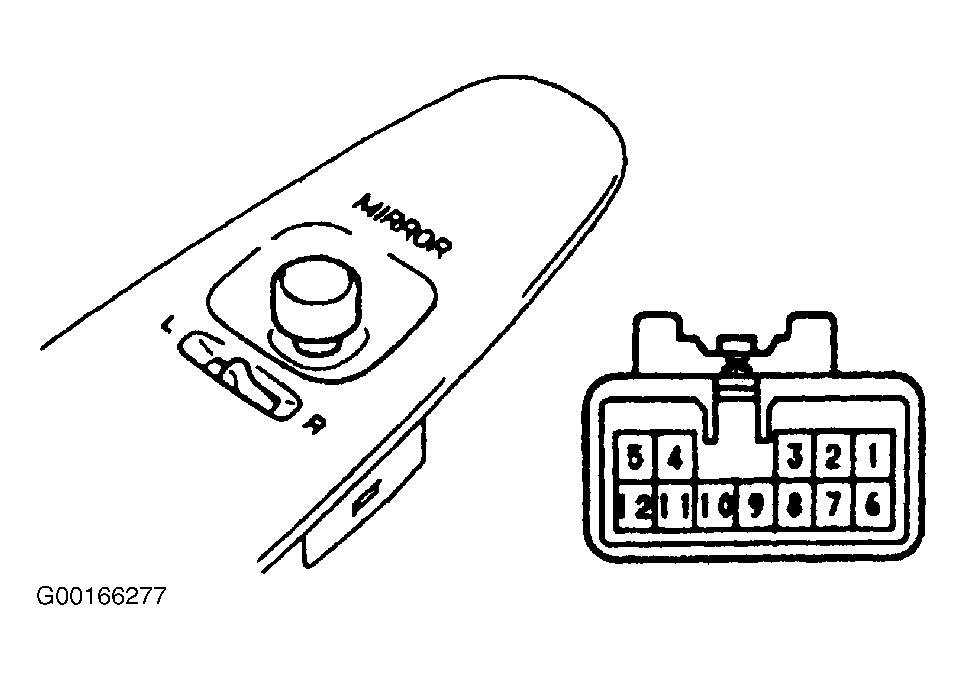

Fig 1: Identifying Mirror Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

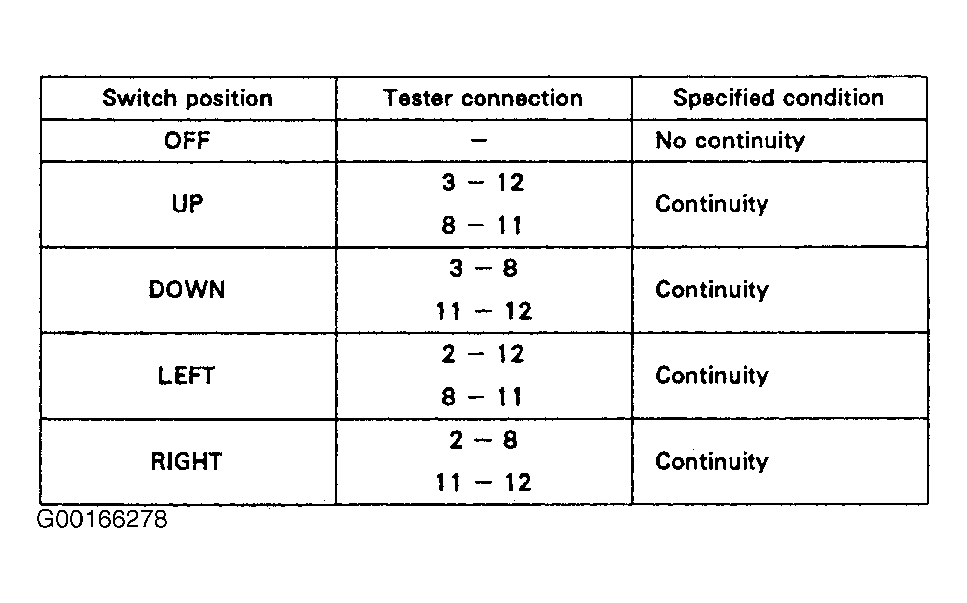

Fig 2: Inspecting Left Side Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Inspecting Right Side Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

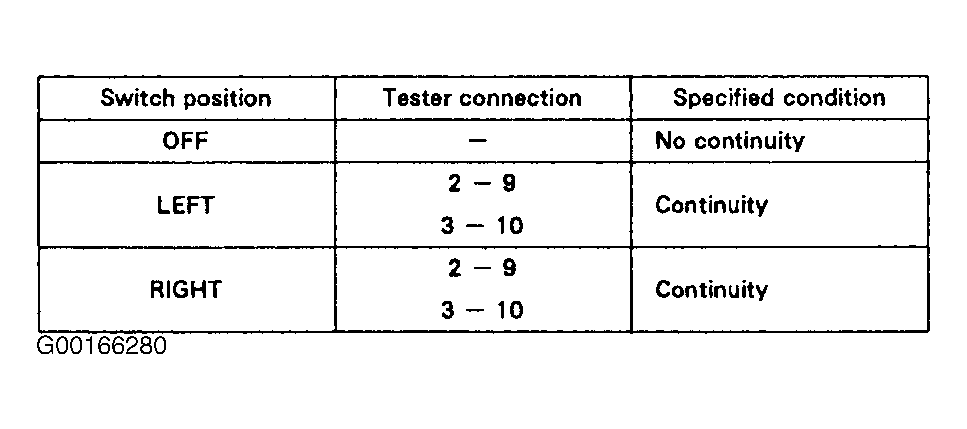

Fig 4: Inspecting Left/Right Select Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
