Connector View

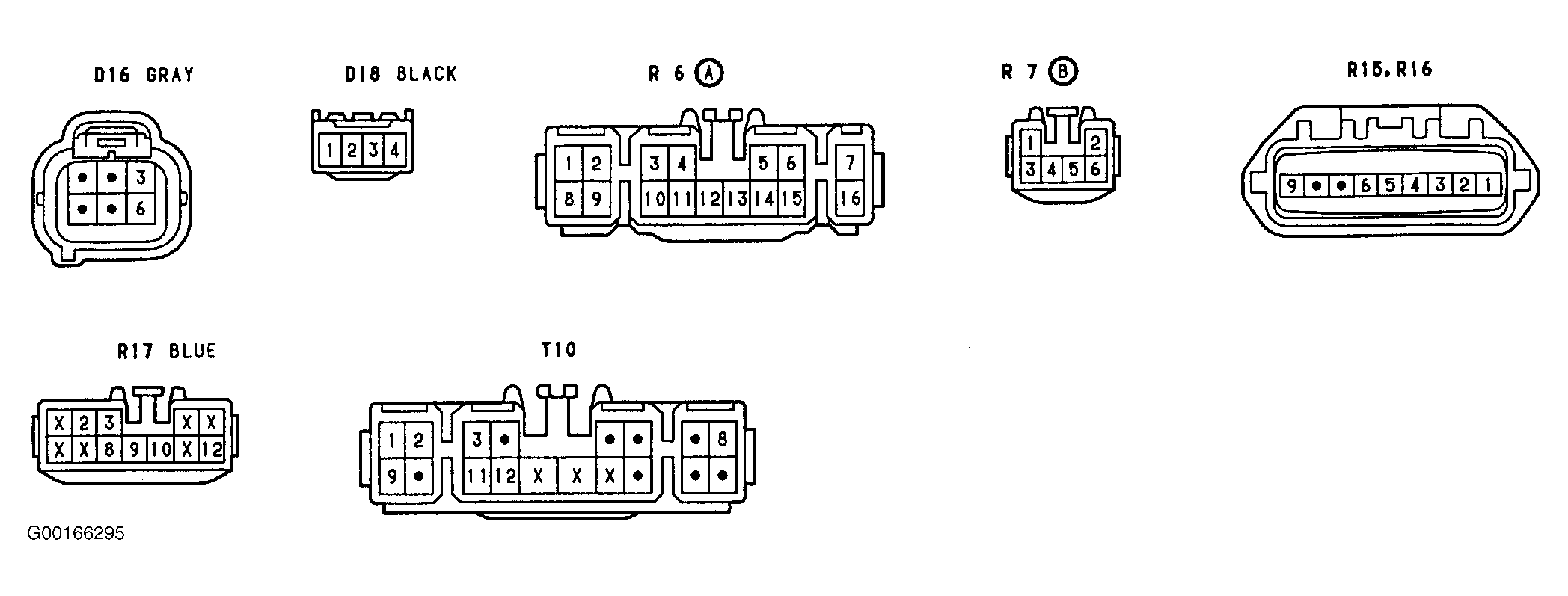

Fig 1: Mirror Connector View With Position Memory
G00166295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

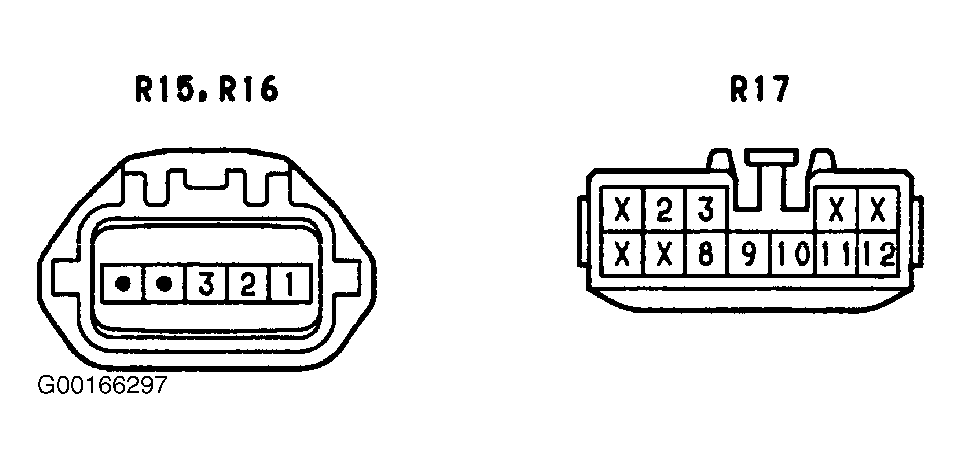

Fig 2: Mirror Connector View Without Position Memory
G00166297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
