Power Mirrors - With & W/O Memory System: Troubleshooting

The most likely causes of the malfunction are shown in the order of their probability. Inspect each part in order and replace the part when it is found to be faulty. See Fig 1.

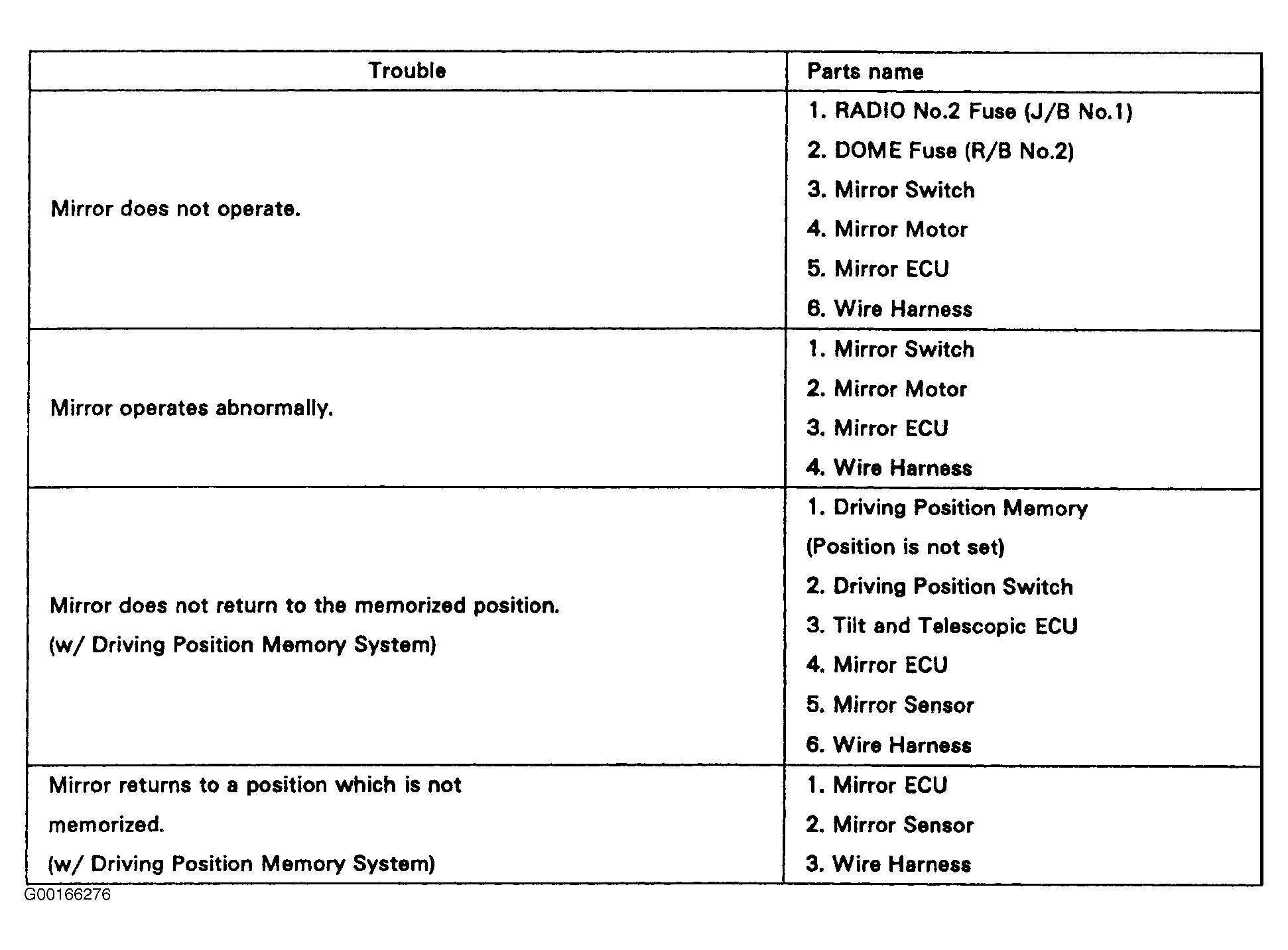

Fig 1: Troubleshooting Table For Power Mirrors
G00166276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
