Code 14 - Ignition Signal (IGNITOR No. 1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Code 14 - Ignition Signal (IGNITOR No. 1)

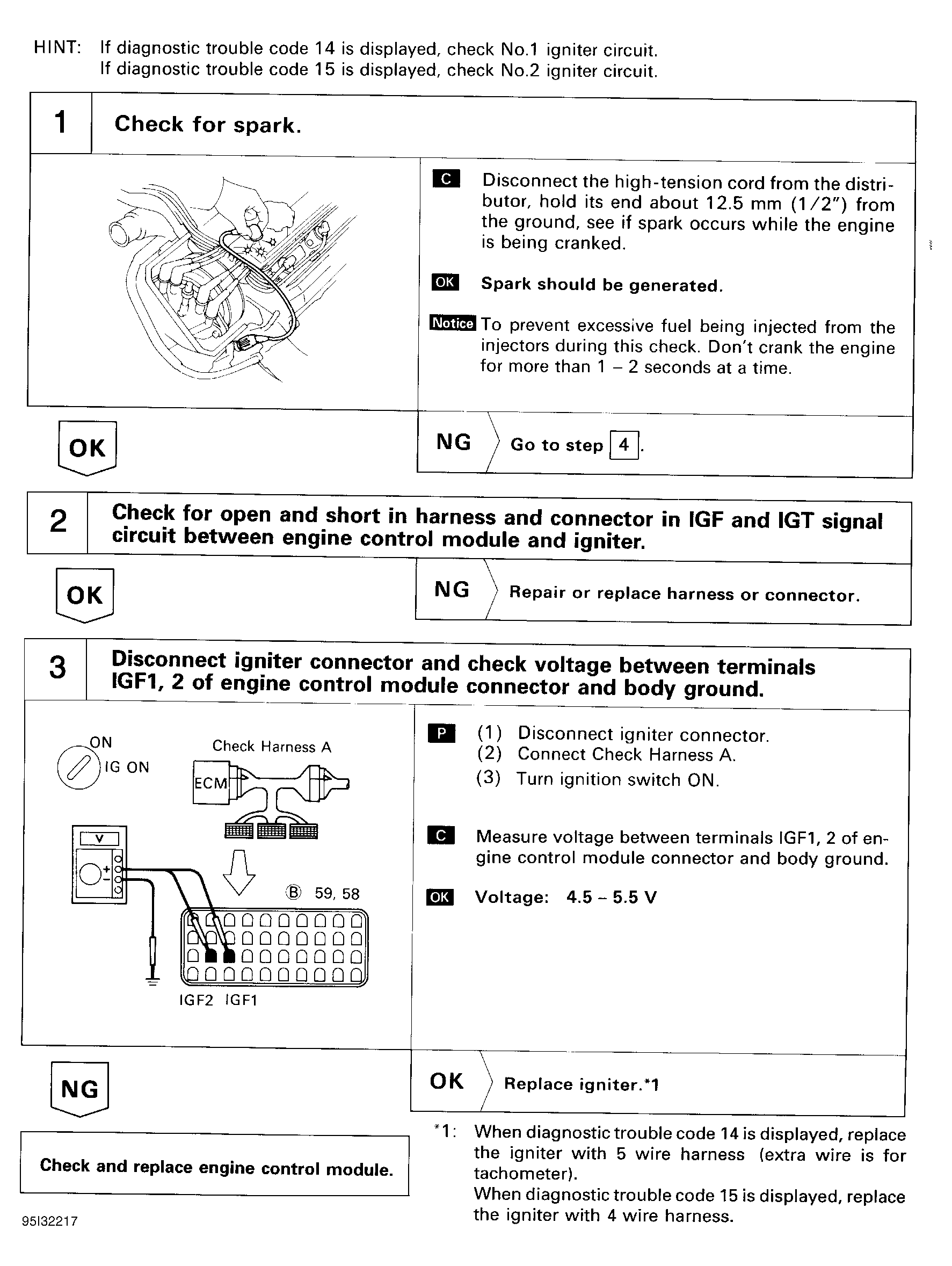

Fig 1: Code 14 Flow Chart (1 Of 5) Ignition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

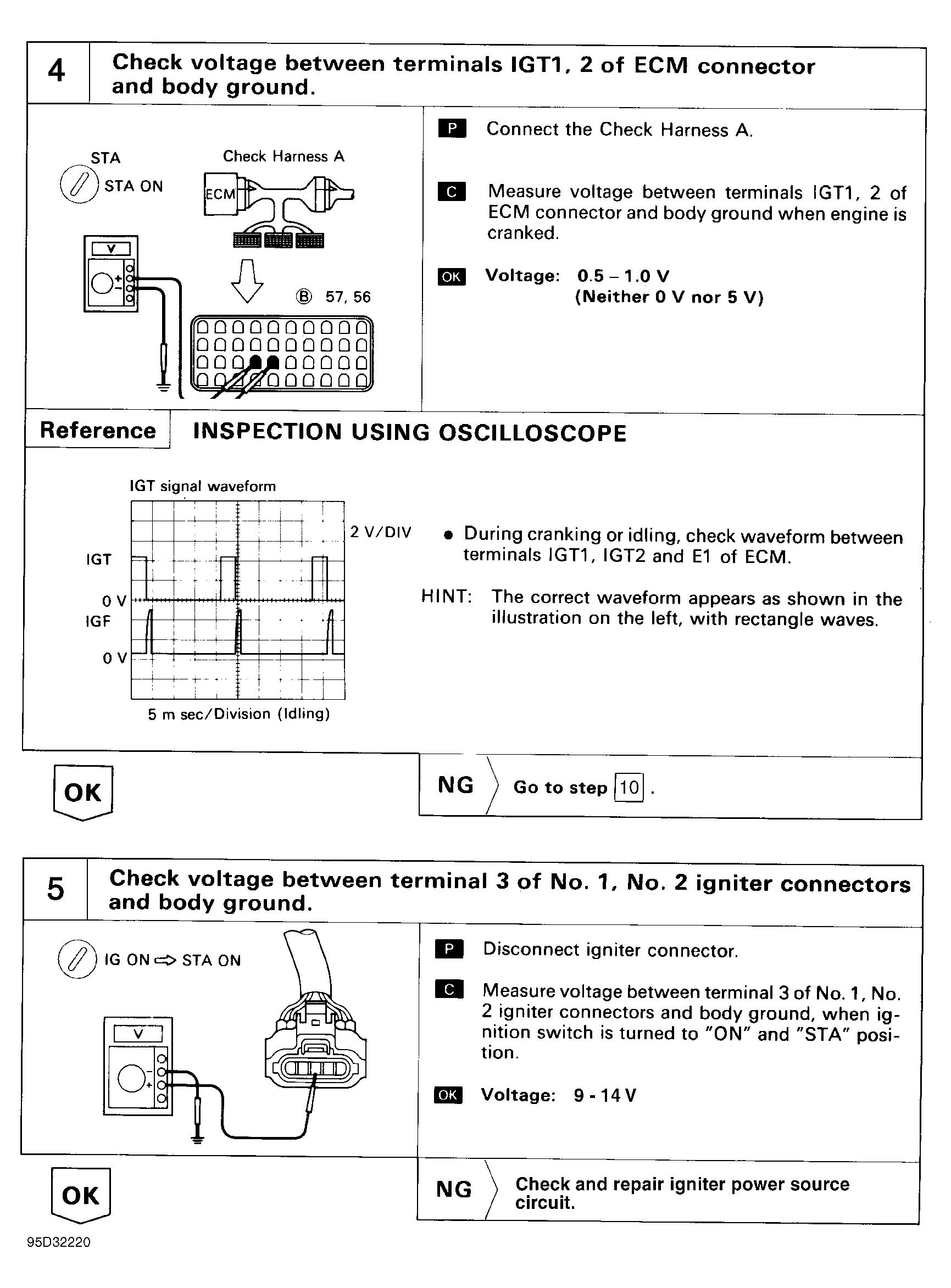

Fig 2: Code 14 Flow Chart (2 Of 5) Ignition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

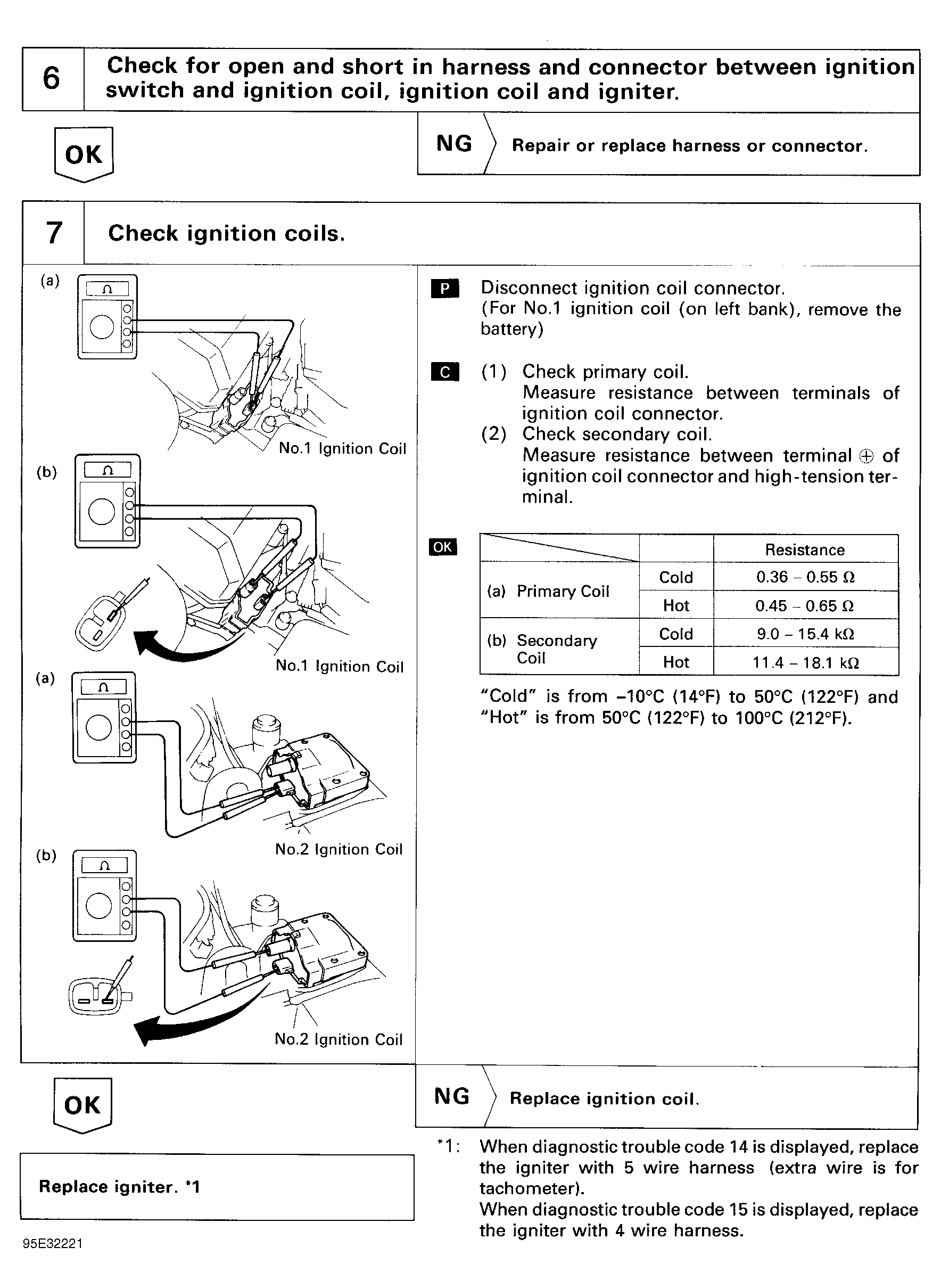

Fig 3: Code 14 Flow Chart (3 Of 5) Ignition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Code 14 Flow Chart (4 Of 5) Ignition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

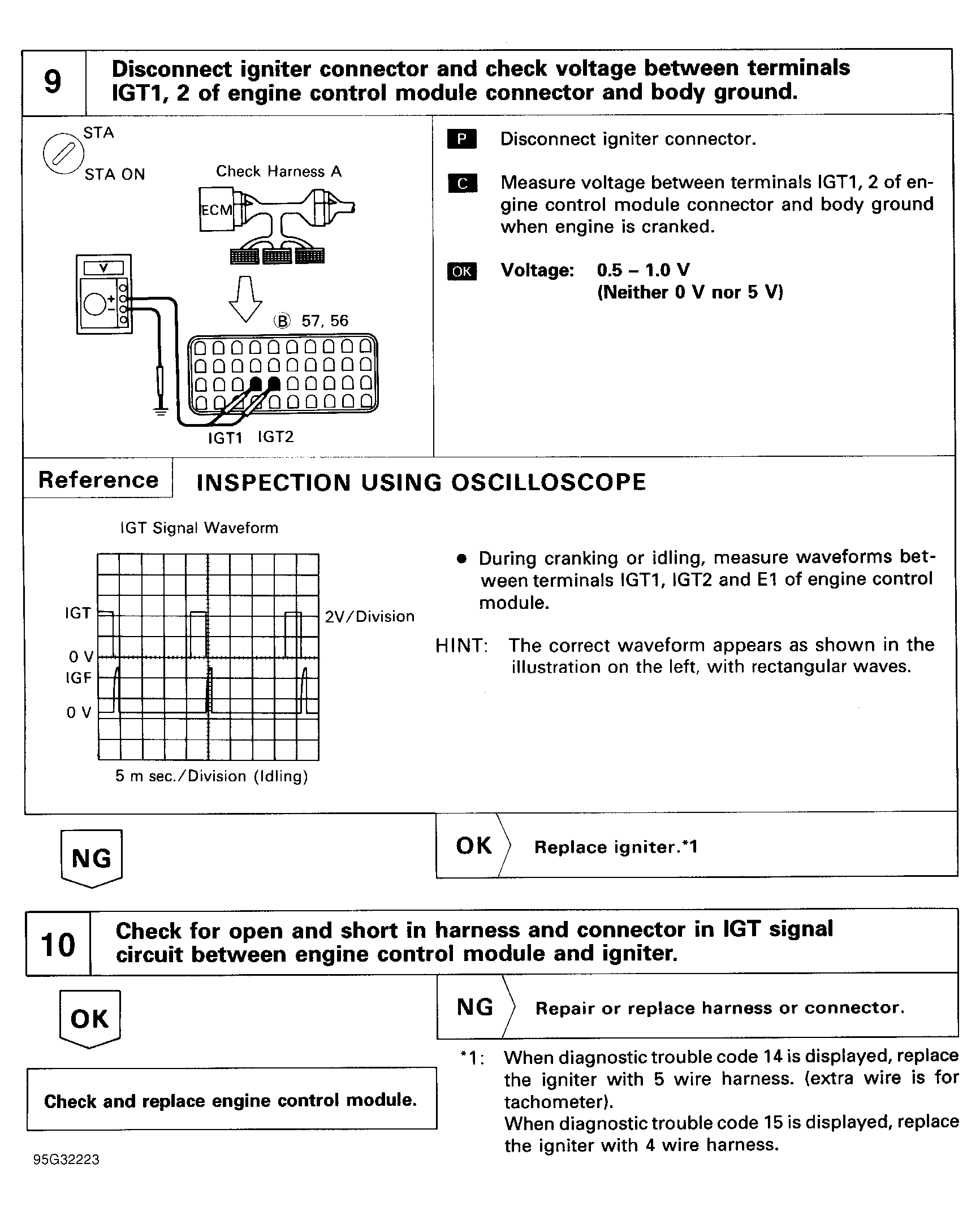

Fig 5: Code 14 Flow Chart (5 Of 5) Ignition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
