Continuity Test

Disconnect combination switch connectors. Check for continuity between specified terminals. See Fig 1. See appropriate WIPER/WASHER SWITCH CONTINUITY table. If continuity is not as specified, replace combination switch.

WIPER/WASHER SWITCH CONTINUITY

Switch Position

Continuity Between Terminals No.

Wiper Off

Mist Off ⁽¹⁾

7 & 16

Mist On ⁽²⁾

7 & 17

Wiper Intermittent

Mist Off ⁽¹⁾

2 & 4; 7 & 16

Mist On ⁽²⁾

2 & 4; 7 & 17

Wiper Low

7 & 17

Wiper High

1 & 2; 8 & 17

Washer

Off

⁽³⁾*

2 & 11

⁽¹⁾	Lever in normal position.

⁽²⁾	Pull lever toward you.

⁽³⁾	No continuity between terminals No. 2 and 11.

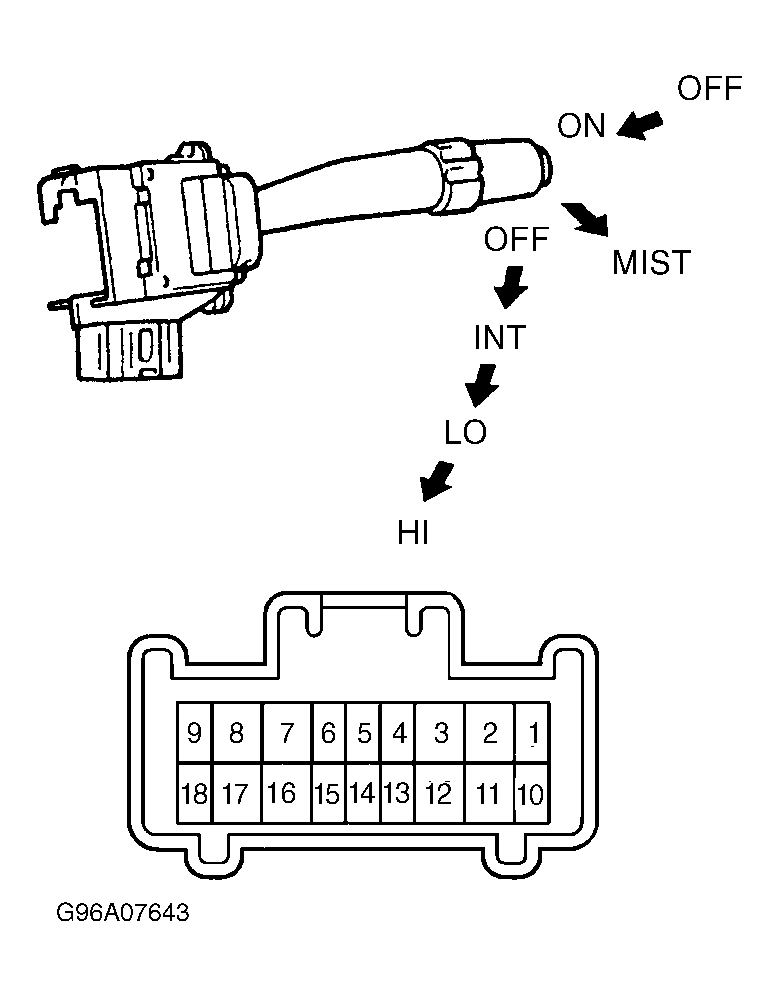

Fig 1: Identifying Wiper/Washer Switch Terminals

NOTE: Information on interval switch resistance testing for is not available from manufacturer.
