Circuit Testing: Notes

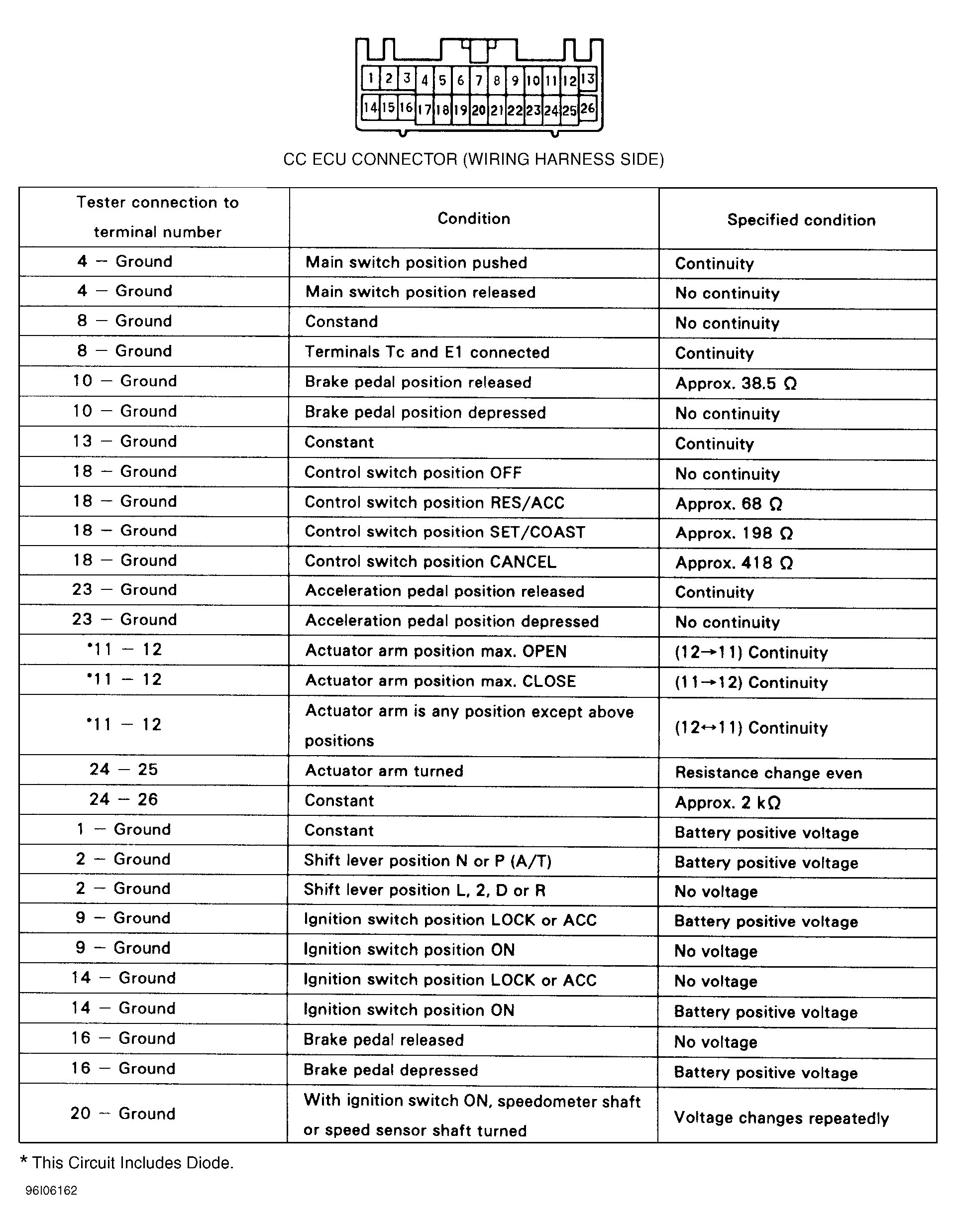

NOTE: To identify CC ECU connector terminals, see Figure. To help identify all other cruise control related connector terminals and wire colors, see WIRING DIAGRAM .
