Stoplight Switch Test

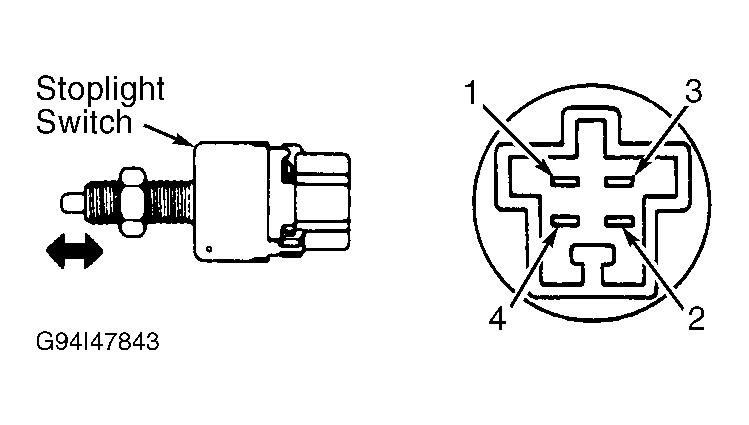

Disconnect stoplight switch connector. Check for continuity between the stoplight switch terminals. See Fig 1. Refer to the TESTING STOPLIGHT SWITCH table. If continuity is not as specified, replace stoplight switch.
TESTING STOPLIGHT SWITCH
| Condition | Terminals No. | Continuity | |
|---|---|---|---|
| Brake Pedal | |||
| Depressed | 1 & 3 | Yes | |
| Released | 2 & 4 | Yes | |
