Power Mirror Switch Test
NOTE:
Mirror motor connectors may vary in configuration from vehicle to vehicle of the same model.

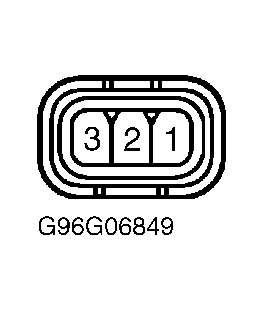

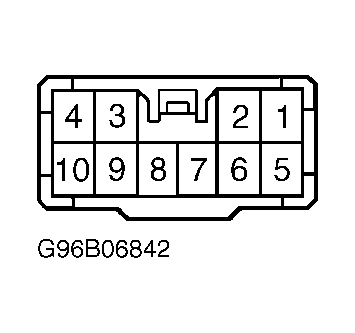

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using ohmmeter, check continuity between appropriate mirror switch terminals. Continuity should exist between specified terminals. See POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1- Fig 2 . If switch fails any test, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | (1) Terminals No. | |||
|---|---|---|---|---|
| Switch In Off Position | ||||
| Up | 3 & 4 | |||
| Down | 1 & 3 | |||
| Left | 3 & 4 | |||
| Right | 1 & 3 | |||
| Switch In Left Position | ||||
| Up | 1 & 10; 3 & 4 | |||
| Down | 1 & 3; 4 & 10 | |||
| Left | 1 & 9; 3 & 4 | |||
| Right | 1 & 3; 4 & 9 | |||
| Switch In Right Position | ||||
| Up | 1 & 6; 3 & 4 | |||
| Down | 1 & 3; 4 & 6 | |||
| Left | 1 & 2; 3 & 4 | |||
| Right | 1 & 3; 2 & 4 | |||
|
||||
