No.1 Vehicle Speed Sensor Assembly Replacement

1. DISCONNECT NO.1 VEHICLE SPEED SENSOR CONNECTOR.

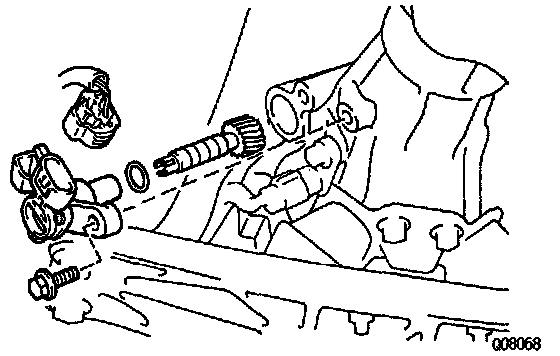

2. REMOVE NO.1 VEHICLE SPEED SENSOR ASSEMBLY.
- Remove the bolt and No.1 vehicle speed sensor assembly.
- Remove the speedometer driven gear and O-ring from the No.1 vehicle speed sensor.
3. INSTALL NO.1 VEHICLE SPEED SENSOR ASSEMBLY.
- Coat a new O-ring with ATF.
- Install the O-ring and speedometer driven gear to the No.1 vehicle speed sensor.
- Install the No.1 vehicle speed sensor to the extension housing and torque the bolt.

Torque: 16 N.m (160 kgf.cm, 12 ft.lb.)

4. CONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR.
