Component Locations
Parts Location:

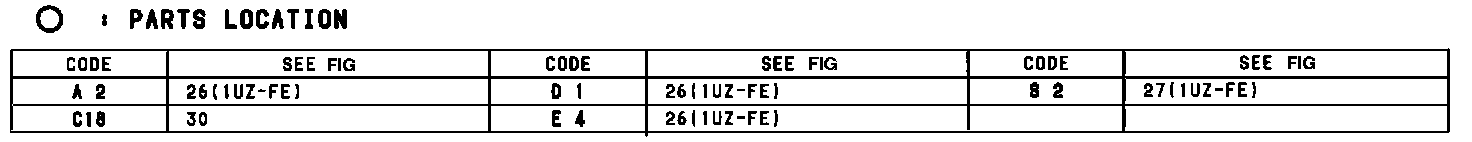

PARTS LOCATION

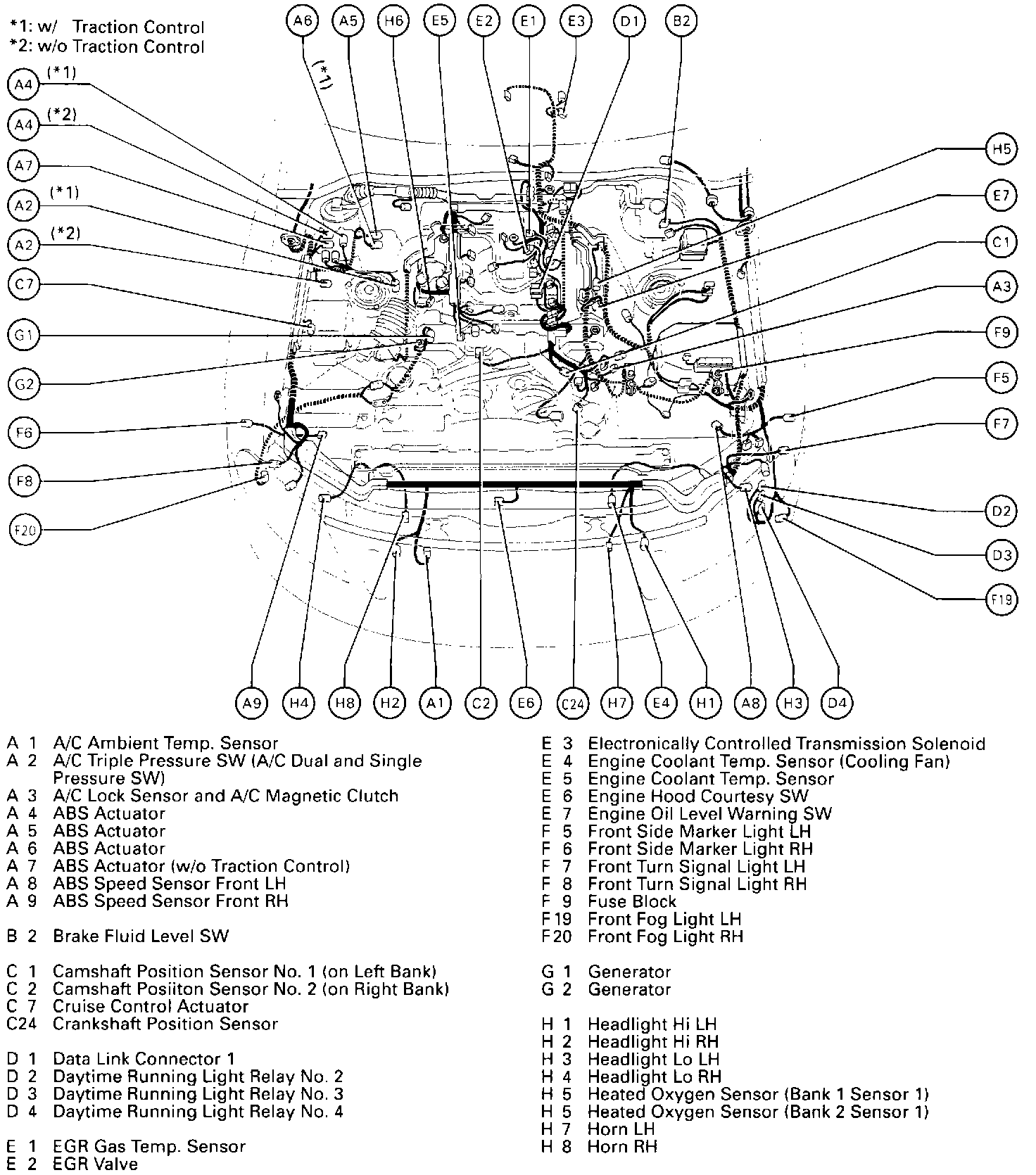

Position Of Part In Engine Compartment (Part 1 Of 2) (Fig 26):
FIG 26

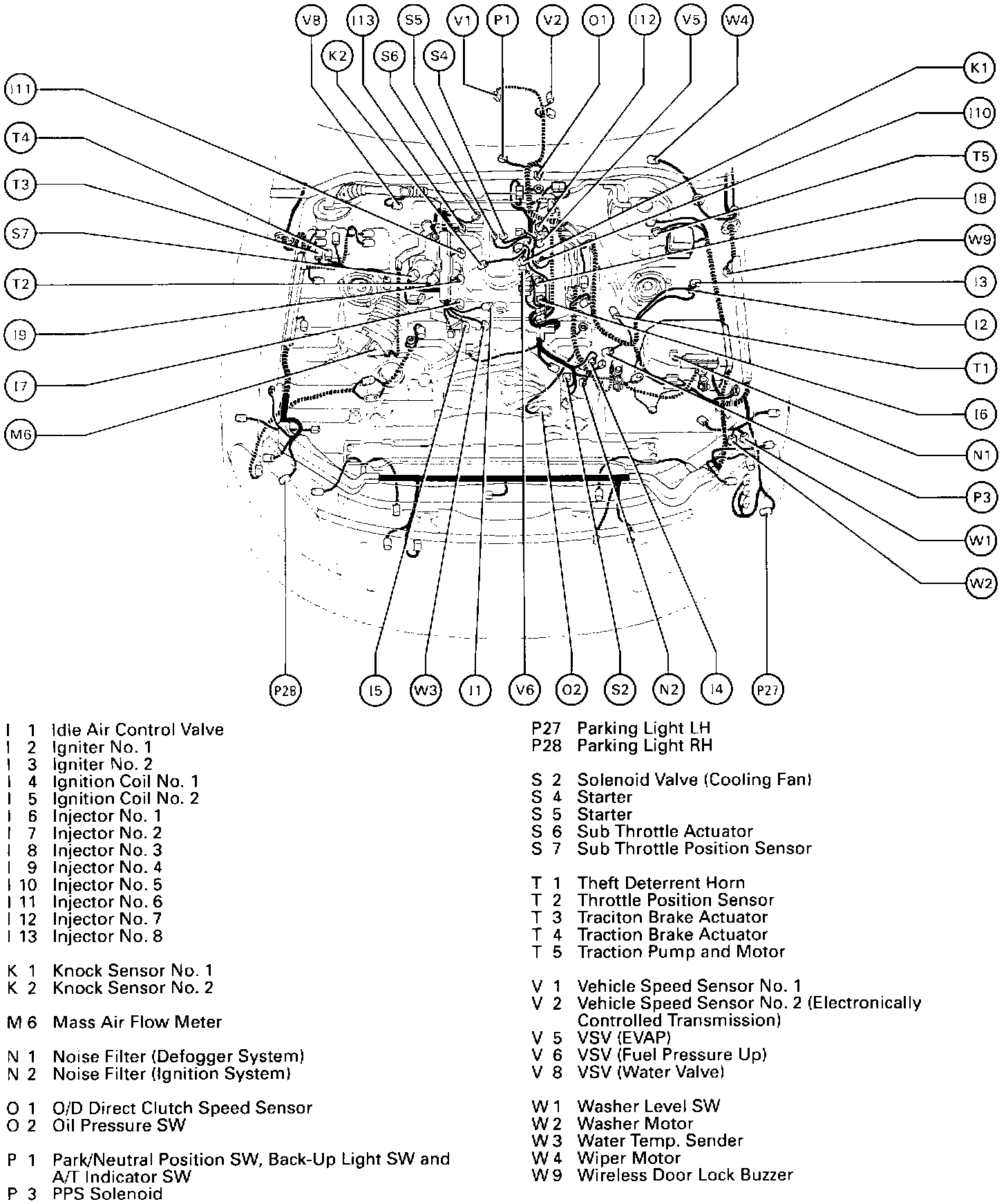

Position Of Part In Engine Compartment (Part 2 Of 2) (Fig 27):
FIG 27

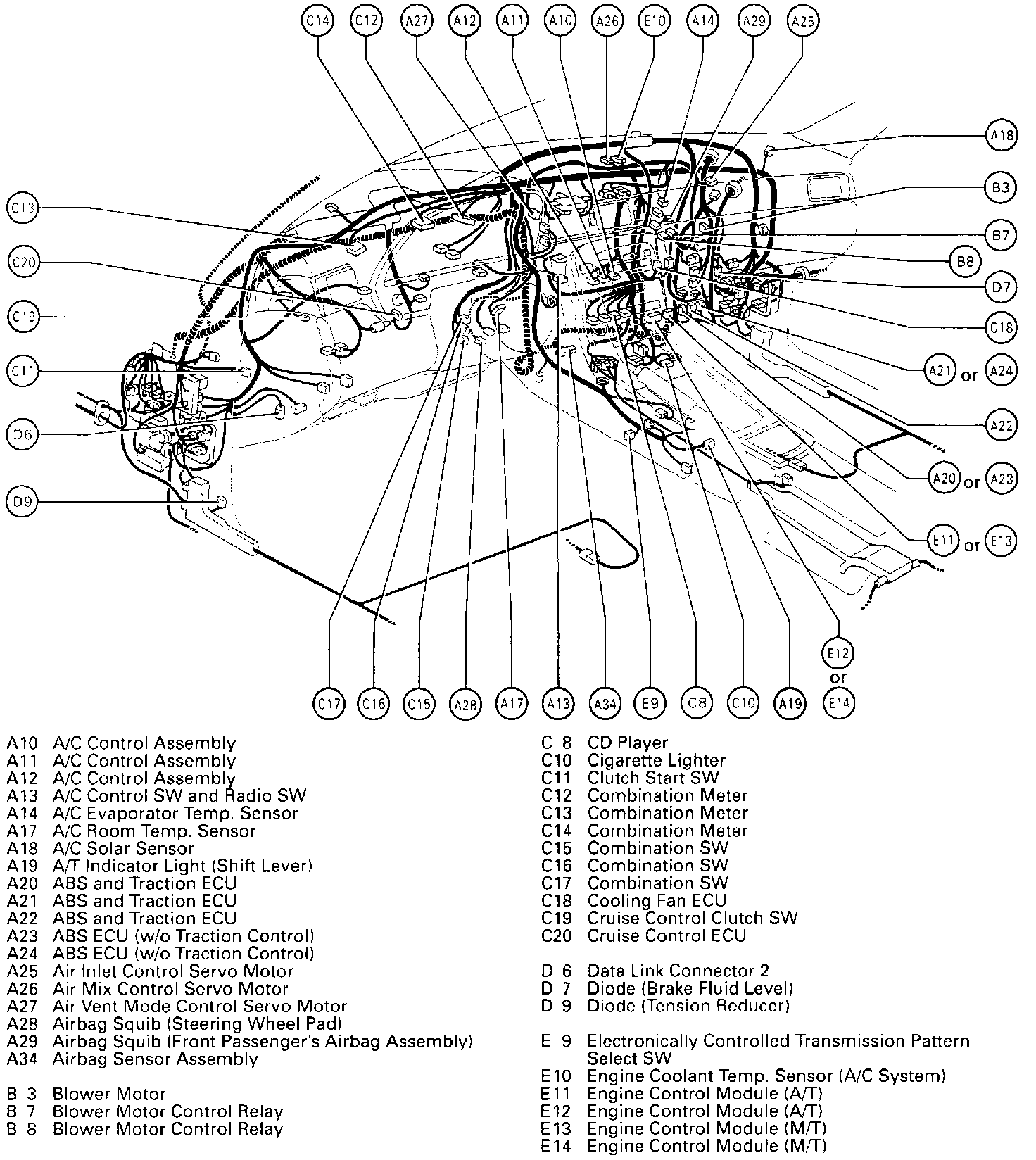

Position Of Part In Instrument Panel (Part 1 Of 2) (Fig 30):
FIG 30
