Headlight Control Relay Circuit

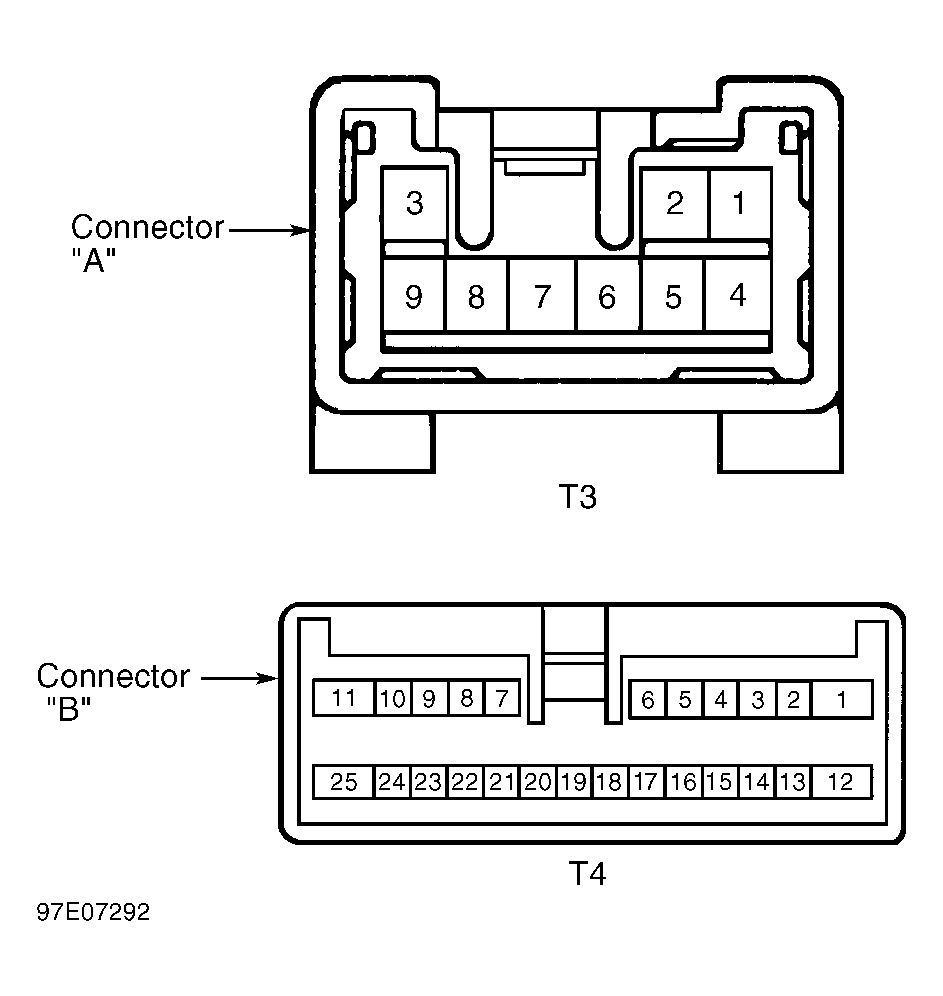

Turn ignition off. Disconnect ECU connectors. Using voltmeter connected to ground, backprobe ECU connector T3 terminal No. 8. See Figure. If voltage reading is not 10-14 volts, repair wiring between ECU and headlight control relay. If voltage reading is 10-14 volts, check ECU. See PIN VOLTAGE TESTS . If found to be defective, replace ECU and retest system.
